Small Size Durable Single Gas Detector IP68 Anti Corrosion Design

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/EMC/IECE
Model Number: Minimeta
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 3000 pieces per month
Detail Information
Gas Type: CO Weight: 125g
Alarm Type: Sound, Light, Vibration Alarm, High And Low Alarm Values Can Be Set By Yourself Measure Range: 0-500
Size: 90*60*33mm Humidity: 0-95%RH
Sampling Method: Diffussion Operating Temperature: -20℃~50℃
Zero Drift: 0.1ppm Response Time: ≤30s(T90)
Protection Class: IP68 Detection Principle: Electrochemical Principle
Warranty: One Year Warranty
High Light:

Durable Single Gas Detector IP68

,

0.1ppm Single Gas Detector

,

CO Gas Detector IP68


Product Description

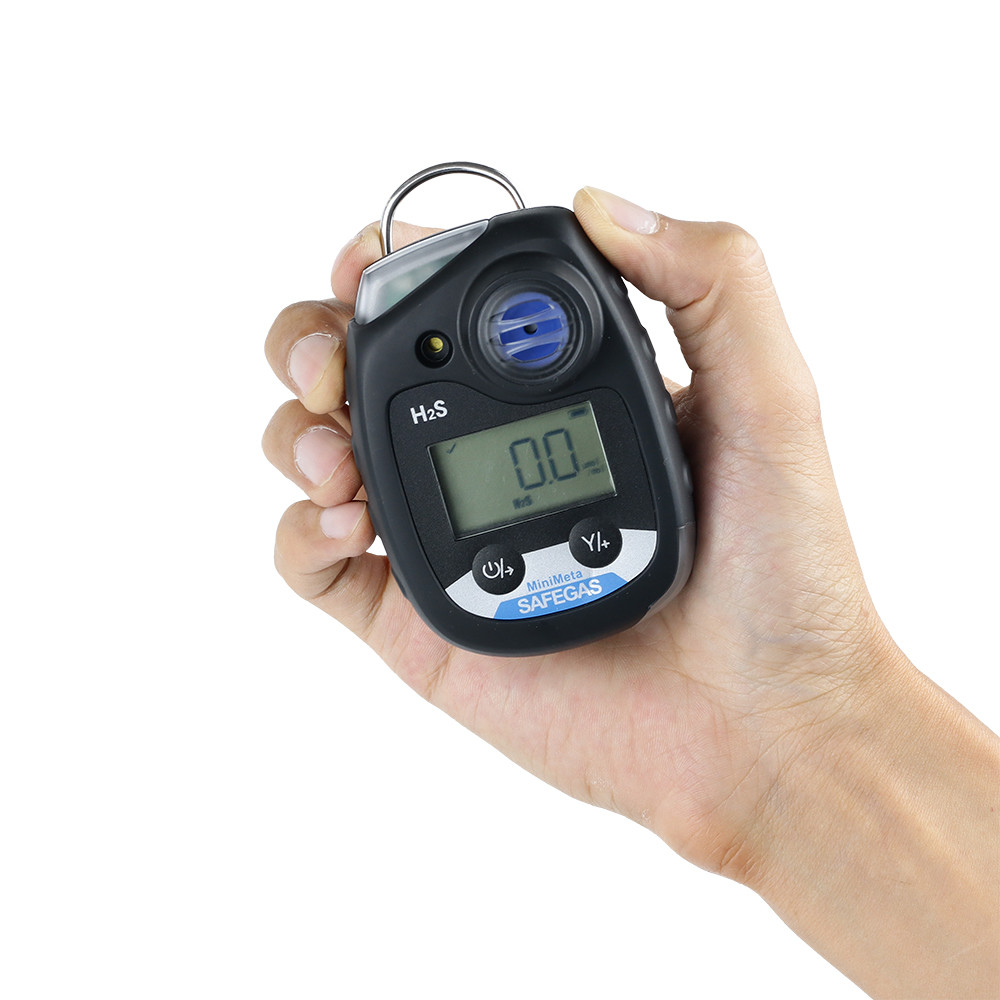

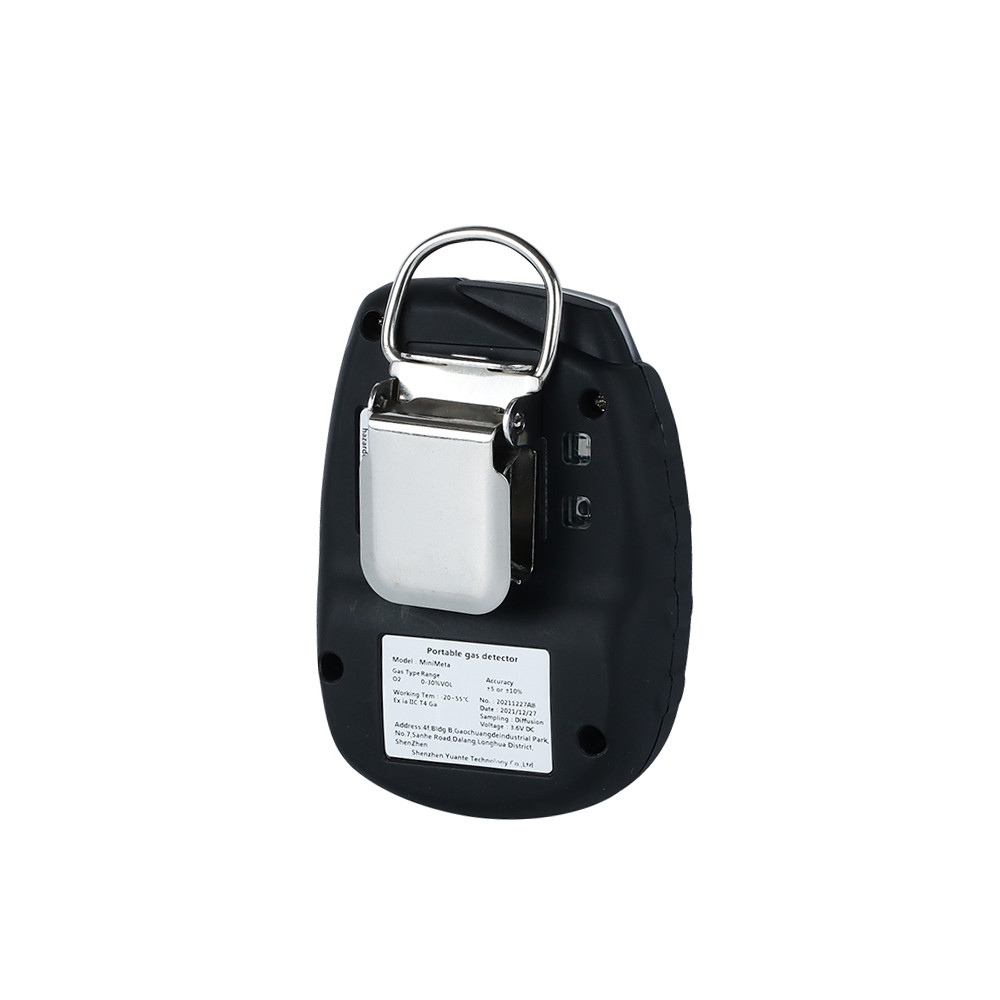

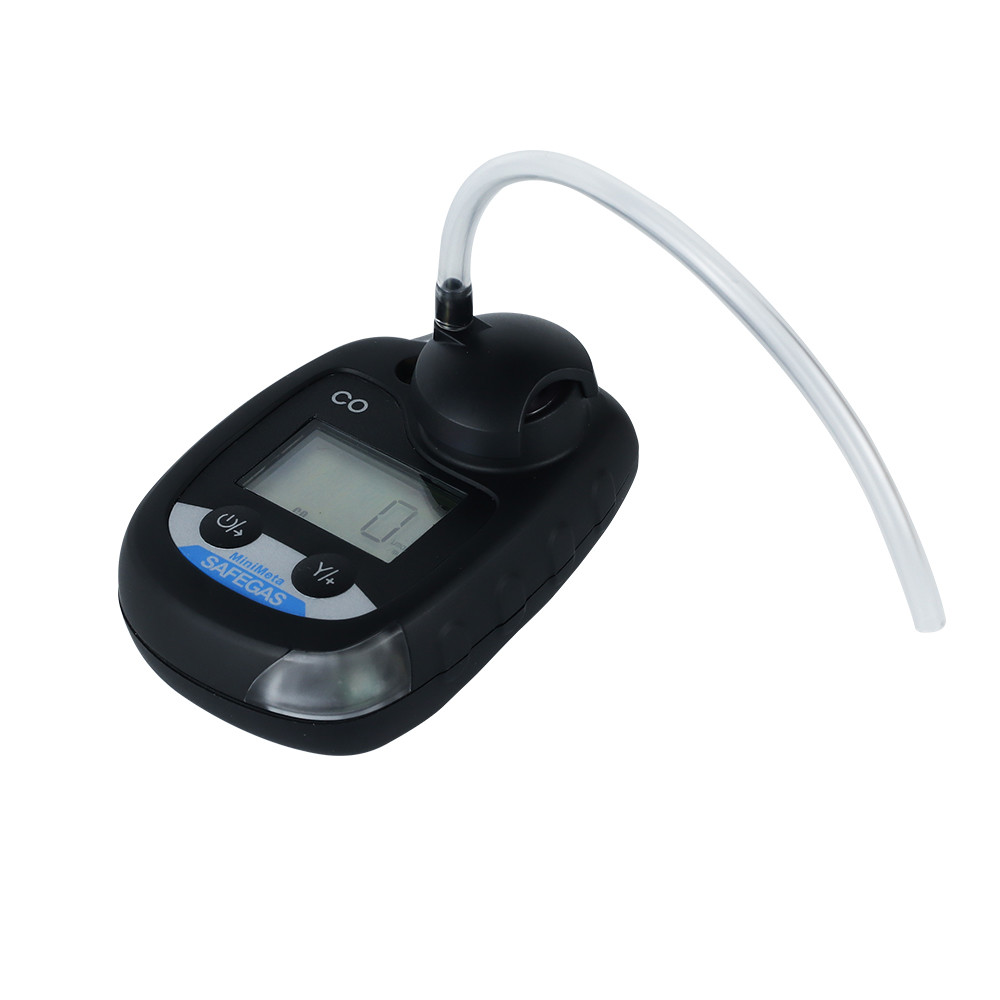

Small Size Durable Single Gas Detector IP68 Anti Corrosion Design



Portable anti-corrosion design CO single small size durable gas detector IP68



Product overview

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It Can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is d esigned to offer a low long-term ownership cost of a gas monitoring system.



Product advantage

1. The minimeta gas detector has IECEX/ATEX/EMC certificates, which has received international safety certification.

2. Our product is with no need battery charge and calibration, you can use it more than 2 years and then using another replaceable battery,

3. The sensors of minimeta are all imported from international top brands, such as Alpha, City, Icon, Honeywell and so on.

4. We provides 1 year warranty for this gas detector, you can contact us if you have any question within usage.

5.Minimeta is a single gas detector, It is the smallest size and lightest of all gas detectors, you can take it in your clothes with its back lip when detected.



Specification

Gas Type CO
Detection principle Electrochemisty
Sampling Method Diffusion
Measure Range 0-500PPM
Resolution 0.1PPM
Response time ≤30s(T90)
Precision ≤± 3% F.S.
Alarm mode
Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type Low alarm, high alarm, STEL, TWA, low battery
Power supply mode 3.6V dry battery (non-rechargeable)
Explosion-proof grade ExiaIICT4Ga
Protection class IP68
Executive standards GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature -20℃~55℃
Working humidity 0-95%RH (non-condensing)
Working air pressure 86~106kpa
Dimensions 90*60*33mm
Weight 125g


Standard accessories

1 Calibration cap, 1 user manual, 1 calibration certificate, 1 device.





What services provided for our customers?
1. The product can be guaranteed to repair within one year after sale.

2. We will debugg all  gas detectors before shipment.

3. You can contact us 24 hours for technical support by phone and e-mail.

4. We would put the detailed machine manual and software manual with products for our customers to use correctly.



Industry Application
Chemical industry, environmental protection company, animal husbandry, mining, electric power engineering, municipal
