| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX,IECEX |
| Model Number: | SKY3000 |
| Minimum Order Quantity: | 1 |
| Price: | 500-2000 US$ |
| Packaging Details: | High-grade aluminium alloy carrying case |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, Western Union,Credit card |
| Supply Ability: | 1000pcs/day |
| Testing Principle: | Catalytic Combustion, Electrochemistry | Target Point Calibration: | Multipoint Calibration |
|---|---|---|---|
| Mode: | Pumping Suction | Sensor: | Imported Sensor |
| Transmission: | LORA,4G,Bluetooth | Weight: | 365g |
| Size: | 157*84.5*59.5mm | Packing Material: | Aluminium Alloy |
| Certificate: | CPA | Gas Type: | O3 Ozone |
| High Light: | CPA Single Gas Detector,SKY3000 Single Gas Detector,SKY3000 Toxic Gas Detector |
||

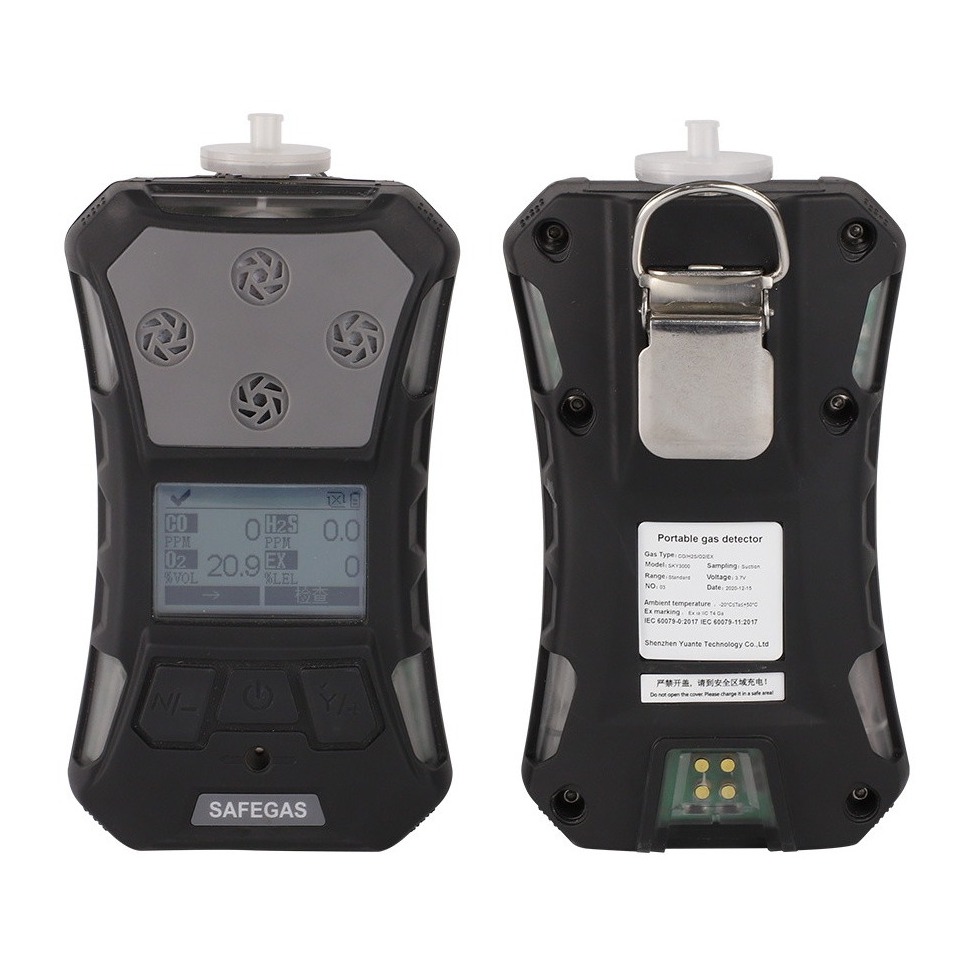

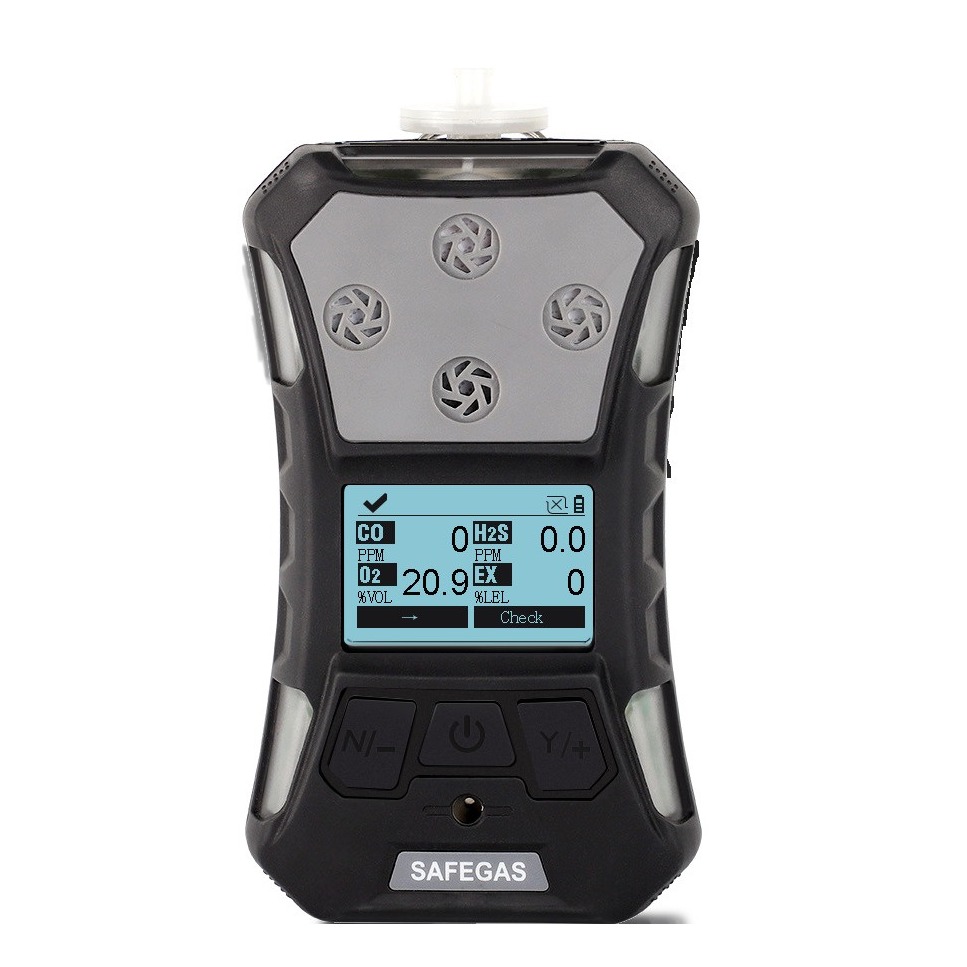

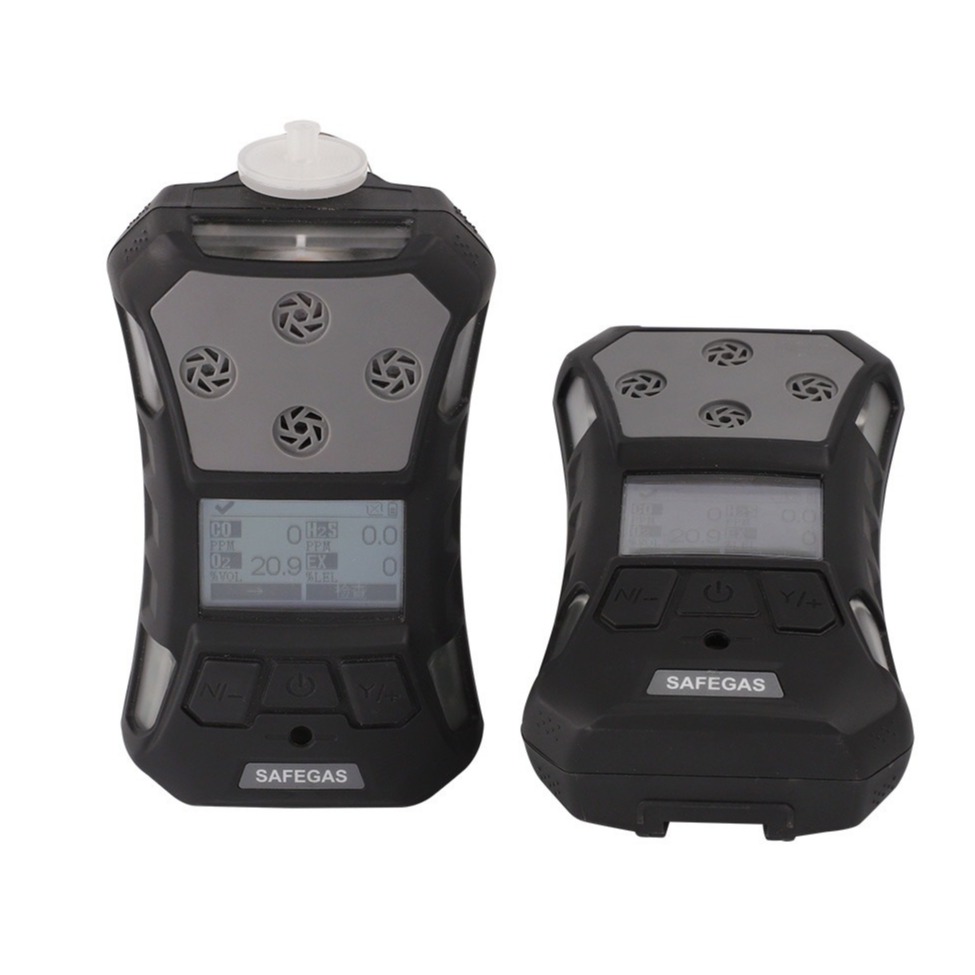

SKY3000 Toxic O3 Ozone Single Gas Detector With Strict CPA Certification
Product overview
SKY3000 series is a high-performance portable gas detector that can detect Ozone(O3) gas and has man down alarm function. The device has humanized operation functions such as one-key security detection, one-key storage, automatic image flipping, as well as the man down alarm function.; With optional Bluetooth transmission function, allowing safety personnel to obtain real-time data and the alarm status. It has obtained international IECEX, ATEX explosion-proof certification and Chinese explosion-proof certification; As it passed the antistatic test, and the protection level reaches IP67; With safer product design and the module design which makes the detection faster, and the compact ergonomic design makes the device easy carrying; What's more, the device is also a suction and diffusion dual-purpose instrument. The instrument is mainly working in suction mode. When the air pump fails or in special emergency situations, it can automatically switch to the diffusion sampling method, thereby improving the protection to a new Level.
The explosion-proof mark of the SKY3000 series is Ex ia IIC T4 Ga, which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades A, B, and C and temperature group T1~T4.
Specificiation
| Sampling method | pump suction & diffusion dual-use type |
| Gas type | Customized |
| Measure range | Customized |
| Response time | ≤30 seconds |
| Precsiion | ≤±2%F.S |
| Language | English |
| Automatically test and calibrate after power-on | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched |
| Disaply | monochrome graphics (160 x96) ,screen can be automatically flipped |
| Backlight | The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
| Data record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2200mA |
| Working hours | More than 15 hours in continuous pumping mode |
| Charger | Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-proof grade | IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga |
| Certification (EU regulations) |
2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX) |
| Protection grade | IP67 |
| Working temperature | -20ºC~+50ºC |
| Humidity | 0~90%RH(no condensation) |
| Environmental pressure | 86~106Kpa |
| Size | 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
| Weight | 365g (including battery, belt clip and filter) |
Package
FAQ
1. Can I have a sample order?
Yes, we welcome sample order to test and check quality
2. What is the lead time
Usually, we will ship in 3 days, for big quantity orders, the delivery time is negotiable.
3. Do you have any MOQ limit?
We don't have a MOQ limit, 1pc is also welcome
4. Do you offer guarantee for the gas detectors?
Yes, we offer one year guarantee for all the detectors, we also provide life-long paid service. As an experienced manufacturer, you can rest assured of the quality and after-sale service.
