| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX,IECEX |
| Model Number: | SKY3000 |
| Minimum Order Quantity: | 1 pcs |
| Price: | 500-2000 US$ |
| Packaging Details: | High-grade aluminium alloy carrying case |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union,Credit card |
| Supply Ability: | 1000pcs/day |
| Target Calibration: | Multipoint Calibration | Testing Principle: | Catalytic Combustion, Electrochemistry |
|---|---|---|---|
| Sensor: | Imported Sensor | Mode: | Pumping Suction |
| Weight: | 365g | Size: | 157*84.5*59.5mm |
| Transmission: | LORA,4G,Bluetooth | Gas Type: | CH2O |
| Certificate: | CPA | Packing Material: | Aluminium Alloy |
| High Light: | CH2O Single Gas Detector,IECEX Single Gas Detector,Formaldehyde Gas Leak Detector |
||

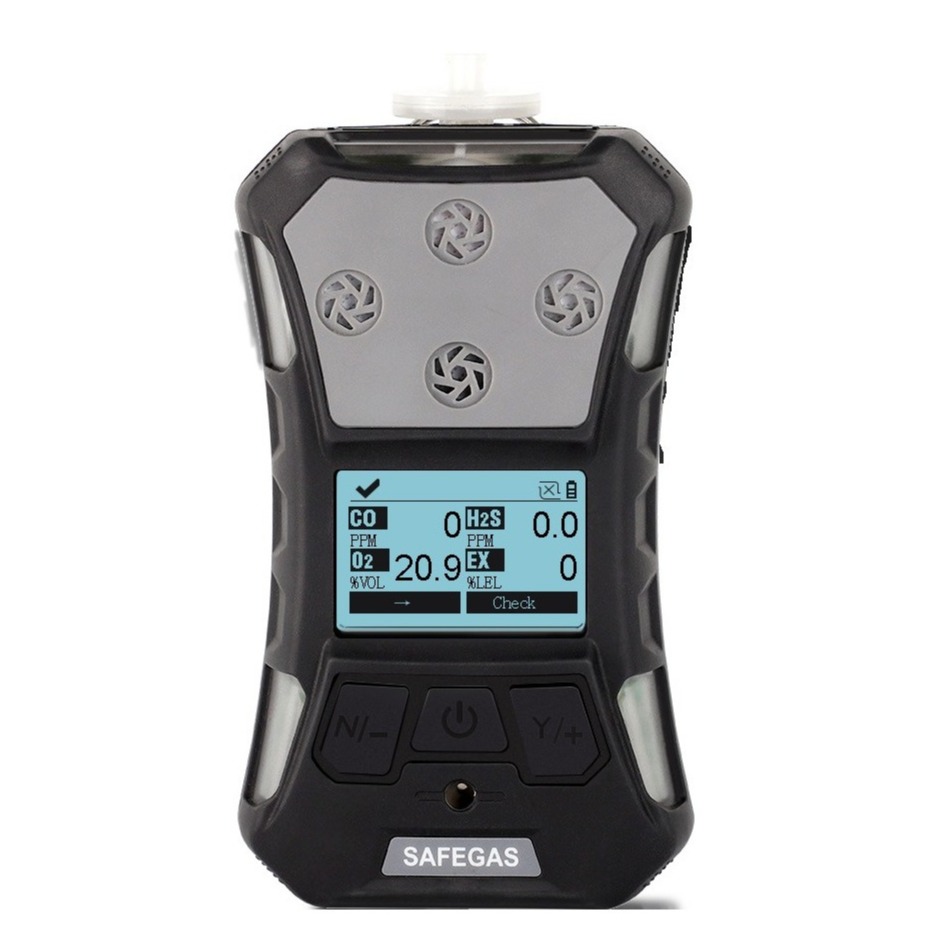

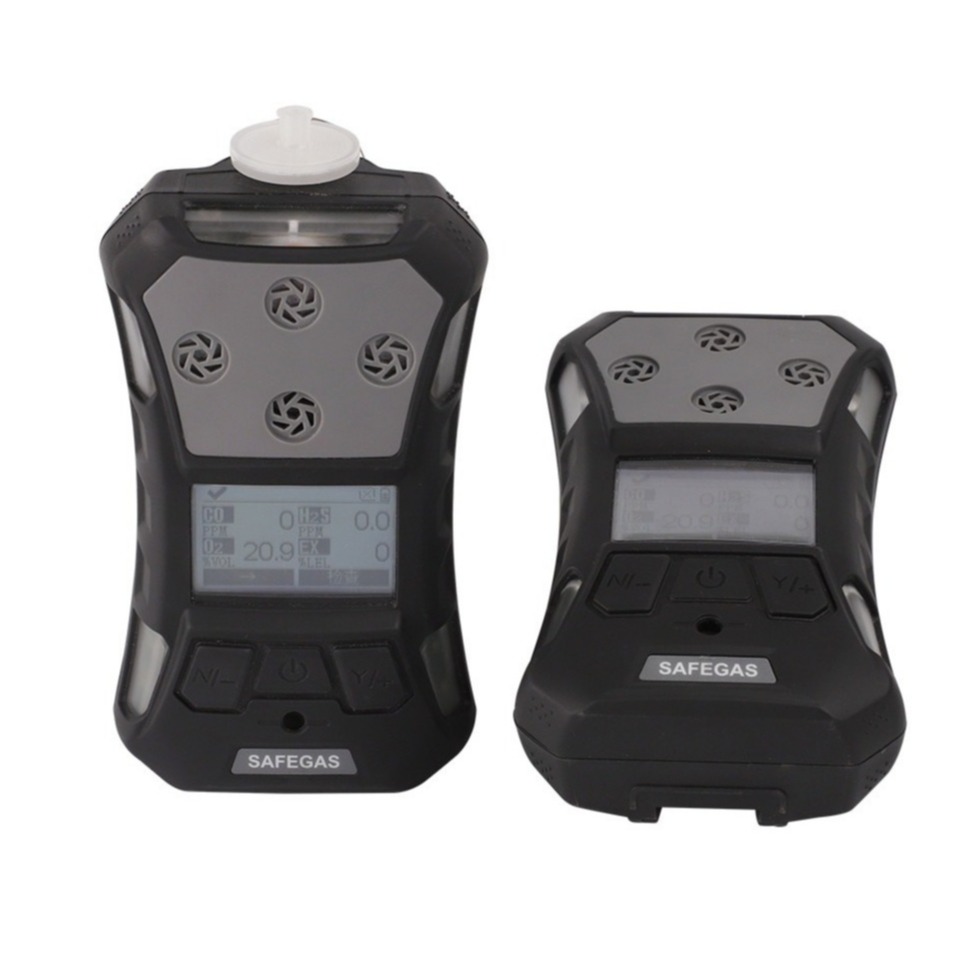

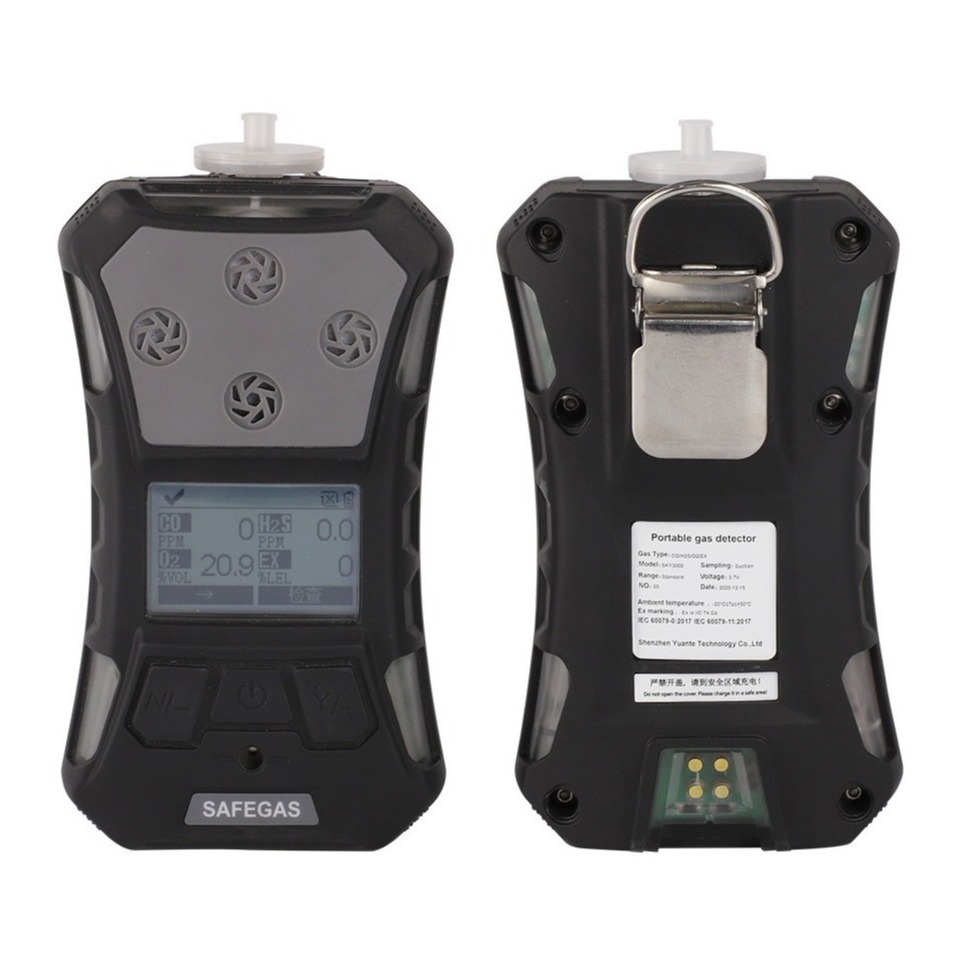

CH2O Formaldehyde Single Gas Detector With Man Drop Alarm Function
Product overview
SKY3000 series is a high-performance portable gas detector, which can detect single gas like CH2O(including mutiple gases), and has a man-drop alarm function. The device has humanized operation functions such as one-key safety detection, one-key storage, automatic image flip, and human down alarm; Bluetooth transmission function is optional, allowing security personnel to obtain data and alarm status in real time. Obtained international IECEX, ATEX explosion-proof certification and China explosion-proof certification; passed the anti-static test, and the protection level reached IP67; adopted safer product design and module design to make detection faster, compact ergonomic design, making the device easy to carry; In addition, the device is also a dual-purpose instrument for suction and dispersal. The instrument mainly works in suction mode. In the event of pump failure or special emergencies, automatic switching to diffusion sampling takes protection to a new level.
The explosion-proof mark of SKY3000 series is Ex ia IIC T4 Ga, which is suitable for the explosive gas mixture zone 0, zone 1 and zone 2 of factory A, B, C, temperature group T1~T4.
Specificiation
| Sampling method | pump suction & diffusion dual-use type |
| Gas type | Customized |
| Measure range | Customized |
| Response time | ≤30 seconds |
| Precsiion | ≤±2%F.S |
| Language | English |
| Automatically test and calibrate after power-on | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched |
| Display | monochrome graphics (160 x96) ,screen can be automatically flipped |
| Backlight | The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
| Data record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2200mA |
| Working hours | More than 15 hours in continuous pumping mode |
| Charger | Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-proof grade | IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga |
| Certification (EU regulations) |
2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX) |
| Protection grade | IP67 |
| Working temperature | -20ºC~+50ºC |
| Humidity | 0~90%RH(no condensation) |
| Environmental pressure | 86~106Kpa |
| Size | 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
| Weight | 365g (including battery, belt clip and filter) |
