| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX,IECEX |
| Model Number: | SKY3000 |
| Minimum Order Quantity: | 1 pcs |
| Price: | 500-2000 US$ |
| Packaging Details: | High-grade aluminium alloy carrying case |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union,Credit card |
| Supply Ability: | 1000pcs/day |
| Size: | 157*84.5*59.5mm | Weight: | 365g |
|---|---|---|---|
| Packing Material: | Aluminium Alloy | Certificate: | CPA |
| Gas Type: | C2H4O | Transmission: | LORA,4G,Bluetooth |
| Target Point Cal: | Multipoint Calibration | Sensor: | Imported Sensor |
| Mode: | Pumping Suction | Testing Principle: | Catalytic Combustion, Electrochemistry |
| High Light: | C2H4O Ethylene Oxide Detector,CPA Ethylene Gas Detector,Multipoint Calibration C2H4O Detector |
||

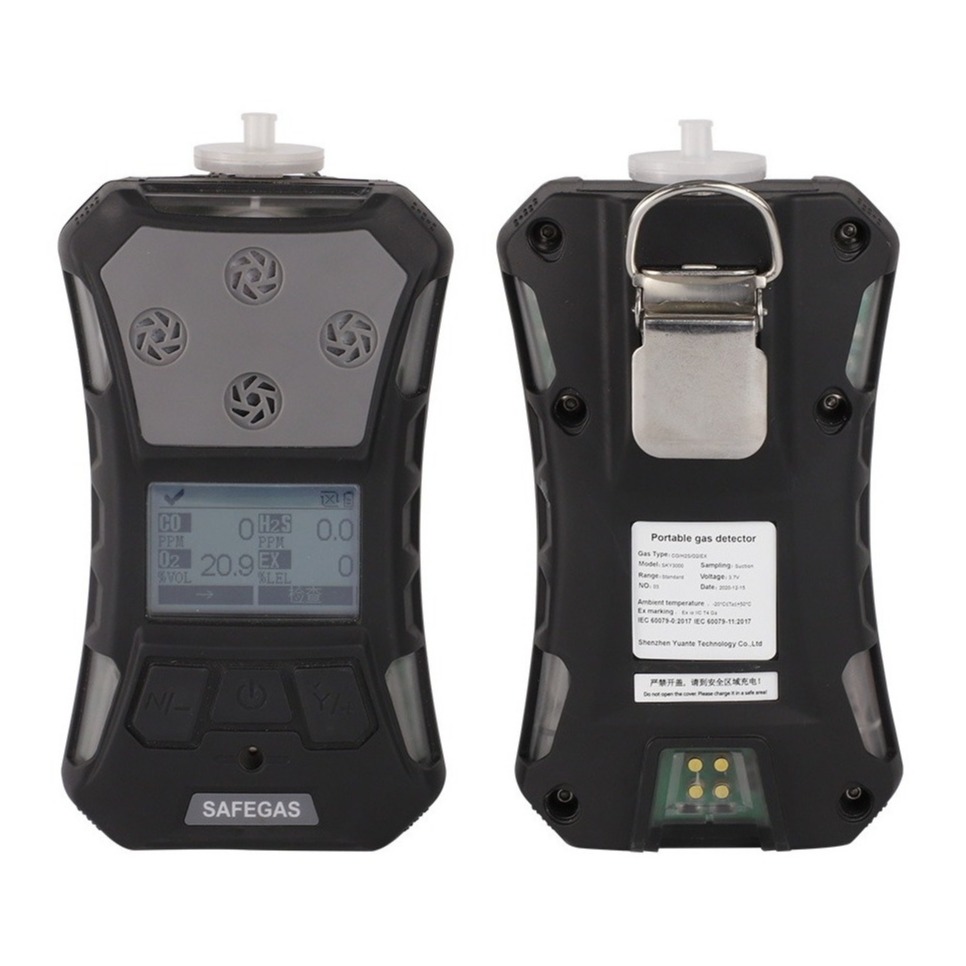

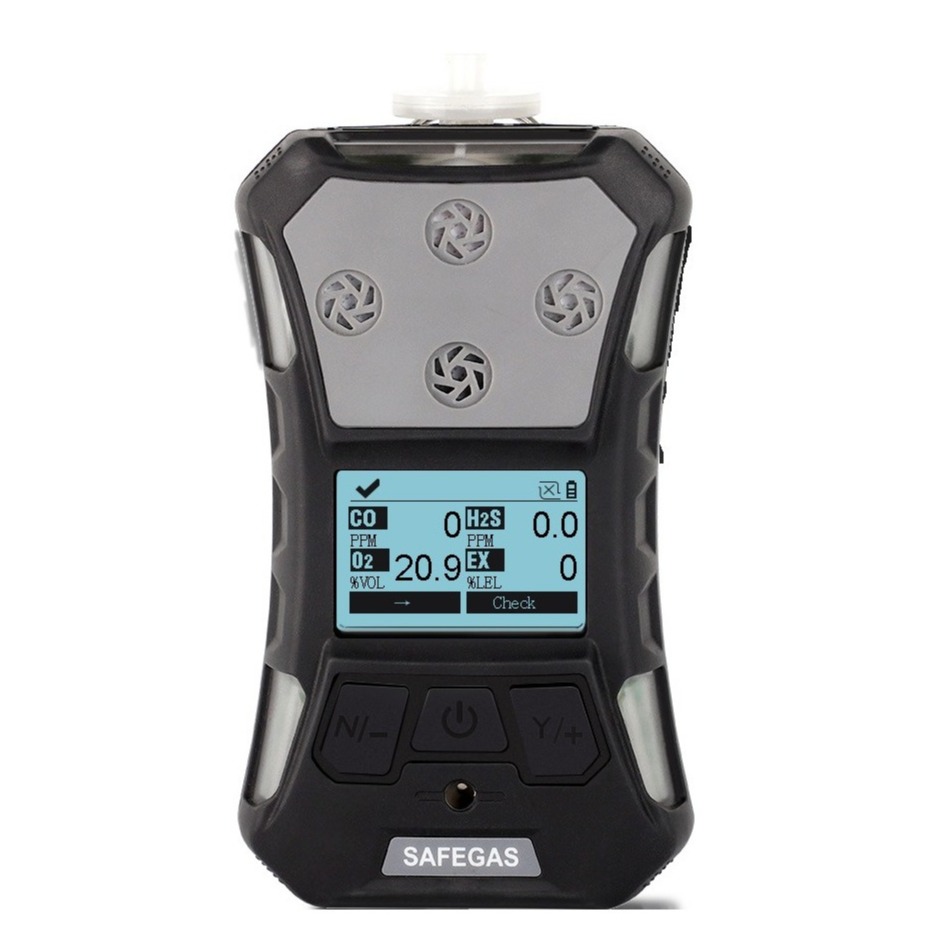

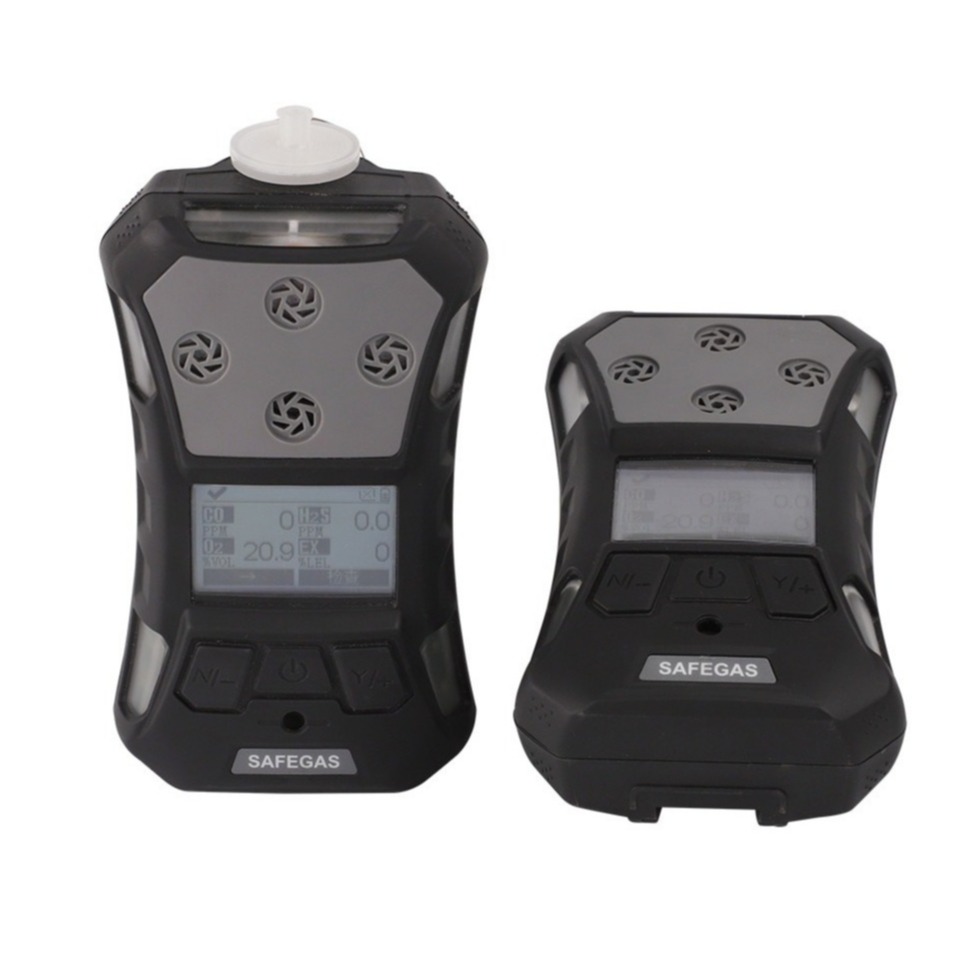

EO C2H4O Ethylene Oxide Detector With Electrochemical Sensor
The SKY3000 Series is a high-performance portable gas detector that can detect Ethylene Oxide gas(C2H4O) with manual alarm function. The device has one key safety detection, one key storage, image automatic turnover and other humanized operation functions, and has the reverse person alarm function. ; An optional Bluetooth transmission feature enables security personnel to obtain real-time data and alarm status. Has obtained international IECEX, ATEX explosion-proof certification and China explosion-proof certification; Passed the antistatic test, the protection level reached IP67; Safer product design and module design to enable faster detection, compact ergonomic design to make the equipment easy to carry; More importantly, the device is also a suction and diffusion instrument. The instrument mainly works in suction mode. When the air pump fails or in a special emergency, it can automatically switch to the diffusion sampling method, thus raising the protection to a new level.
The explosion-proof mark of SKY3000 series is Ex ia IIC T4 Ga, which is suitable for explosive gas mixtures in Zone 0, Zone 1 and Zone 2 of the factory. The grades are A, B and C, and the temperature groups are T1~T4.
| Sampling method | pump suction & diffusion dual-use type |
| Gas type | C2H4O(Customized) |
| Measure range | 0-10/50PPM(Customized) |
| Response time | ≤30 seconds |
| Precsiion | ≤±2%F.S |
| Language | English |
| Automatically test and calibrate after power-on | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched |
| Disaply | monochrome graphics (160 x96) ,screen can be automatically flipped |
| Backlight | The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
| Data record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2200mA |
| Working hours | More than 15 hours in continuous pumping mode |
| Charger | Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-proof grade | IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga |
| Certification (EU regulations) |
2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX) |
| Protection grade | IP67 |
| Working temperature | -20ºC~+50ºC |
| Humidity | 0~90%RH(no condensation) |
| Environmental pressure | 86~106Kpa |
| Size | 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
| Weight | 365g (including battery, belt clip and filter) |
Do you have any identification?
Yes, we have passed CE, IECEX, ATEX, CNEX, ISO9001, FCC, and RoHS certifications.
Are you a factory or a trading company?
We are a factory with our own production base, technical team, and sales center. Therefore, we can provide you with a one-stop solution.
Can we make a trial order first?
Yes, we can provide sample orders. The minimum order quantity is 1 piece
How do you arrange shipment?
We will use DHL, FEDEX, UPS, and other methods to send according to your needs.
