| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX,IECEX |
| Model Number: | SKY3000 |
| Minimum Order Quantity: | 1 pcs |
| Price: | 500-2000 US$ |
| Packaging Details: | High-grade aluminium alloy carrying case |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union,Credit card |
| Supply Ability: | 1000pcs/day |
| Test Principle: | ,Electrochemistry,Catalytic Combustion | Target Point Calibration: | Multipoint Calibration |
|---|---|---|---|
| Detect Mode: | Pumping Suction | Weight: | 0.365kg |
| Testing Gas Type: | Ammonia (NH3) | Transmission: | Bluetooth,LORA,4G |
| Package Material: | Aluminium Alloy | Certification: | CPA |
| High Light: | Ammonia NH3 Single Gas Detector,Safegas Single Gas Detector,Pump Suction NH3 Gas Detector |
||

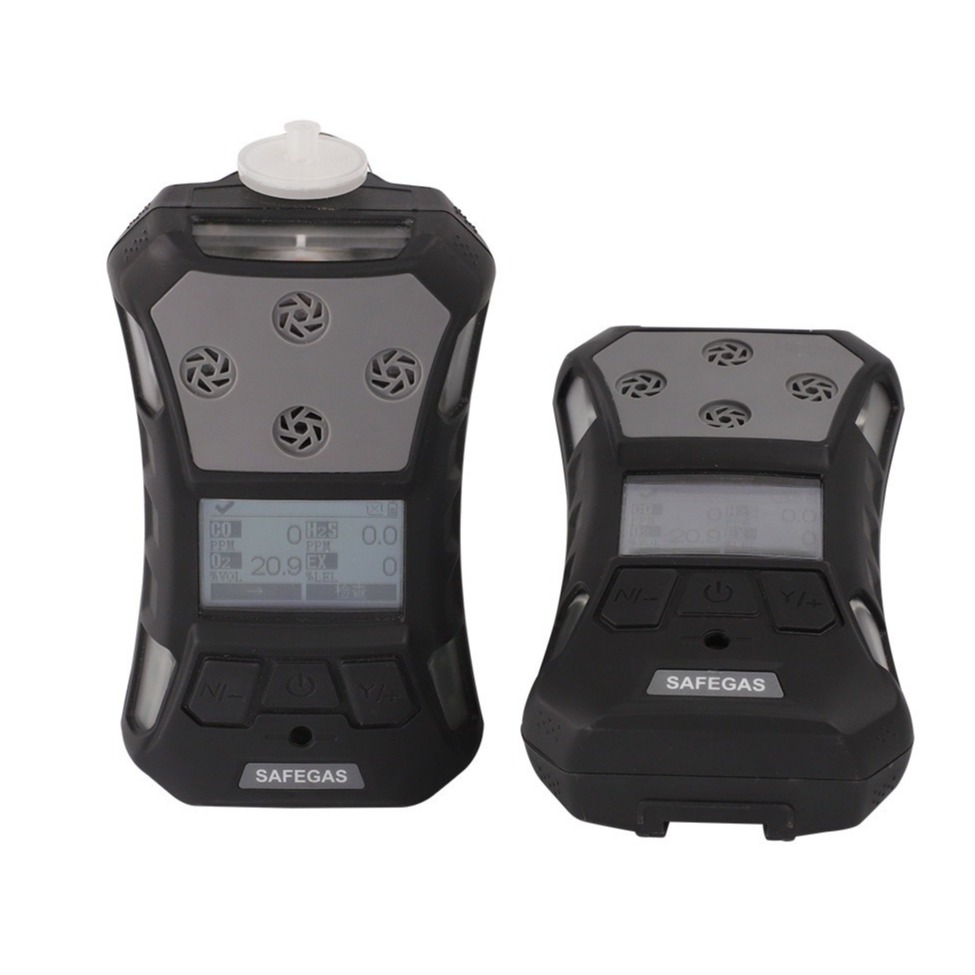

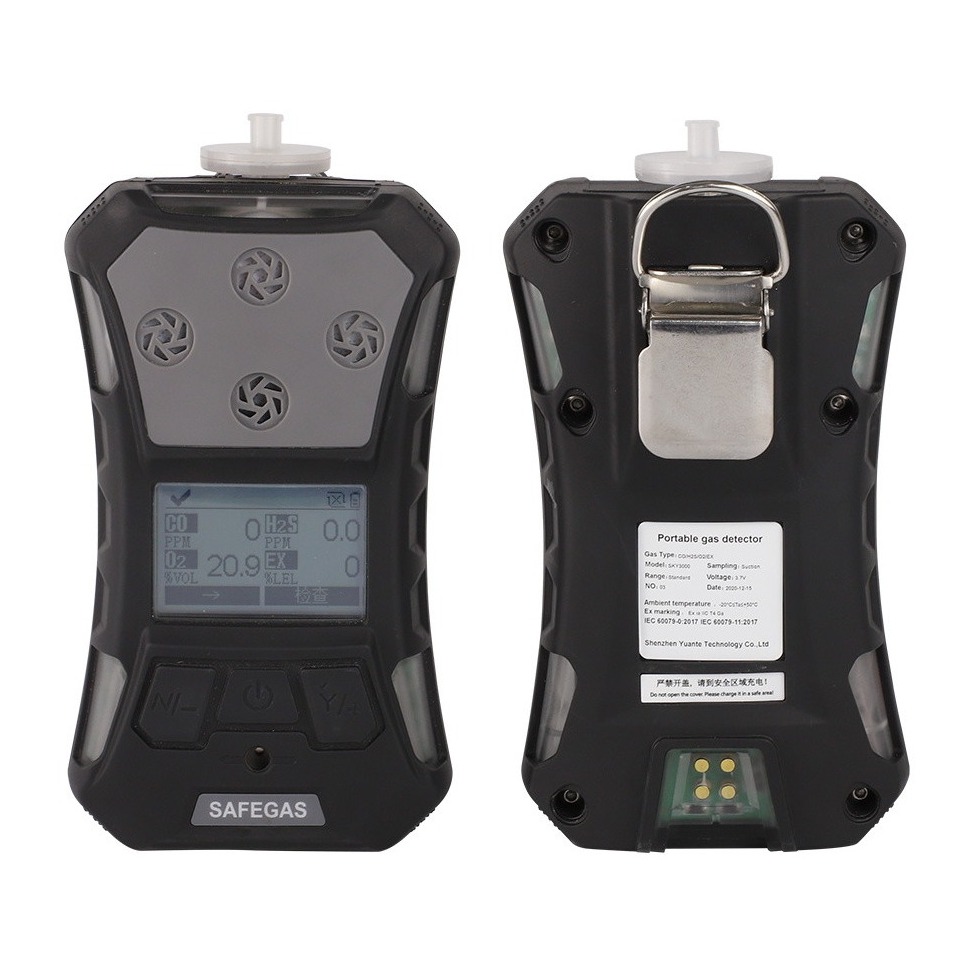

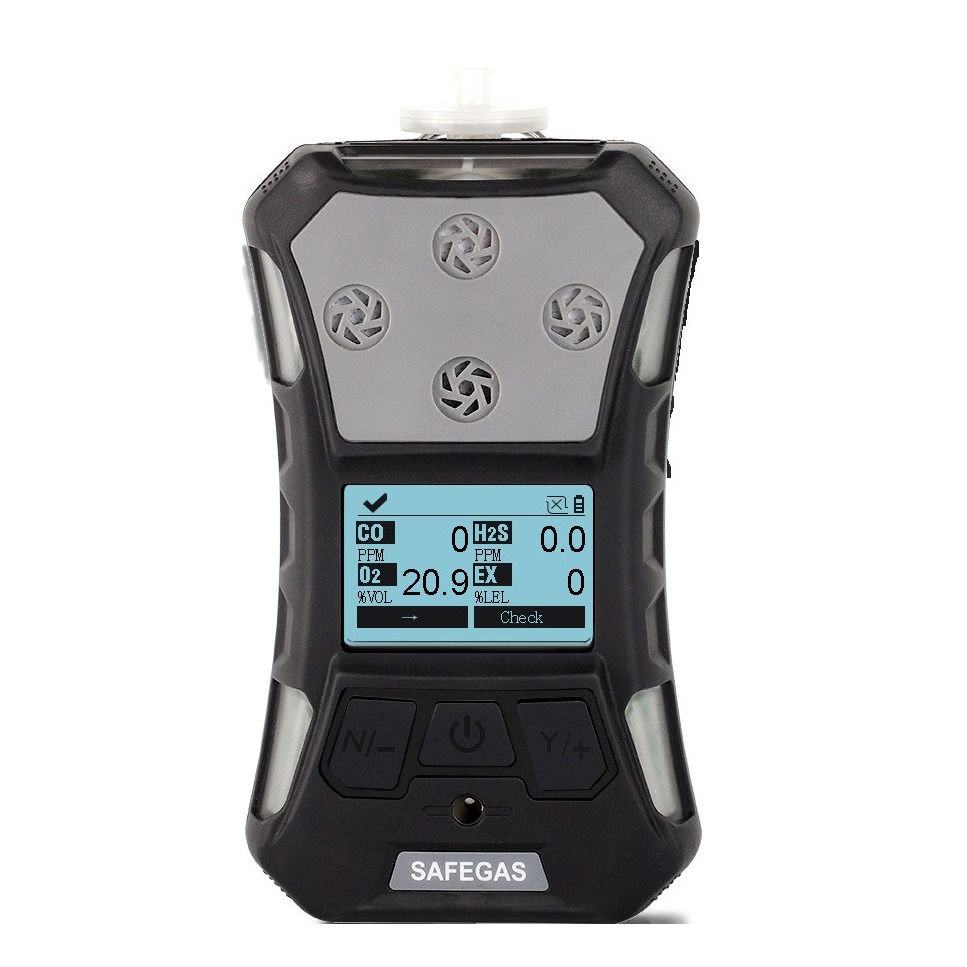

Safegas Portable Ammonia NH3 Single Gas Detector With Pump Suction
SKY3000 Series is a portable gas detection and alarm device with pump, which can detect various toxic and harmful gases including oxygen, combustible gases including carbon monoxide, hydrogen sulfide, TVOC and ammonia. The detection and alarm device has the functions of one-key safety monitoring, one-key opening of storage, automatic image rollover, fall alarm, etc. The optional LORA,WIFI, Bluetooth wireless transmission function enables the security personnel to obtain the instrument data and alarm status in real time.
The gas detection and alarm instrument has obtained IECEx,ATEX and China explosion-proof certification at the same time. The explosion-proof level can reach EX ia IIC T4 Ga/EX ia I Ma, which is suitable for the detection in area 0, Area 1 and coal mine. The instrument has passed the antistatic test and the protection level has reached IP67
| Sampling method | pump suction & diffusion dual-use type |
| Gas type | Customized |
| Measure range | Customized |
| Response time | ≤30 seconds |
| Precsiion | ≤±2%F.S |
| Language | English |
| Automatically test and calibrate after power-on | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched |
| Display | monochrome graphics (160 x96) ,screen can be automatically flipped |
| Backlight | The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
| Data record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2200mA |
| Working hours | More than 15 hours in continuous pumping mode |
| Charger | Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-proof grade | IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga |
| Certification (EU regulations) |
2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX) |
| Protection grade | IP67 |
| Working temperature | -20ºC~+50ºC |
| Humidity | 0~90%RH(no condensation) |
| Environmental pressure | 86~106Kpa |
| Size | 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
| Weight | 365g (including battery, belt clip and filter) |
