| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-95H-A | Detected Gas: | O2, N2, CO2, EX, VOC |
|---|---|---|---|
| Sensor Principle: | Specified According To Application | Measure Range: | Specified According To Application |
| Resolution: | Specified According To Application | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 3 KG |
| Product Size: | 180*150*90mm | Warranty: | 1 Year |
| High Light: | YT-95H-A Toxic Gas Monitoring System,IP65 Toxic Gas Monitoring System,VOC Poisonous Gas Detector |
||

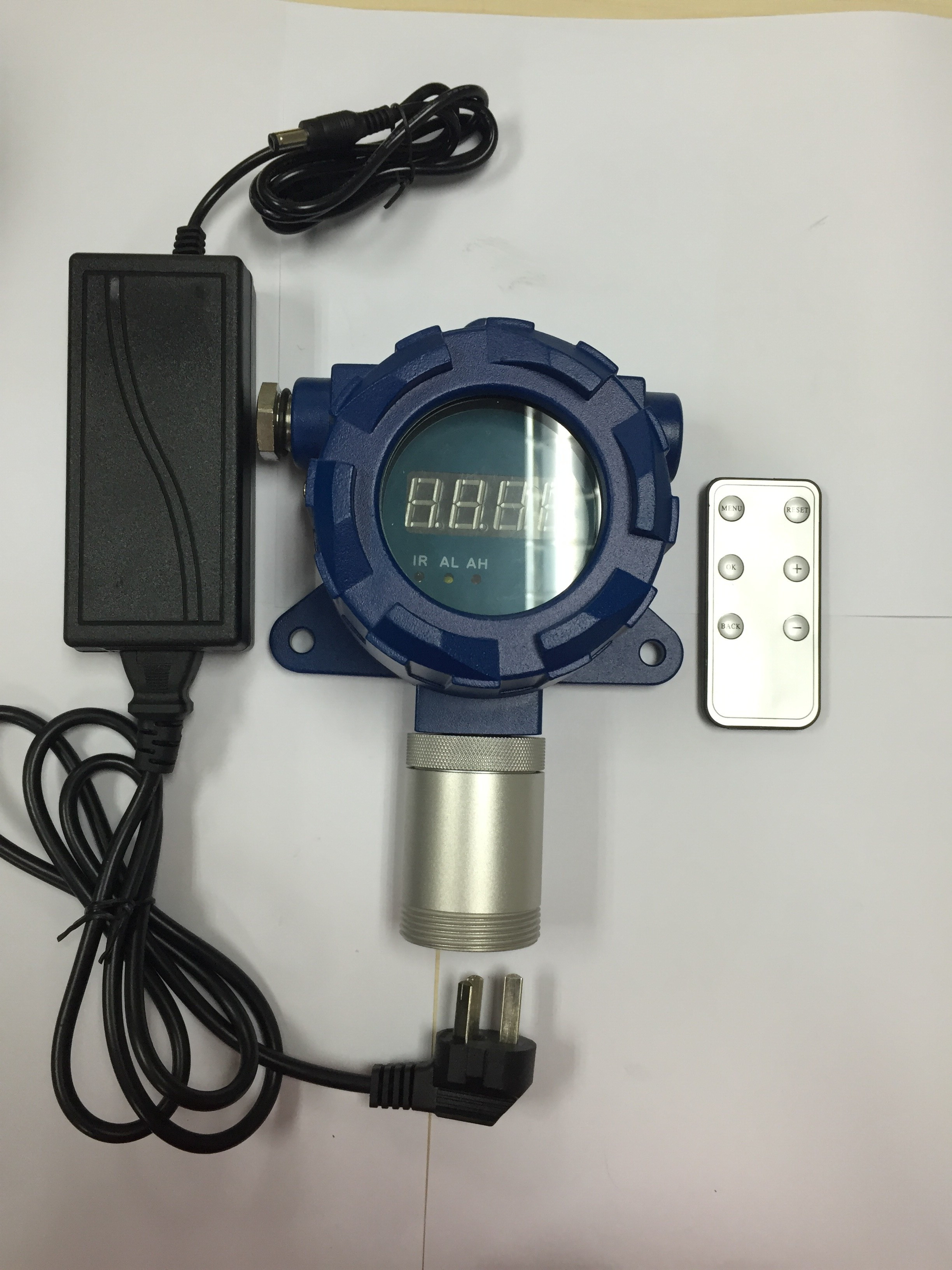

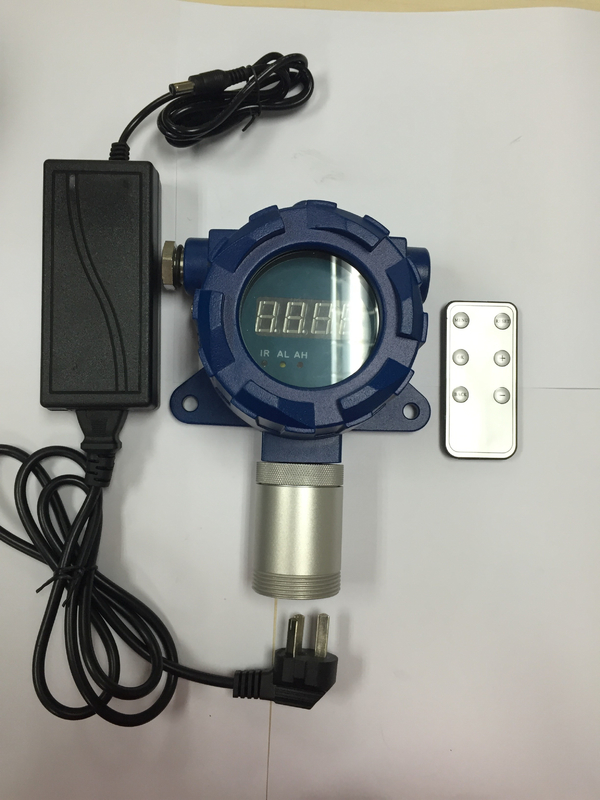

YT-95H-A Toxic Gas Monitoring System With Display And Alarm Light
YT-95H-A Gas Detector with display and alarm light Non-contacted control the device
Company advantage
A Professional: We have been focused on gas detection devices for more than 10 years and been cooperating with PB group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc famous companies. We are with rich experience to provide you professional solutions.
Product Overview
Product Features
1. Infrared ray control function, which can non-contacted control the detector. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system
2. an output one or two on-off signals, can drive ventilator or solenoid valve and other external devices
3. Two-stage alarm with sound and light, alarm point is settable
4. Use imported US/UK original sensors to keep the high precision and fast response
5. Working Voltage:12-36V DC
6. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures
7. Explosion-proof grade: II 2G Ex db IIC T6 Gb IP65
8. Monitor the CH4 Methane gas concentration in environment or pipeline and alarm
9. Case:die-cast aluminum + stainless steel (alarm light)
Specification
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FAQS
