Mini Single Gas Detector Mining H2S Gas Detector Honeywell Sensor ATEX IECEX CE IP68

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: IECEX, ATEX, ISO9001, CE
Model Number: MiniMeta
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 1 working days
Payment Terms: Credit Card, T/T
Supply Ability: 1000 pieces/week
Detail Information
Product: Mining Single Gas Detector Sampling Method: Diffusion Type
Alarm: Sound&Light&Vibration Resolution: 0.01ppm, 0.1ppm, 0.01%VOL. Resolutions Are According To Sensors.
Sensors Brand: City And Honeywell Warranty: 2 Years For H2S CO O2
Water-proof Protection: IP68 Response Time: T90<15S
Certifications: IECEX And ATEX
High Light:

Mining H2S Gas Detector

,

IP68 Single Gas Detector

,

Mini H2S Gas Detector


Product Description

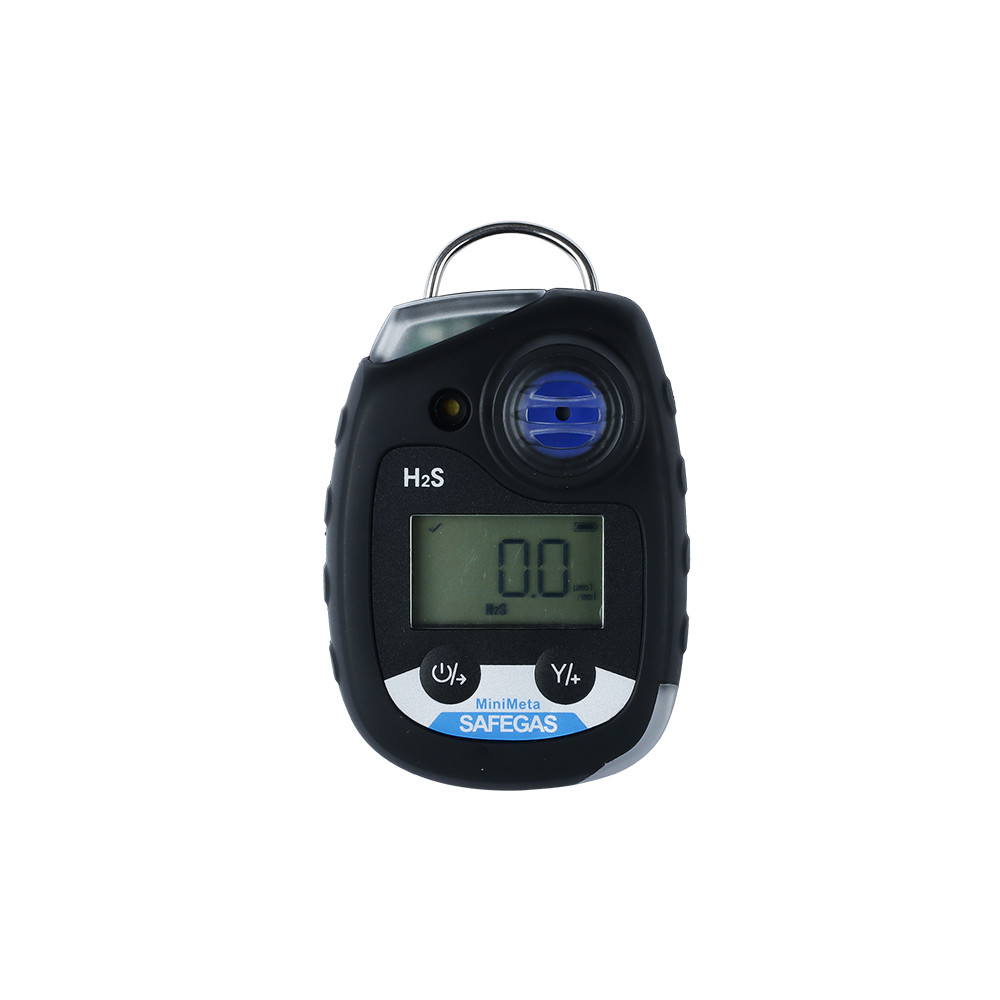

Mini Size Single Gas Detector Mining H2S Gas Detector Honeywell Sensor ATEX IECEX CE IP68





Product overview



REAL ATEX(from TUV) IECEX CE certifications
Two years warranty
IP68
Optional dock station
1-2 days delivery time
Sensor and ic are imported from US/UK, Honeywell/City
After 2 years, you can replace new sensor, battery and re-calibration, then you can use the detector again.




Product Advantages

1.Low power consumption, long standby time, up to 2 years of standby time, no need to replace the battery.
2.After 2 years, you can replace the sensor, battery, and recalibrate it, and then you can use the detector again.
3.Equipped with self checking function, automatic self checking can improve safety.
4.The ultra-high buzzer sounds an alarm, with two bright red LEDs emitting up and down alarms, and a triple alarm of sound, light, and vibration to remind workers.
5.High point alarm, low point alarm, TWA, STEL multiple alarm types, users can adjust alarm setpoints as needed throughout the entire lifecycle.
6.Protection level IP68, splash proof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design.
7.Compact and lightweight design, two key operation, no need for extensive training.
8.Reasonable price and low cost of ownership.
9.Small size, light weight, and easy to carry.
10.The shell is made of high-strength materials, designed specifically for various harsh environments, making it comfortable and durable.
11.Optional dock and pump testing function


Specificiation

Detected gas:
H2S, CO, O2, SO2, NH3, H2, CL2 etc different single gases. According to customers' requirements.
Detection principle:
Electrochemical, according to gas, sensor and measure range.
Measure range:
Carbon Monoxide(CO): 0-500ppm/1000ppm/2000ppm, Hydrogen Sulfide(H2S): 0-100ppm/200ppm, Oxygen(O2): 0-25%VOL/30%VOL, SO2: 0-20ppm/0-50ppm/0-100ppm, H2: 0-1000ppm, CL2: 0-10ppm/0-20ppm/0-50ppm/0-100ppm, etc, according to customer's requirements.
Resolution:
Carbon Monoxide(CO): 1ppm, Hydrogen Sulfide(H2S): 0.01ppm, Oxygen(O2): 0.01%VOL, SO2: 0.01ppm/0.1ppm, CL2: 0.01ppm/ 0.1ppm, according to sensor and measure ranges.
Accuracy:
≤±3%F.S. (higher precision can be customized)
Response time:
≤30 seconds (T90)
Power Model:
3.6V dry battery (non-removable and rechargeable)
Display:
Gas name, concentration unit, measured value, electricity
Concentration unit:
ppm, mg/m3, %VOL, etc
Alarm mode:
Sound, light, vibration alarm, high and low alarm values can be set by yourself.
Explosion-proof grade:
IECEX ATEX(from TUV)
Protection Class:
IP68
Executive standards:
GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC
60079-11-2
Working temperature:
-20℃~55℃
Working humidity:
0-95%RH (non-condensing
Working air pressure:
86~106kpa
Language:
English
Dimensions:
90*60*33mm (length*width*thickness)
Weight:
125g


Package
Mini Single Gas Detector Mining H2S Gas Detector Honeywell Sensor ATEX IECEX CE IP68 0
Advantages of the factory:
1.Professional: Focusing on gas detection equipment for more than ten years, we have successively cooperated with well-known enterprises such as PB Group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc. We provide you with professional solutions with rich experience.
2.Innovation : Our strong R&D team (investing 40% of our revenue in research and an experienced engineering team) sets our products apart in the market.
3.Quality: sensors and ICs from top international brands are produced and tested at 100% to ensure good quality.
4.Professional technical support: Provide detailed pre-sales and after-sales technical support, without worrying about any issues during use.
5.Certificate:Has passed ATEX/IECEX/SIL/CE/CNEX/ISO9001/certification, meets government standards, and ensures your safety and health.
6.Service: We provide 24 * 7 hour service. If you have any questions, Celia will reply to you within 1 hour. At the same time, we can provide OEM services.
7.Shipping: We can ship within 2-3 days. For some mass-produced and specially customized gas analyzers, we can ship them within 7 days.
