| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-95H-F2 | Detected Gas: | F2 |
|---|---|---|---|
| Sensor Principle: | Elechrochemical(CITY Brand Sensor From UK) | Measure Range: | 0-1/10PPM |
| Resolution: | 0.001PPM, 0.01PPM | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 3 KG |
| Product Size: | 180*150*90mm | Warranty: | 1 Year |
| High Light: | EX Proof Fluorine Gas Detector,0.001PPM Fluorine Gas Detector,Fluorine Poisonous Gas Detector |
||

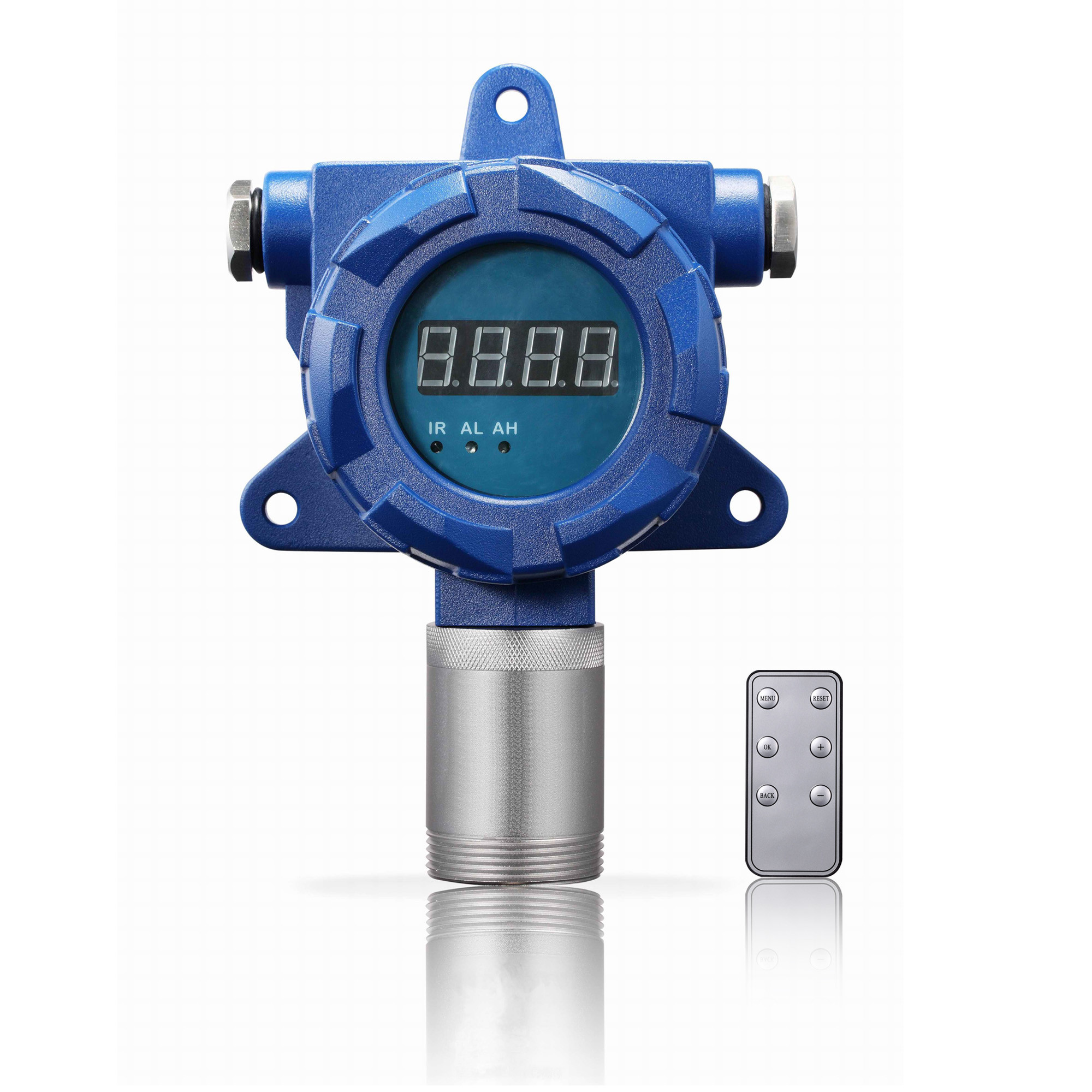

0.001PPM High Accuracy Fluorine Gas Detector With EX Proof Certified
0.001PPM High Accuracy British Sensor F2 Fluorine Gas Detector With EX-Proof Certified
Company advantage
Product Overview
The YT-95H series gas detector (with alarm light) is a wall mounted gas detector that continuously monitors gas concentrations in different occasions or pipelines for 24 hours. Adopting the world's first brand sensors, advanced micro processing technology, with data display and high/low alarm functions, fast response speed, high accuracy, and good stability. Adopting 24V DC power supply, with 4-20mA, RS485, and relay signal output. Explosion proof, suitable for various occasions.
Features
Specification
| Gas detected | F2 | ||
| Detection principle | Electrochemical | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-1/10PPM | ||
| Resolution | 0.001PPM/0.01PPM | ||
| Precision | ± 1-3% FS | ||
| Signal output | 4-20mA, 1-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display | High-light nixie tube display |
| Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light | Operating time | 24H |
| Dimensions | 180*150*90mm | Weight | ≤2kg |

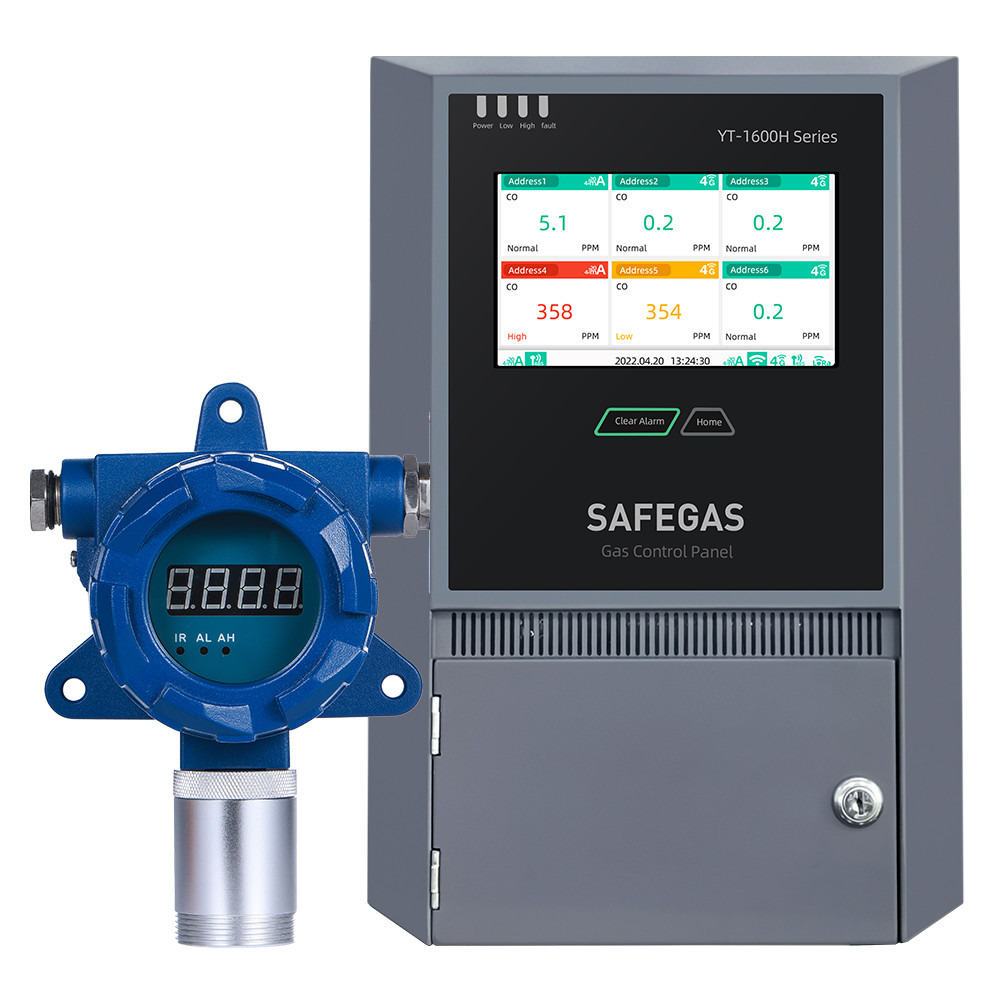

Work with control together
Other normal gas types (Gases are not listed can be customized):
FAQS
