| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Model Number: | SKY2000-N2 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T, Visa, Master Card |
| Supply Ability: | 100 pieces/week |
| Model Number:: | SKY2000-N2 | Sampling Method:: | Pumping Suction |
|---|---|---|---|
| Measure Range: | 0-99.999%VOL | Resolution: | 0.001% VOL |
| Alarm Type: | Sound, Light, Vibration | Sensor Principle: | Electrochemical |
| Color: | Yellow, Customized | Package: | Aluminum Suitcase |
| High Light: | Cylinder N2 VOL Nitrogen Gas Monitor,99.999%VOL Nitrogen Gas Monitor,N2 Nitrogen Single Gas Detector |
||

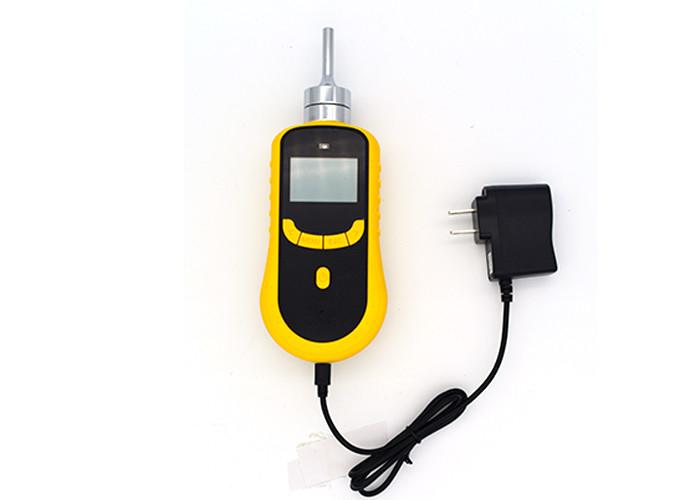

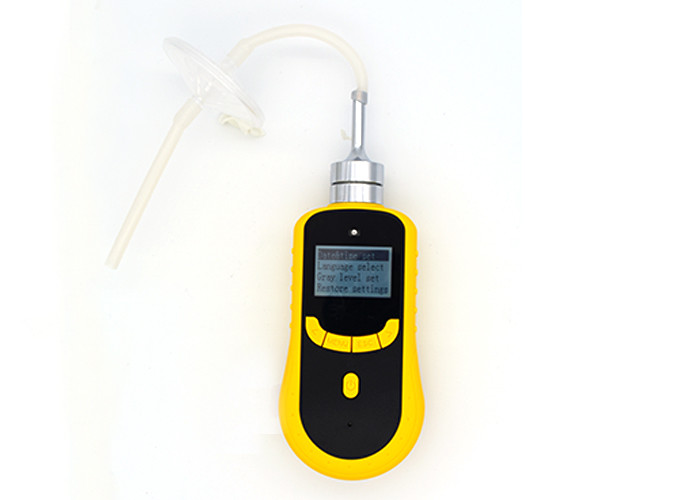

Gas Cylinder N2 Purity 99.999%VOL Nitrogen Gas Monitor With 0.001%VOL Accuracy
Why choose us?
Specifications
| Gas Detected | N2 | ||
| Detection principle | Electrochemical | ||
| Sampling Method | Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. | ||
| Measure Range | 0-99.999% VOL | ||
| Resolution | 0.001% VOL | ||
| Precision | 3% F.S. | ||
| Response Time | ≤10S | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃-50℃ | Humidity | 0-95%RH |
| Explosion-Proof | ExiaⅡCT4 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration | Operating time |
100h pump off |
| Dimensions | 205*75*32mm | Weight | 300g |
Characteristics & Functions
1. Supports Chinese and English operations, making switching convenient.

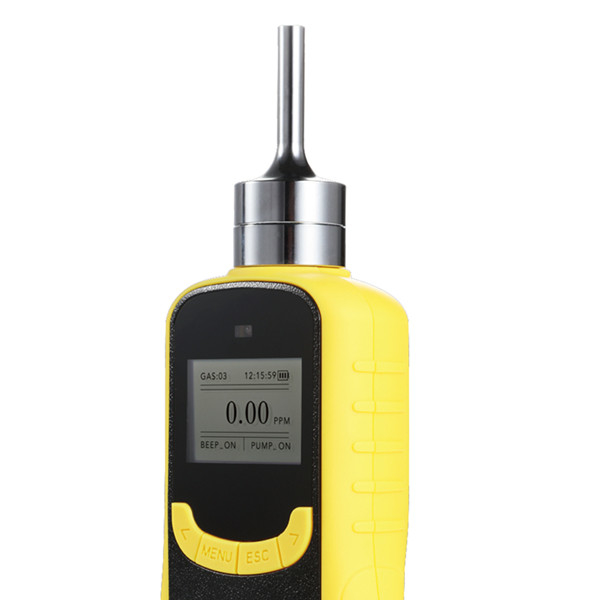

2. LCD dot matrix display, gas type, unit, concentration, and local time can be displayed on the screen.
3. Explosion proof certificate, explosion-proof grade: Exia II CT4.
4. The gas concentration units PPM and mg/m3 can be quickly switched.
5. Press once to Factory reset, avoiding the trouble of misoperation
6. Monitor the concentration of gases in the environment and enclosed spaces and give an alarm.
7. It has self calibration and zero calibration functions, making detection more accurate and reliable.
8. Sound and light two-level alarm, alarm points can be set.
9. High capacity rechargeable lithium polymer batteries.
10. It has temperature and pressure compensation functions, which can achieve gas concentration compensation under different temperature or pressure conditions.
Package: Aluminum suitcase plus outside carton with good protection
