IECEX Certified Phosphine Toxic Gas Monitoring 0-100PPM PH3 Personal Gas Detector

A Quality: Sensors and ICs from top international brands/100% production testing to ensure good quality
B Innovation: A strong R&D team (investing 5% of revenue in research and an experienced engineering team) makes our products stand out in the market
C Major: Focused on gas detection equipment for more than ten years, and has cooperated with well-known enterprises such as Huawei, Samsung, Panasonic, and Lenovo. We provide you with professional solutions with rich experience.

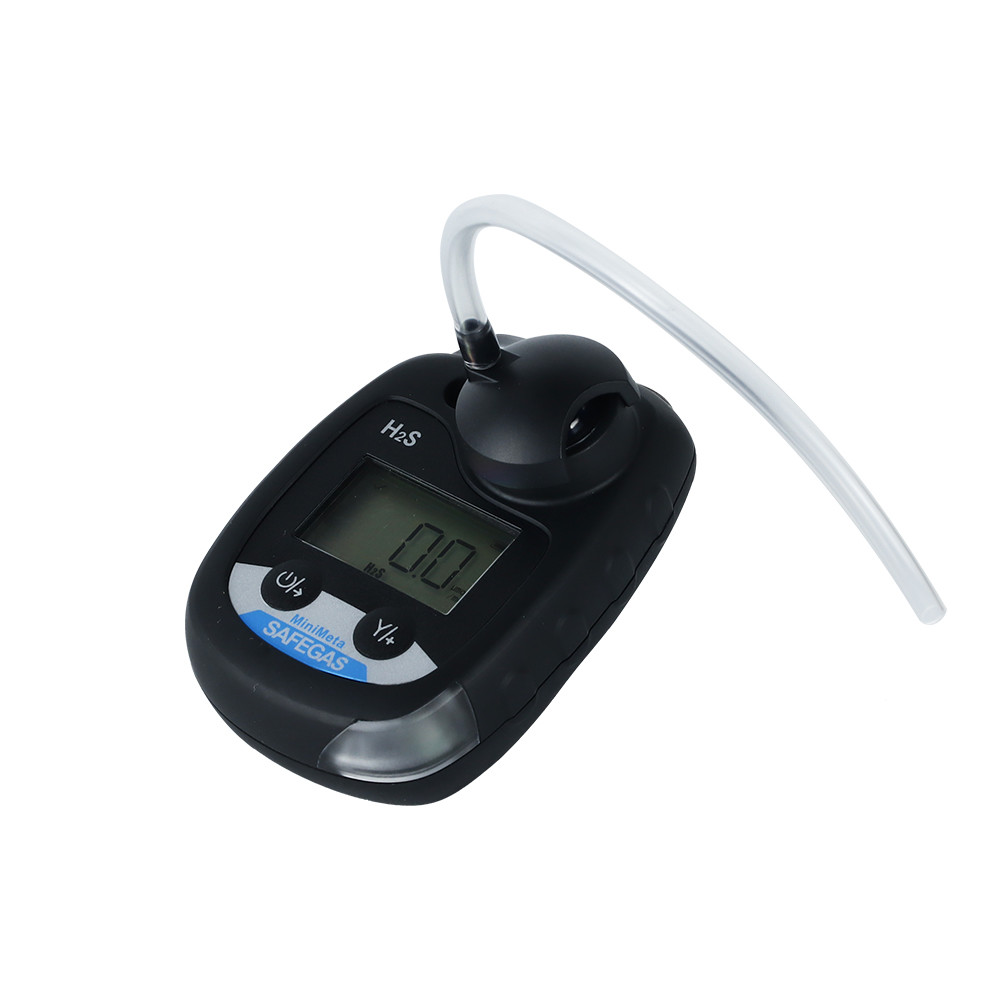

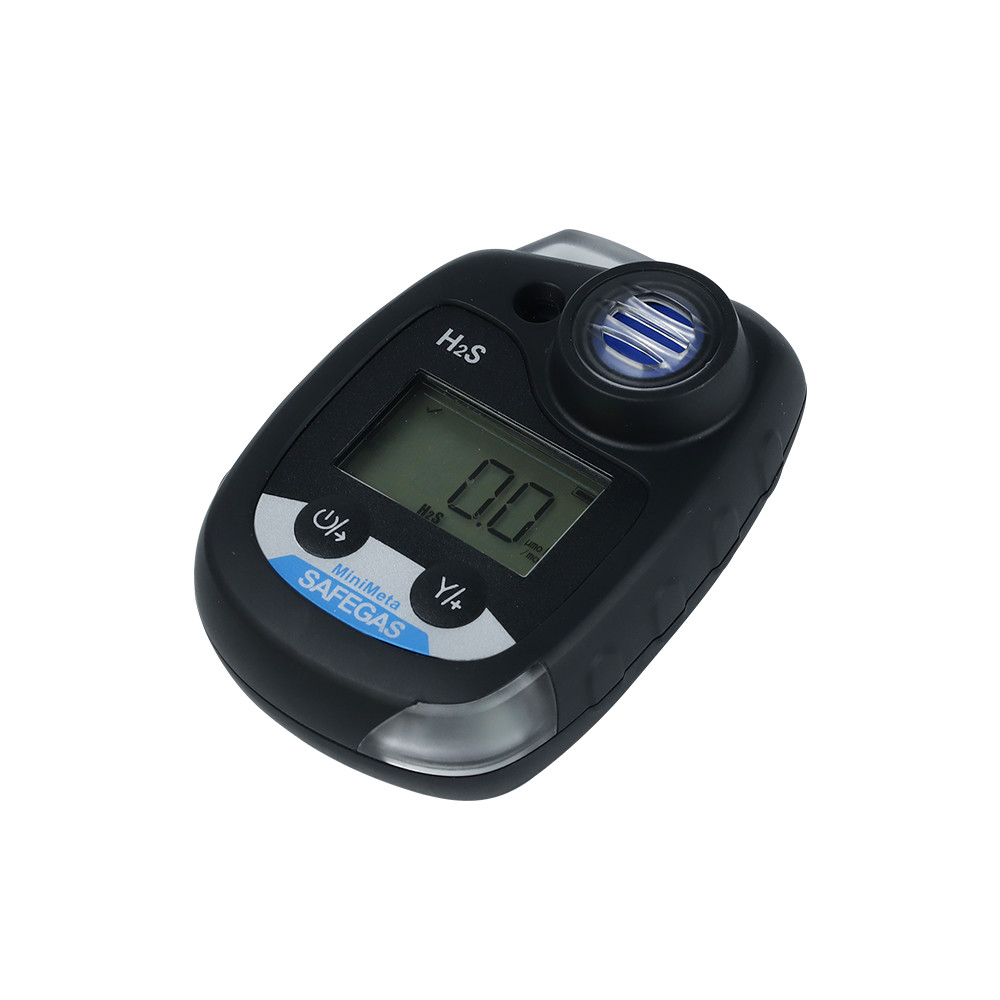

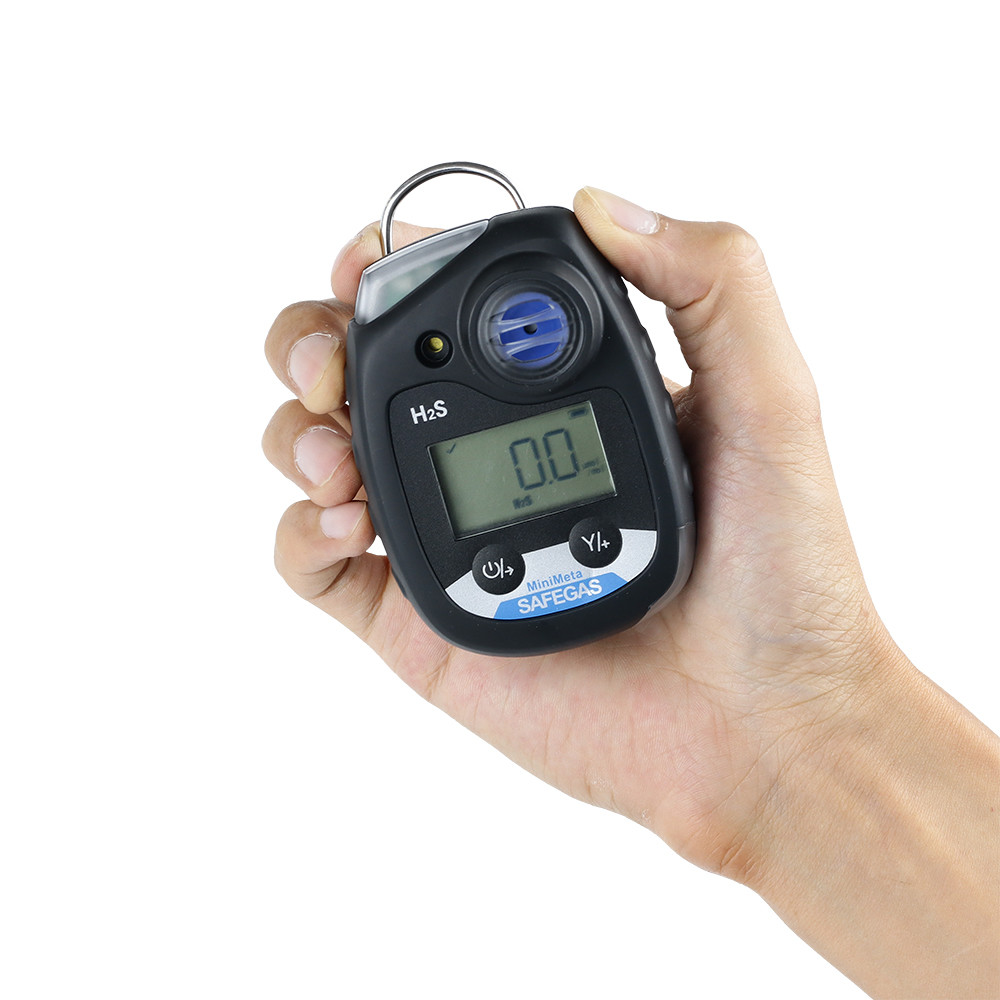

MiniMeta is a maintenance free single gas detector that is the most reliable, user-friendly, and cost-effective detection solution to ensure worker safety and operational compliance. It provides up to 2 years of protection without the need for calibration, sensor replacement, battery replacement, or battery charging. It is IECEx, ATEX, and CNEX explosion-proof certified and meets the highest quality and reliability standards to ensure worker safety and compliance. MiniMeta is compact, sturdy, and ergonomic. It can be connected to work clothes or hats with crocodile clips, making it easy to carry. MiniMeta can detect toxic and harmful gases such as carbon monoxide, hydrogen sulfide, oxygen, and sulfur dioxide. Other toxic gases can be customized and are widely used for gas detection and personnel protection in industries such as petroleum, petrochemical, metallurgical, and chemical industries



Specification

Gas Type PH3 Detection principle Electrochemisty Sampling Method Diffusion Measure Range 0-100PPM Resolution 0.1PPM Response time ≤30s(T90) Precision ≤± 3% F.S. Alarm mode Sound, light, vibration alarm, high and low alarm values can be set by yourself Alarm type Low alarm, high alarm, STEL, TWA, low battery Power supply mode 3.6V dry battery (non-removable and rechargeable) Explosion-proof grade ExiaIICT4Ga Protection class IP68 Executive standards GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2 Working temperature -20℃～55℃ Working humidity 0-95%RH (non-condensing) Working air pressure 86~106kpa Dimensions 90*60*33mm Weight 125g





Standard accessories



1 user manual,1 device,1 Calibration cap, 1 calibration certificate.

Combustible gas(LEL)

Oxygen(O2)

Ozone(O3)

Carbon dioxide(CO2)

Carbon monoxide(CO)

Hydrogen sulfide(H2S)

Ammonia(NH3)

Chlorine(CL2)

Hydrogen Chloride (HCL)

Nitrogen(N2)

Nitric oxide(NO)

Nitrogen dioxide(NO2)

Formaldehyde(CH2O)

Sulfer Dioxide(SO2)

Flammable gas(EX)
