| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX，CE，IECEX, EMC |
| Model Number: | Micmeta |
| Minimum Order Quantity: | 1 Pc |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 100 pieces/week |
| Model Number: | Micmeta | Sampling Method: | Diffusion |
|---|---|---|---|
| Testing Principle: | PID And Electrochemistry | Measure Range: | Customized |
| Resolution: | Customized | Alarm Type: | Sound, Light, Vibration |
| Color: | Red And Black | Size: | 113*60*32 |
| Net Weight: | 200g | ||
| High Light: | PID Sensor Portable Multi Gas Detector,portable Multi gas detector IP68,C6H12 Portable Multi Gas Detector |
||
Man down alarm function PID sensor for C6H12 VOC C2H4 Multi portable gas detector with IP68 degree
Product overview
MicMeta is an IECEx/ATEX/EMC certificated portable multi gas detector, which is diffusion type. The protection degree of Micmeta is IP68 for unmatched water protection. With explosion proof grade Ex ia I Ma, Ex ia IIC T4, it can be used in coal mines. With standard data logger, real time data and alarm events can be export to PC directly. It also support optional function with wireless communication so user can access to data remotely.
Product Advantages
Product specification
| Sampling method | Diffusion |
| Gas type | C6H12 VOC C2H4 |
| Measure range | Customized |
| Resolution | Customized |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |

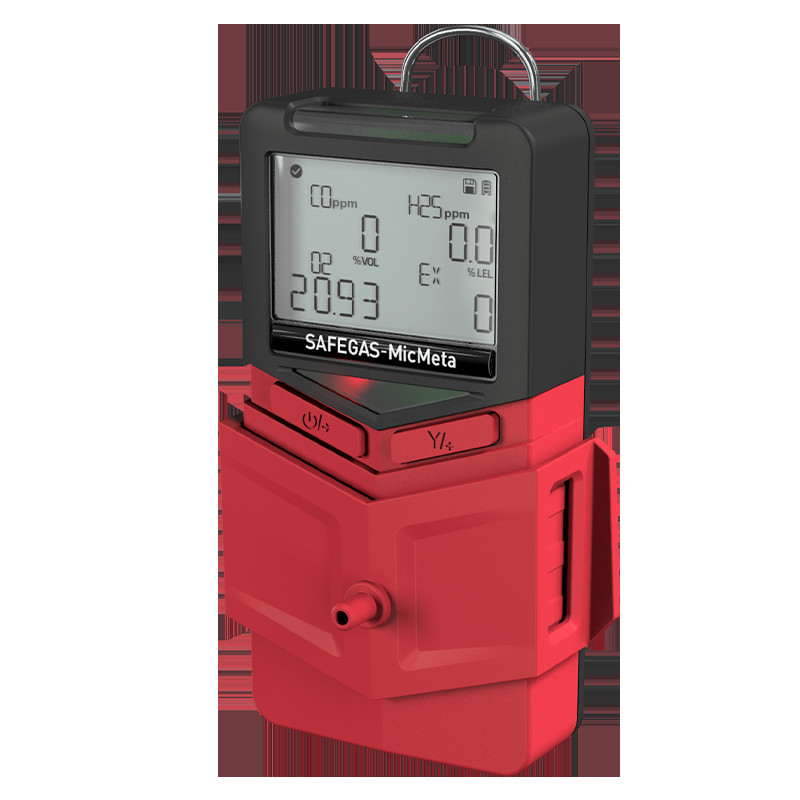

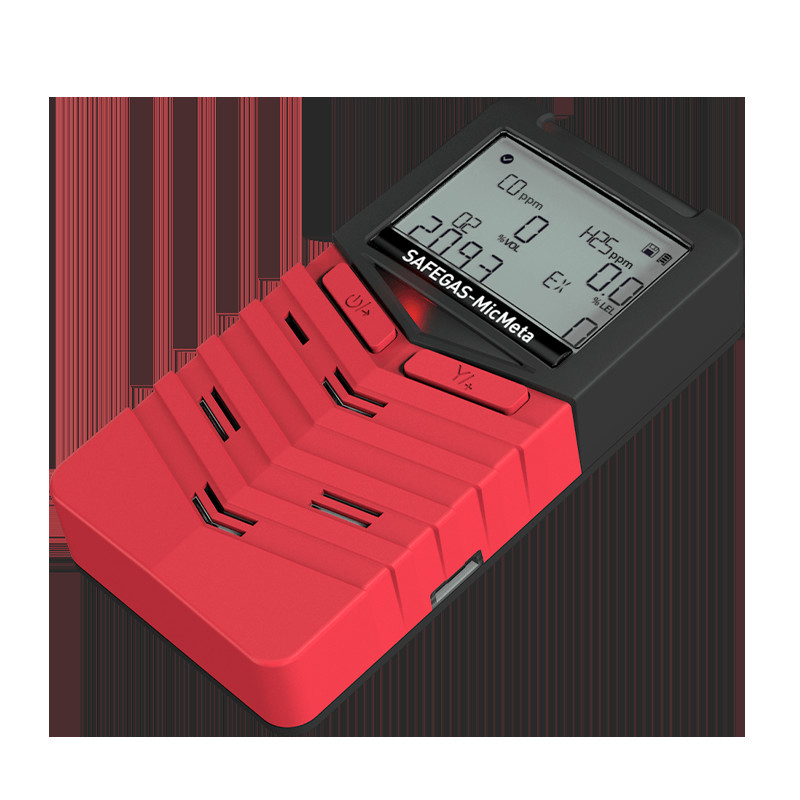

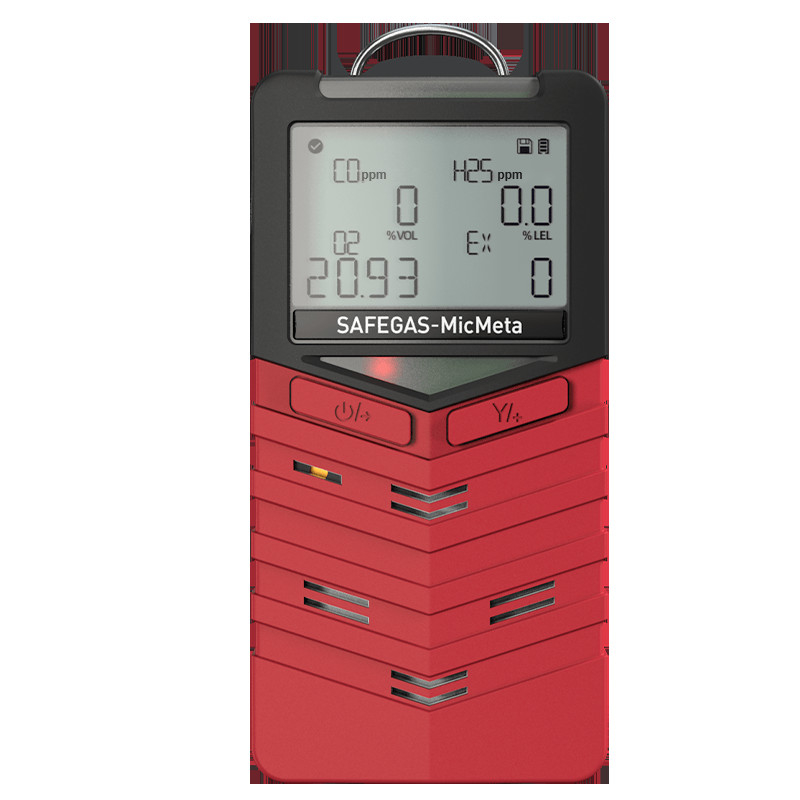

Product picture
Product Application
Oil,
Chemical,
Medicine,
Energy,
Environmental Protection,
Electronic,
Municipal Engineering,
Agriculture and Forestry,
Household Appliances,
