| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Safegas |
| Certification: | IECEX, EMC, ATEX ，CE |
| Model Number: | Micmeta-VOC |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1-3 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 1000 pieces/month |
| Model Number: | Micmeta-VOC | Sampling Mode: | Diffusion |
|---|---|---|---|
| Sampling Principle: | PID/ Electrochemistry | Measuring Range: | Customized |
| Resolution: | Customized | Alarm Type: | Sound, Vibration, Light |
| Color: | RED & BLACK | Instrument Size: | 113*60*32mm (L*H*W) |
| Weight: | 200g (with Battery) | ||
| High Light: | VOC Gas Detection Instrument,Air Quality Monitoring VOC Gas Detector,Portable VOC Gas Detector |
||
Advanced Portable VOC Gas Detection Instrument for Indoor Air Quality Monitoring
Product overview
MicMeta is a multi-gas detector certified by IECEx, ATEX, and EMC, boasting an IP68 rating. With an explosion-proof rating of Ex ia I Ma and Ex ia IIC T4, it's suitable for coal mines. Its lightweight, compact design features two user-friendly buttons. The standard gas types include CO, H2S, O2, and LEL, with support for customizing hundreds of gases. It offers wireless functionality for remote data access, and its standard data logger allows the direct export of real-time data and alarm events to a PC.
Product specification
| Sampling method | Diffusion |
| Gas type | VOC |
| Measure range | Customized |
| Resolution | Customized |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |

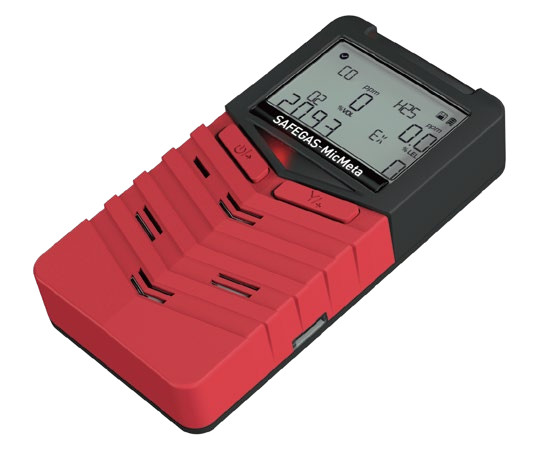

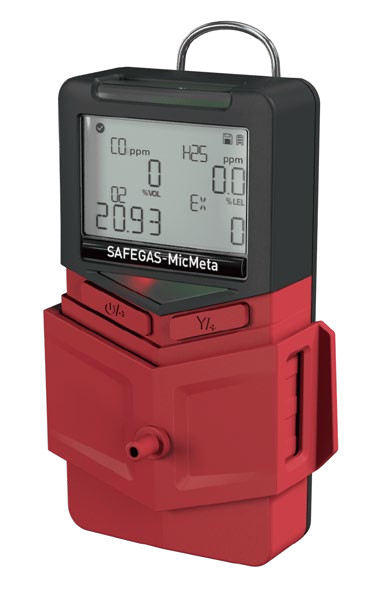

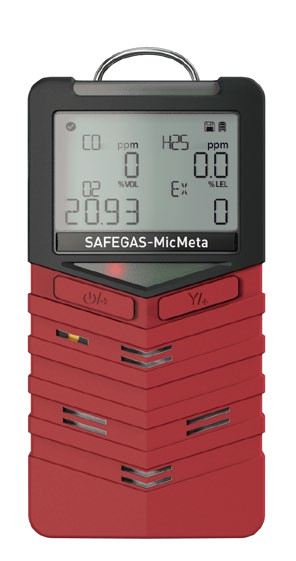

Product picture
Product advantages
Product application
Industrial Safety
Environmental Monitoring
Healthcare Applications
Automotive Industry
Mining and Mining Operations
Food and Beverage Production
Chemical Industry
Greenhouse Gas Monitoring
Oil and Gas Exploration
Wastewater Treatment
etc.
