Portable HF Single Gas Detector Explosion Proof Hydrogen Fluoride Gas Detector

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/EMC/IECEX
Model Number: Minimeta
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1-3 working days
Payment Terms: Western Union, T/T, credit card
Supply Ability: 3000 pieces/month
Detail Information
Gas Type: HF/ Hydrogen Fluride Model Number: Minimeta- HF
Sampling Method: Diffussion Measure Range: 0-10ppm (Customized)
Resolution: Customized Responding Time: ≤30s (T90)
Alarm: Sound, Light And Vibration Mode Country Of Original: Guang Dong, China
Testing Principle: Electrochemistry
High Light:

HF Single Gas Detector ATEX

,

ATEX Hydrogen Fluoride Gas Detector

,

Portable Hydrogen Fluoride Gas Detector


Product Description

Portable HF Single Gas Detector with Safety Features & Explosion Proof





Company Profile



We specialize in the design, production, and sales of high-end gas detection equipment and systems. We offer portable and fixed oxygen, toxic gas, and explosive gas detectors, primarily for industrial applications. All sensors (the key components of the detectors) that we use are imported from the United States, Japan, South Korea, and Europe, including brands such as Alpha, City, Ion, Honeywell, and they are on par with renowned brands such as BW, Drager, RAE, MSA, etc.


Our Advantage

Certified to ATEX/CE/Rohs/ISO9001 standards, compliant with government regulations to ensure your safety and health.
Quality Guaranteed: Sensors and ICs from top international brands/100% production testing to ensure high quality.
Professional Experience: With over ten years of focus on gas detection equipment, we have collaborated with well-known enterprises such as Huawei, Samsung, Panasonic, and Lenovo. We provide you with professional solutions based on our rich experience.
Professional Technical Support: We provide detailed pre-sales and after-sales technical support, so you don't have to worry about any issues during use.
Innovation Driven: With a strong R&D team (investing 5% of revenue in research and an experienced engineering team), our products stand out in the market.




Portable HF Single Gas Detector Explosion Proof Hydrogen Fluoride Gas Detector 0

Product Overview

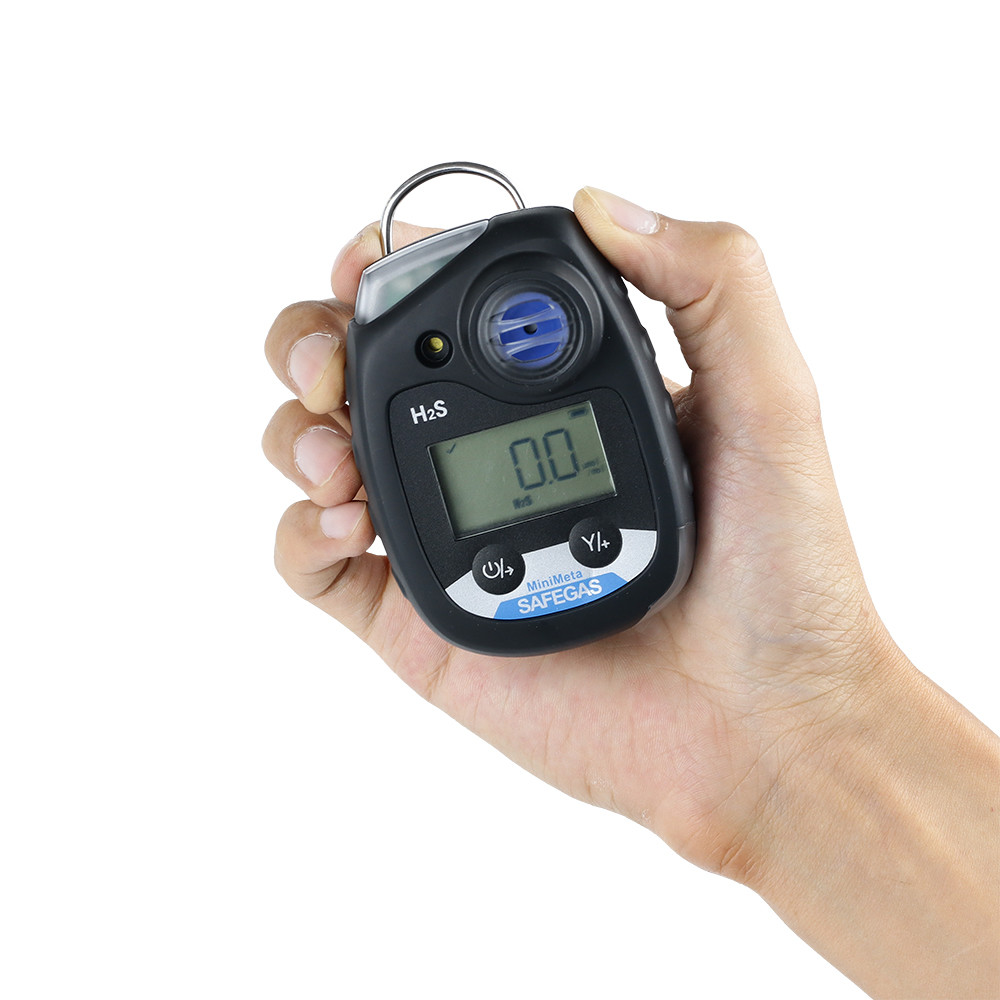

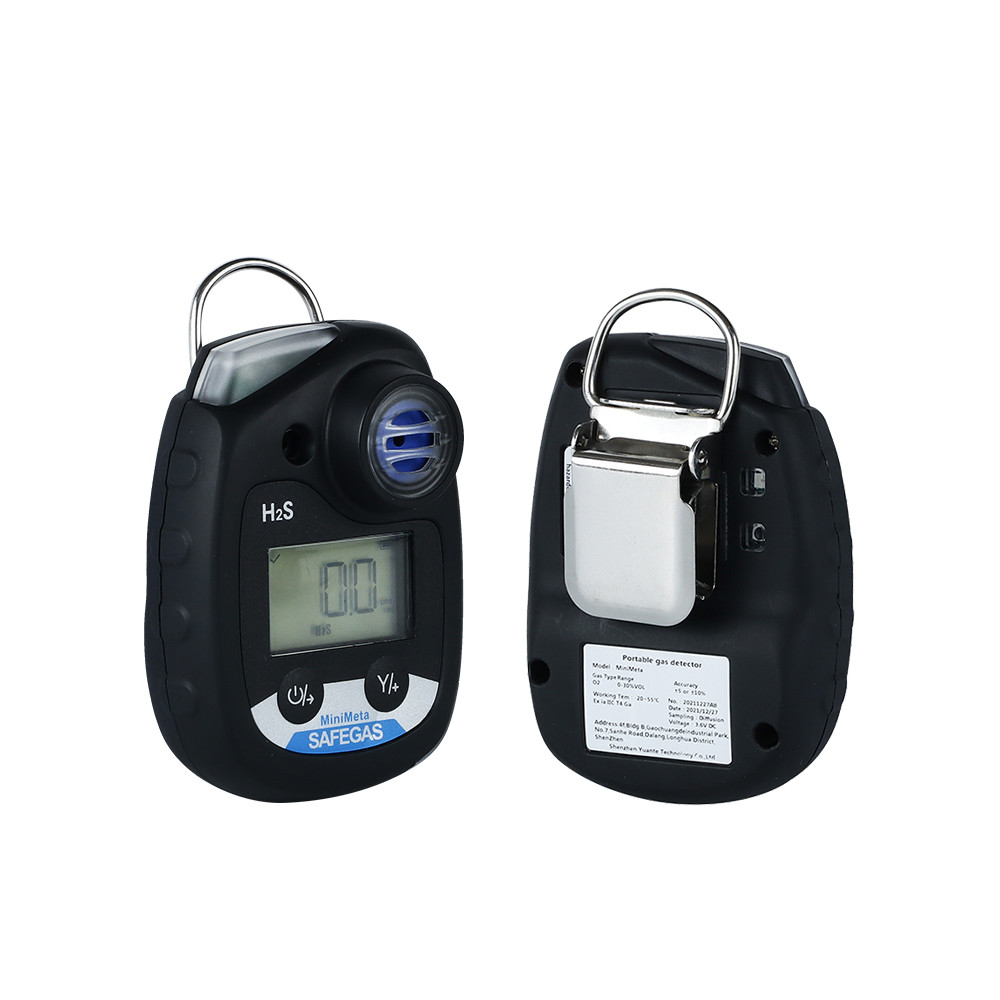

This model has been certified by IECEX/ATEX/EMC and can be used in hazardous areas. It is small and comfortable to wear. Its shell is made of durable and sturdy materials, with a protection level of IP66/IP68. There is also a back clip, making it easy for users to wear it on their coat. The back label indicates the manufacturer's information, product information, and explosion-proof information.



Specification

Gas Type HF
Detection principle Electrochemisty
Sampling Method Diffusion
Measure Range 0-1PPM, 0-10PPM
Resolution 0.001PPM, 0.01PPM, 0.1PPM, 1PPM
Response time ≤30s(T90)
Precision ≤± 3% F.S.
Alarm mode
Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type Low alarm, high alarm, STEL, TWA, low battery
Power supply mode 3.6V dry battery (non-rechargeable)
Explosion-proof grade ExiaIICT4Ga
Protection class IP68
Executive standards GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature -20℃~55℃
Working humidity 0-95%RH (non-condensing)
Working air pressure 86~106kpa
Dimensions 90*60*33mm
Weight 125g





Product Advantage



The battery is non-rechargeable and does not require charging or replacement for 2 years. The battery and sensor are replaceable, providing long-term use for users. Long press the power button to turn on the device. The sensors and electronic components are imported from world-renowned brands, with excellent response time and accuracy performance. When the gas concentration exceeds the alarm value, it has functions of sound, light, and vibration alarm. It has a standard record of 60 events, and data can be exported through IR links and Safegas PC software.
