| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Safegas |
| Certification: | IECEX, EMC, ATEX ，CE |
| Model Number: | Micmeta-CL2 |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1-3 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 1000 pieces/month |
| Model Number: | Micmeta-CL2 | Sampling Mode: | Diffusion |
|---|---|---|---|
| Sampling Principle: | Electrochemistry | Measuring Range: | 0-10ppm |
| Resolution: | 0.01ppm | Alarm Type: | Sound, Vibration, Light |
| Color: | RED & BLACK | Instrument Size: | 113*60*32mm (L*H*W) |
| Weight: | 200g (with Battery) | ||
| High Light: | Portable CL2 Gas Detector,Agricultural Field CL2 Gas Detector |
||
Agricultural Field Portable CL2 Gas Detector for Disinfection Residue Red with 0-10ppm
Product overview
MicMeta, a multi-gas detector, holds certifications from IECEx, ATEX, and EMC etc, and carries an impressive IP68 rating. Its explosion-proof rating of Ex ia I Ma and Ex ia IIC T4 makes it particularly suitable for use in coal mines. The device’s design is compact and lightweight, featuring two intuitive buttons for ease of use. It is capable of detecting standard gases such as CO, H2S, O2, and LEL, and can be customized to detect hundreds of other gases. The MicMeta detector also offers wireless capabilities for accessing data remotely. Additionally, its built-in data logger enables the direct transfer of real-time data and alarm events to a PC software.
Product specification
| Sampling method | Diffusion |
| Gas type | CL2 |
| Measure range | 0-10ppm |
| Resolution | 0.01ppm |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |

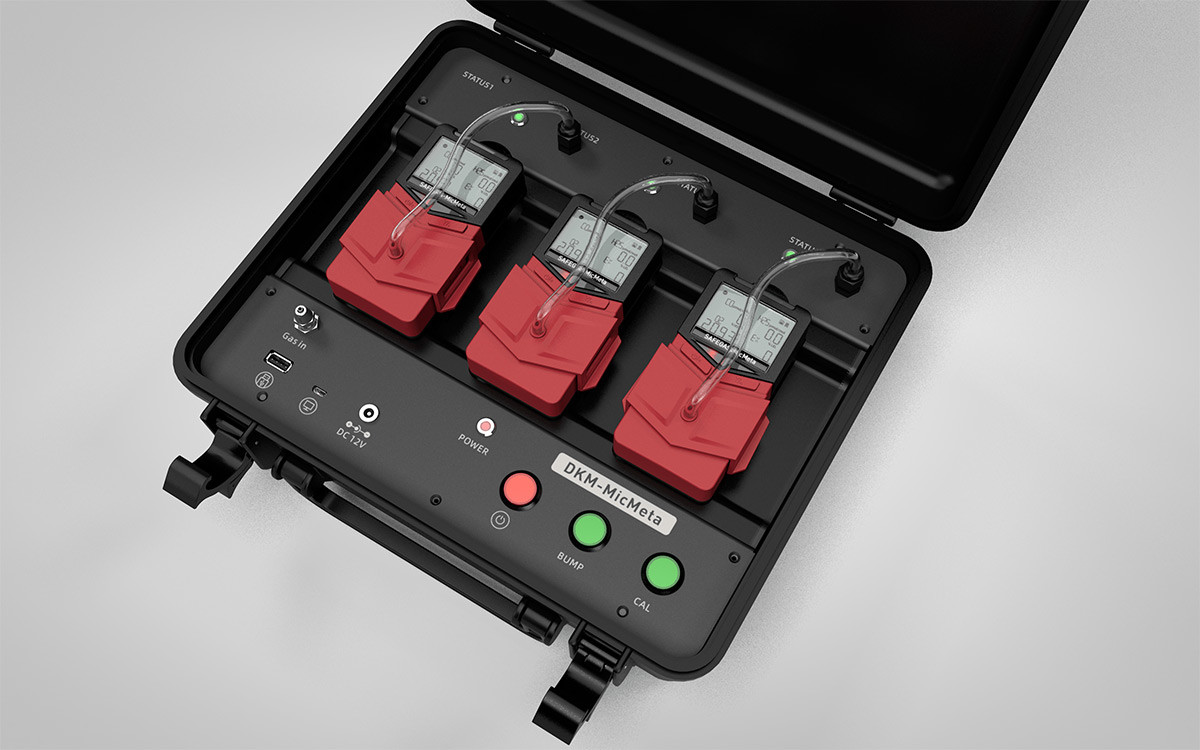

| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |

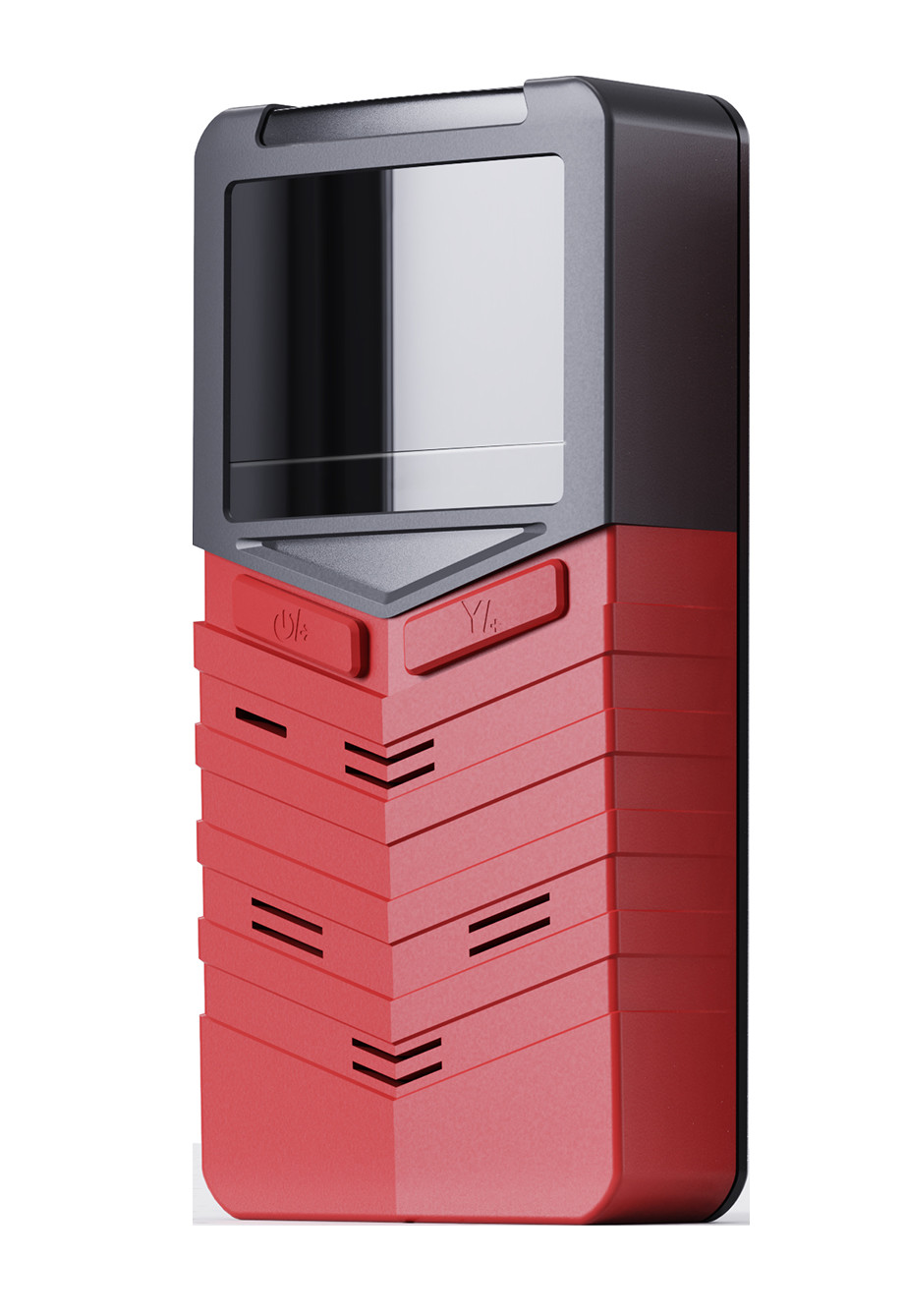

Product picture
Product advantages
Product application
Industrial Safety: Ensuring a safe and secure industrial environment.
Environmental Monitoring: Keeping track of environmental changes and anomalies.
Healthcare Applications: Contributing to the advancement of medical technologies and patient care.
Automotive Industry: Enhancing vehicle performance and safety.
Mining Operations: Ensuring the safety and efficiency of mining activities.
Food and Beverage Production: Maintaining quality and safety standards in food production.
Chemical Industry: Facilitating safe and efficient chemical processing and handling.
Greenhouse Gas Monitoring: Monitoring and managing greenhouse gas emissions.
Oil and Gas Exploration: Assisting in the exploration and extraction of oil and gas resources.
Wastewater Treatment: Aiding in the treatment and management of wastewater.
And More: The product has a wide range of other applications across various sectors.
