| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Model Number: | YT-95H |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-95H | Detected Gas: | C6H6/Benzene |
|---|---|---|---|
| Sensor Principle: | PID | Measure Range: | Customized |
| Resolution: | Customized | Install Method: | Wall-mounted |
| Power Supply: | 24V DC | Weight: | ≤1.6kg |
| Product Size: | 180*150*90mm | Warranty: | 1 Year |
| Color: | Blue | Material Case: | Die-cast Aluminum, Sensor Housing: Aluminum Alloy Or 316 Stainless Steel |
| Explosion-proof Grade: | Ex D IIC T6 Gb | ||
| High Light: | 24h Fixed C6H6 Gas Detector,PID Sensor Industrial Gas Detectors,C6H6 Toxic Gas Detector |
||
24h Fixed C6H6 Gas Detector with High Precision PID Sensor to Prevent Cancer for Human Body
Product Profile

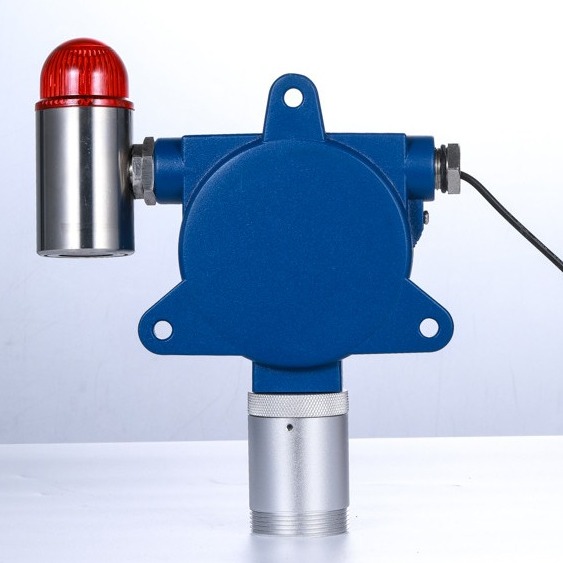

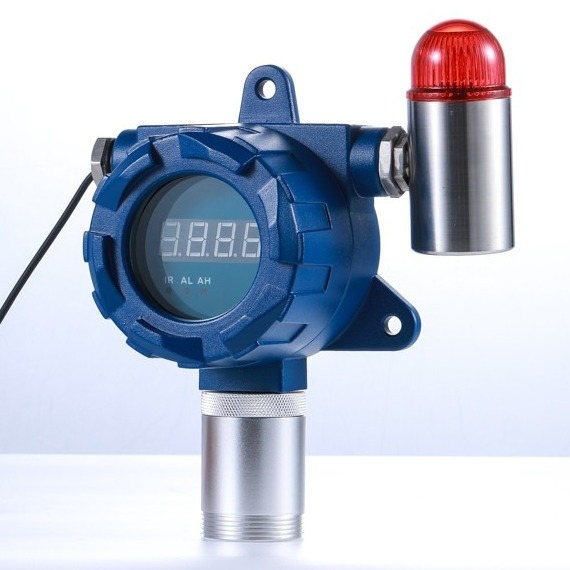

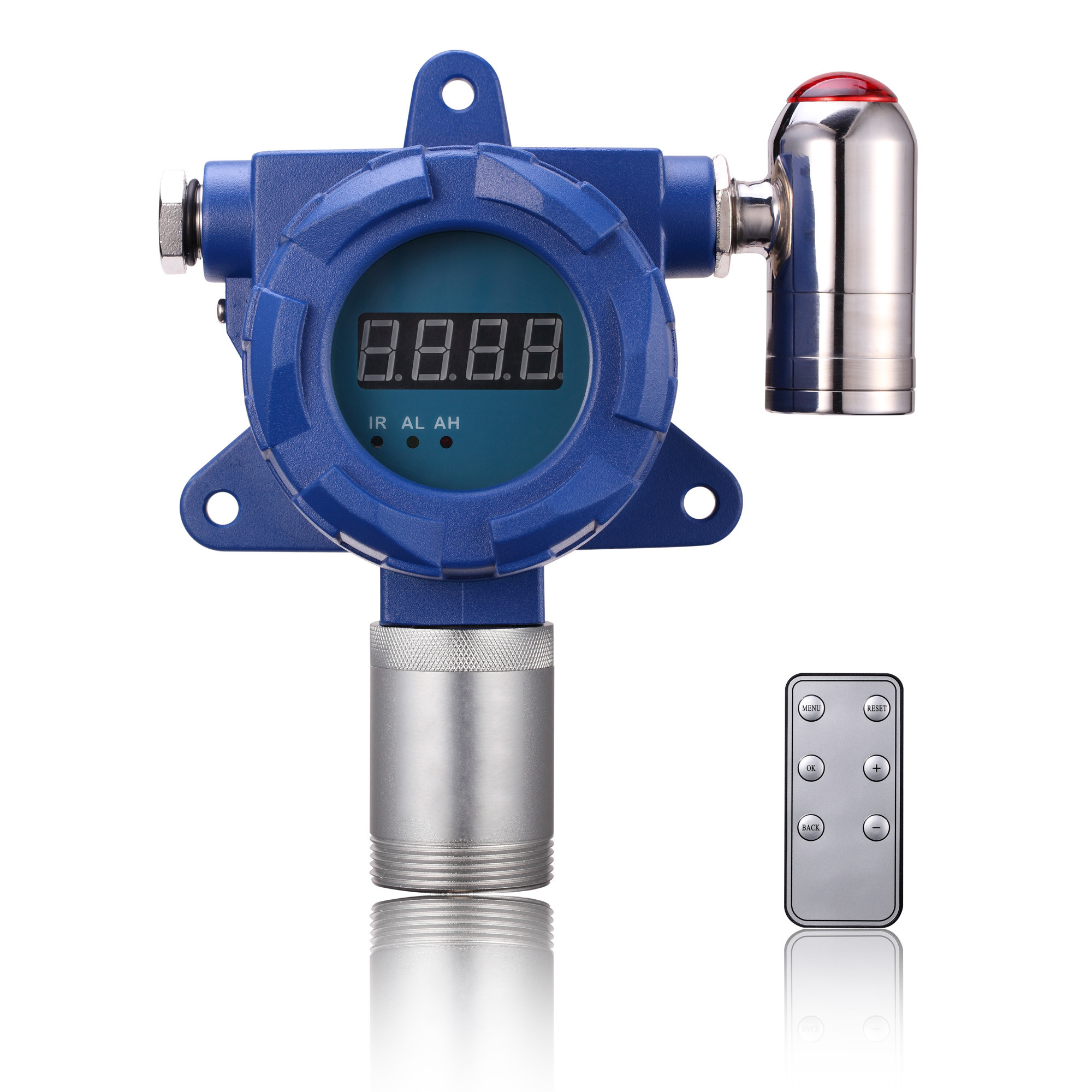

The YT-95H series gas detector, equipped with an alarm light, is a wall-mounted device designed for continuous monitoring of gas concentrations in diverse areas or pipelines. Leveraging top-tier global sensors and advanced microprocessing technology, this detector boasts features such as data display, high/low alarm functions, swift response time, high accuracy, and exceptional stability. Operating on a 24V DC supply, it provides 4-20mA, RS485, and relay signal outputs. Its explosion-proof design enhances its applicability across a vast array of industrial applications, ensuring maximum safety and reliability.
Features
Product Specifications
| Gas detected | C6H6/Benzene | ||
| Detection principle | PID | ||
| Install method | Wall-mounted (according to the detected environment) | ||
| Measure range | Customized | ||
| Resolution | Customized | ||
| Precision | ± 2-5% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display | High-light nixie tube display |
| Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light | Operating time | 24H |
| Dimensions | 180*150*90mm | Weight | ≤2kg |
Product Application
More environments can be applied.
