Air quality monitor NOX SO2 CO CO2 O2 gas analyzer with built in printer

Basic Information
Place of Origin: China
Brand Name: Yuante
Certification: ATEX/CE
Model Number: SKY8000
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 5 - 7 working days
Payment Terms: Western Union, T/T, Visa, Master Card
Supply Ability: 1000 pieces/Month
Detail Information
Detecting Gas: Can Detect Upto 18 Gases Sensor Type: Combustible: Catalytic Combustion Principle Or Infrared Principle; Oxygen: Electrochemical Principle Or Zirconia Principle; Toxic: Electrochemical Principle; CO2: Infrared Principle; VOC: PID Photo Ion Principle; CH4: Catalytic Combustion Principle Or Infr
Measure Range: 0~1、10、100、1000、5000、50000、100000 PPM;0-100mg/L、200mg/L; 0-100%LEL;0-10%、20%、50%、99.999%、100%Vol(Measure Range Is Optional And Customerized) Resolution: 0.001 PPM(0-1 PPM);0.01PPM Or 0.001 PPM(0~10 PPM); 0.1 PPM Or 0.01 PPM(0~100 PPM);1 PPM Or 0.1 PPM(0~1000 PPM); 1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL);0.01%(0-100%VOL)
Application: Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking Sampling Method: Pumping Suction
Display: Formula, Gas Concentration Data, Measurement Trend Curve, Gas Curve, Battery, Time, Temperature, Humidity, Pressure (optional), Pump Condition, Wireless Status, Printer Status, Screen Shot Status Alarm: Buzzer, Red LED And Alarm Status On The Display, Fault Alarm, Pump Abnormal Alarm, Low Battery Alarm
Language: Chinese/English Warranty: 1 Year
High Light:

Air Quality Monitor Toxic Gas Detector

,

Measuring Air Quality Toxic Gas Detector


Product Description

Air quality monitor NOX SO2 CO CO2 O2 gas analyzer with built-in printer





Factory Profile

Our company Safegas is the leading manufacture of gas detector in China. We focuses on the design, production and sales of gas detection equipment and system for 13 years.



The best advantages of our products is that we have obtained IECEX/ATEX international explosion-proof certifications, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.



All sensor(main parts of detector) we use are imported from international brands, like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.





Product overview



SKY8000 series gas analyzer is a data collector which can quickly acquire and analyze gas concentration components in factory, scientific research, university and complex working environment. There are 4 different version to support different applications including SKY8000-M gas analyzer to monitor gases in ambient environment; SKY8000-AQ air quality gas analyzer to monitor gases, particle counter, dew point, temperature and humidity; SKY8000-OU odor gas analyzer to monitor H2S, NH3, odor; SKY8000-EM emission gas analyzer to monitor high gas concentration gases in flue gas environment.



Product advantage

  • Support to monitor 1-18 gas types
  • 3.5-inch color LCD display support both real time data
  • and chart, user friendly
  • Built-in pump gas sampling, faster response
  • Equipped with multi-layer filtering, protect sensor from
  • oil, water vapour, dust
  • Standard 32G SD memory card to store and export data
  • by U-disk easily
  • Support Lora and other wireless communication
  • (Optional)
  • Support built-in printer for real time data printing
  • (Optional)
  • High temperature, high humidity environment
  • measurement (Optional)

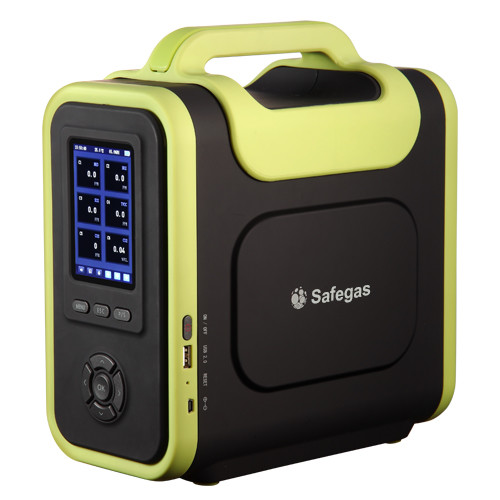

Air quality monitor NOX SO2 CO CO2 O2 gas analyzer with built in printer 0

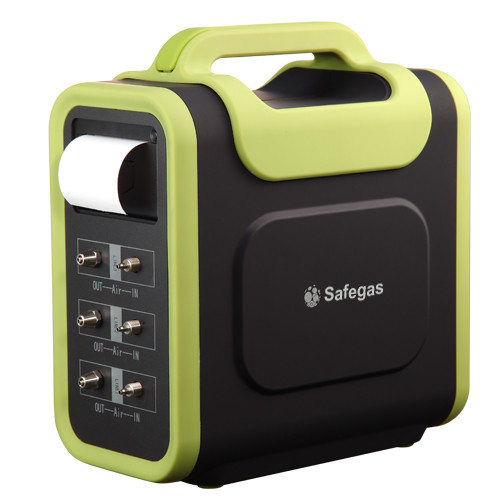

Air quality monitor NOX SO2 CO CO2 O2 gas analyzer with built in printer 1





Specification



Sensors

Various principle sensors  HCHO VOC TVOC CL2 PH3 HCL Toxic gas can be combined in any number , up to 18 sensors;

Combustible: catalytic combustion principle orinfrared principle;

oxygen: electrochemical principle or zirconia principle;
toxic: electrochemical principle;
CO2: infrared principle;
VOC: PID photo ion principle;
CH4: catalytic combustion principle or infrared principle;
He: thermal conductivity Principle,
temperature and humidity sensors, pressure sensors (optional) (other principles of the sensor can be customized)
Measure range
0~1,10,100,1000,5000,50000,100000 PPM;0-100mg/L,200mg/L;
0-100%LEL;0-10%,20%,50%,99.999%,100%Vol(Measure range is optional and customerized)
Resolution
0.001 PPM(0-1 PPM);0.01 PPM or 0.001 PPM(0~10 PPM);
0.1 PPM or 0.01 PPM(0~100 PPM);1 PPM or 0.1 PPM(0~1000 PPM);
1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL);0.01%(0-100%VOL)

Display
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional),
pump condition, wireless status, printer status, screen shot status
Alarm
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data storage
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval.
Data transmission and download
RS232,RS485 singnal output, USB interface data transmission, with the upper computer software, can download storage, analyze and
print data
Print function(Optional)
Optional with internal portable printer or external bluetooth printer
Print content(Optional)
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.

Charger
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer )
Language
Chinese/English
Wireless network (optional)
Bluetooth, Zigbee
Network frequency
2.4G high frequency.
wireless transmission distance
Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m.

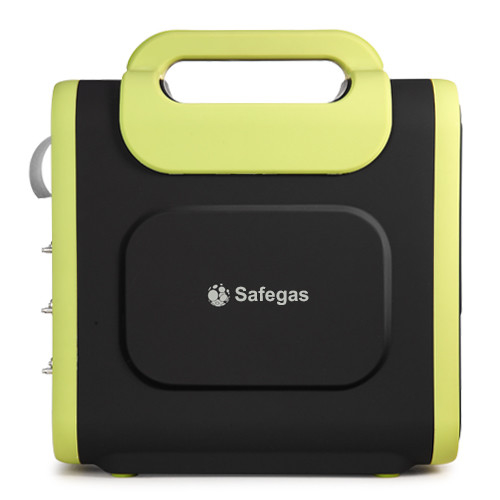

Air quality monitor NOX SO2 CO CO2 O2 gas analyzer with built in printer 2

Air quality monitor NOX SO2 CO CO2 O2 gas analyzer with built in printer 3







Services:
1. One year free warranty.
2. All machines are debugged before shipment.
3. Lifetime technical support and service.
4. 24 hours on line or phone or by email technical support.
5. We offer detailed machine manual and software manual.





Application



Petrochemical & Chemcial Industry, Municipal Engineering & Utilities, Agricultral & Environmental Protection, Electronic, Food & Pharmaceutical Industry, Other Industries.

Used in coal mines, Used in sewers and underground areas, applied in Oil & Gas industries like Shell or Petros, applied in confined spaces like warehouse, ships, factories,ect.
