| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Model Number: | YT-95H-CO2 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-95H-CO2 | Detected Gas: | CO2 |
|---|---|---|---|
| Sensor Principle: | Infrared | Measure Range: | 0-2000/5000/10000/50000ppm/20%Vol/100%VOL |
| Resolution: | 1PPM,0.01%VOL | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 3 KG |
| Product Size: | 180*150*90mm | Warranty: | 1 Year |
| Highlight: | 5000PPM Carbon Dioxide CO2 Detector,IP65 Carbon Dioxide CO2 Detector,20mA Wall Mounted CO2 Detector |
||
Product Overview

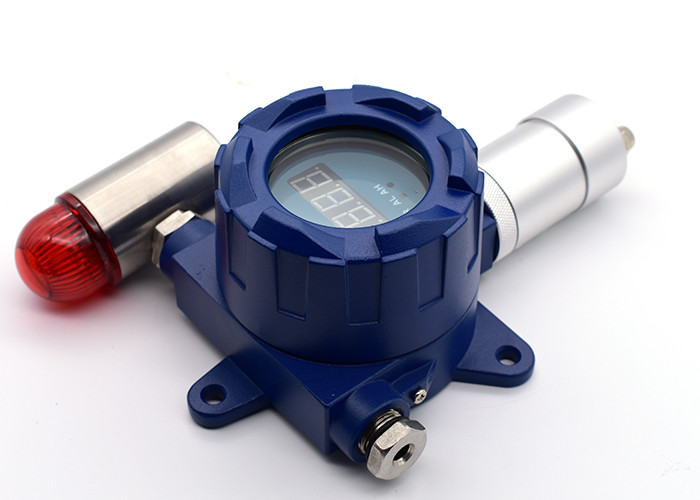

YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations
Features
Specification
| Gas detected | CO2 | ||
| Detection principle | Infrared | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-2000/5000/10000/50000ppm/20%Vol/100%VOL | ||
| Resolution | 1PPM, 0.01%VOL | ||
| Precision | ± 2-5% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display | High-light nixie tube display |
| Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light | Operating time | 24H |
| Dimensions | 180*150*90mm | Weight | ≤2kg |
