H2 Single Gas Detector Panel 0-100% LEL Hydrogen Explosion Test Monitor With ATEX CE

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CE ATEX CNEX ISO9001-2015
Model Number: YT-95H-H2
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, Credit Card
Supply Ability: 500PCS/DAY
Detail Information
Detected Gas: H2 Hydrogen Measure Range: 0-1000, 0-2000, 0-5000, 0-10000, 0-40000ppm, 0-100%LEL
Sampling Method: Natural Diffusion Sensor Type: Electrochemical, Catalytic Combustion
Install Method: Wall-mounted, Piping-type, Flow-type Power: 12-36Vdc
Usage: Industrial Production Signal: 4-20mA, RS485, Relay
Calibration Certification: Yes Application: Environmental Monitoring
High Light:

ATEX Single Gas Detector


36Vdc Single Gas Detector


ATEX H2 Gas Detector

Product Description

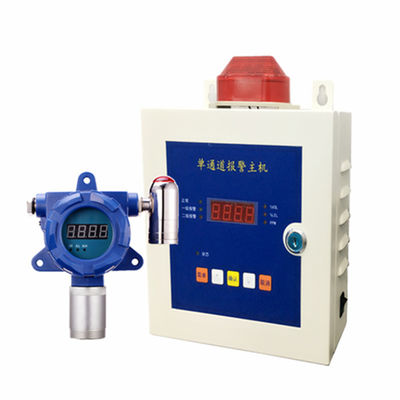

H2 Single Gas Detector Panel 0-100%LEL Hydrogen Explosion Test Monitor With ATEX CE

For some industrials, they need to test H2 Hydrogen leakage or explosion. To make sure safety, it is very important to test H2 Hydrogen. If you want to test PPM leakage, we suggest you use measure range 0-1000ppm, 2000ppm, 5000ppm, etc; If you want to test Hydrogen explosion, we suggest you use measure range 0-100%LEL. Besides, our H2 single gas detector panel can be with controller panel, it can be connected with detectors, the readings will show on the panel by 4-20mA or RS485 signal output. The H2 single gas detector and controller panel have alarm function, if there have any leakage, it will alarm with sound and light. With relay output, once the concentration exceed the preset alarm point(threshold), it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans.


A Professional: We have been focused on gas detection devices for more than 10 years and been cooperating with PB group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc famous companies. We are with rich experience to provide you professional solutions.

B Innovation: Strong R&D team (invest 40% revenues into research and experienced engineers team) makes our products stand out in the market.
C Quality: International top brands sensor and IC /100% production test, make sure a good quality.
D Professional technical support: Provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.
E Completed certifications: ATEX / SIL / CE / CNEX / ISO9001/, meet government standard as well guarantee your safety health.
F Services: We provide 24*7 hours service, if there have any question, Celia will reply you in 1 hours. Meanwhile, we can provide OEM services.
G Delivery: We can ship it out in 2-3 days. For some mass production and special customised gas analyzer, we can ship it out in 7 days.


Applications for H2 Single Gas Detector Panel 0-100%LEL

Oil & Gas industries like Shell or Petros;

Confined spaces like warehouse, ships, factories,ect.

Used in sewers and underground areas;

Used in coal mines;

Gas Station, gas pipeline, Chemical medicine, Metallurgy field, etc


H2 Single Gas Detector Panel 0-100% LEL Hydrogen Explosion Test Monitor With ATEX CE 0


H2 Single Gas Detector Panel 0-100%LEL Specification


Gas detected

H2 Hydrogen

Detection principle

Electrochemistry, Catalytic combustion, sensor and ic are imported from UK

Install method

Wall-mounted, piping type, flow-type (according to the detected environment)

Measure range

0-1000, 0-2000, 0-5000, 0-10000, 0-40000ppm, 0-100%LEL


1ppm, 1%LEL


≤± 2-3% FS for normal sensor, ≤± 1% FS for high precision sensor

Signal output

4-20mA, 0-5V, RS485, relay(optional)

Response time


Recovery time




Linearity error


Zero shift



High-light nixie tube display

Connection mode

G1/2 external thread explosion-proof flexible pipe




-20 to 50°C




II 2G Ex db IIC T6 Gb IP65

Degree of protection



Sound, light

Operating time








1. H2 Single Gas Detector Panel 0-100%LEL is standard equipped with three-wire system 4-20mA analog output; relay output; RS485 output.
2. Unique infrared ray control function, which can non-contacted control the device.
3. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
4. Explosion-proof design, fast, reliable and stable.
5. Explosion-proof grade: II 2G Ex db IIC T6 Gb IP65
6. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
7. Detachable probe/gas cell: It is very easy to calibrate and replace sensor



1. H2 Single Gas Detector Panel 0-100%LEL monitor the H2 Hydrogen gas in environment or pipeline.
2. With self-calibration and zero calibration function, makes the detection more accurate and reliable.
3. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
4. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification. (optional)
5. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices. (optional)
6. Working Voltage:24V DC
7. H2 Single Gas Detector Panel 0-100%LEL Case: die-cast aluminum

H2 Single Gas Detector Panel 0-100% LEL Hydrogen Explosion Test Monitor With ATEX CE 1



Factory information


Established in 2010, SHENZHEN YUANTE TECHNOLOGY CO.,LTD, is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector” as the core product, we have completed production line and solutions according to different industries, such as: Oil, Chemical, Medicine, Energy, Environment protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Safegas becomes the influential supplier for gas detection equipment and system in the domestic and overseas market.

Shenzhen YuanTe is gathered by a group of industry experts who are experienced in gas detectors R&D, manufacturing and investment. Every year, 5% of Shenzhen YuanTe’s income will be invested as R&D fund. To select out these new product, new technology and new services which will meet market demand is the most important task for R&D team.

For manufacturing, we have independent production workshop, modern production equipment, aging room, calibration room and professional staff.

For marketing, we implement flexible and competitive price and diversified sales strategy. We penetrate the market by various methods such as OEM, ODM, agent and direct selling, and ensure profit of every partner.

For service, we provide 24h/day service to users, rapid in response, technical guidance in place, convenience in repair and maintenance. At present, detectors are with ATEX CE EMC international certifications, Company has got ISO9001-2015 Quality management system certificate.


H2 Single Gas Detector Panel 0-100% LEL Hydrogen Explosion Test Monitor With ATEX CE 2H2 Single Gas Detector Panel 0-100% LEL Hydrogen Explosion Test Monitor With ATEX CE 3

H2 Single Gas Detector Panel 0-100% LEL Hydrogen Explosion Test Monitor With ATEX CE 4

H2 Single Gas Detector Panel 0-100% LEL Hydrogen Explosion Test Monitor With ATEX CE 5



Q1: Are you factory or trade company?
A1: We are factory. We are a professional H2 Single Gas Detector Panel 0-100%LEL manufacturer with 16 years experiences.

Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available

Q3: Does your company accept customization?
A3: We do customizing service for customers.

Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.

Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for H2 Single Gas Detector Panel 0-100%LEL.


Q6: What is your delivery time?

A6: H2 Single Gas Detector Panel 0-100%LEL is 1-2 days on receipt of payment.


Q7: What services can we provide?
A7:  Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF, etc;
Accepted Payment Type: T/T, MoneyGram, Credit Card, Western Union, Cash;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian, etc
