Mini Size CO Gas Detector , Monoxide Gas Analyzer Diffusion Type With Back Clip

Basic Information
Place of Origin: China
Brand Name: Yuante
Certification: ATEX/CE
Model Number: YT-1200H-S-CO
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 100 pieces/week
Detail Information
Sensor Type: Electrochemistry Detected Gas: CO
Measure Range: 0-100PPM, 0-500PPM, 0-1000PPM, 0-2000PPM, 0-5000PPM, 0-10000PPM Resolution: 0.1PPM, 1PPM
Sampling Method: Diffusion Type Battery Type: Lithium Ion Battery
Battery Capacity: 2300 Mah
High Light:

carbon monoxide meter


handheld carbon monoxide detector

Product Description

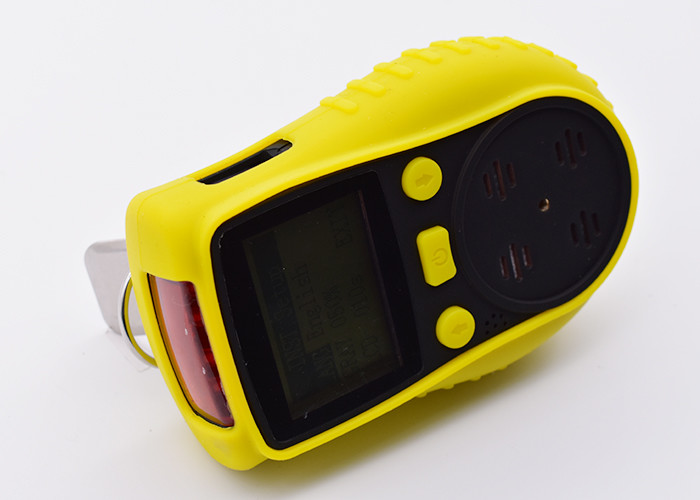

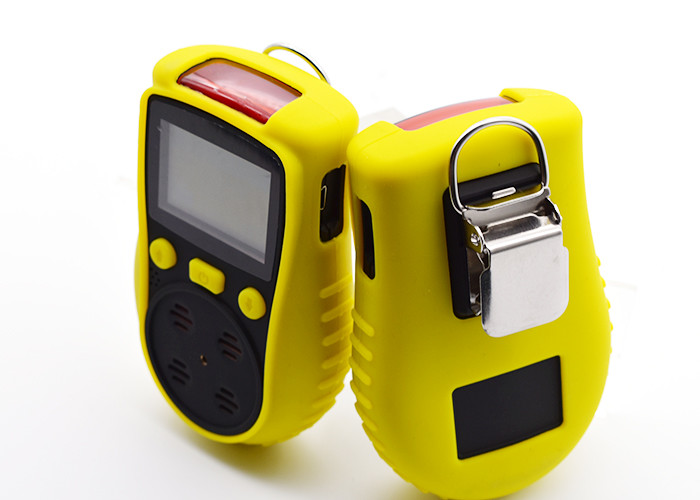

Portable CO Carbon Monoxide Gas Analyzer With Mini Size And Back Clip


Carbon monoxide poisoning is the most common type of fatal air poisoning in many countries. Carbon monoxide is colorless, odorless, and tasteless, but highly toxic. It combines with hemoglobin to produce carboxyhemoglobin, which usurps the space in hemoglobin that normally carries oxygen, but is ineffective for delivering oxygen to bodily tissues. Concentrations as low as 667 ppm may cause up to 50% of the body's hemoglobin to convert to carboxyhemoglobin. A level of 50% carboxyhemoglobin may result in seizure, coma, and fatality. In the United States, the OSHA limits long-term workplace exposure levels above 50 ppm.




Gas Detected CO
Detection principle Electrochemisty
Sampling Method Diffusion
Measure Range 0-100PPM, 0-500PPM, 0-1000PPM, 0-2000PPM, 0-5000PPM, 0-10000PPM
Resolution 0.1ppm, 1ppm
Precision ≤± 3% F.S.
Signal Output High-speed data transmission by USB, available for data downloading and
printing (optional function)
Charging Time 4~6h Working Time 14h
Battery 3.7V Capacity 2300mAh
Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT3 Degree of protection IP65
Alarm mode Sound, light, vibration Housing Material ABS+ leather case
Dimensions 131*83*35mm Weight 240g



Why choose us


A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung, Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.

B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market

C Quality: international top brands sensor(CITY, Alpha, Alpha, CITY, ION, Dynament, honeywell and etc) and IC /100% production test

D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.

E Completed certifications:ATEX/CE/Rohs/ISO9001/
