Diffusion type H2S Gas Detector 0-100PPM High Precision Electrochemistry Sensor

Basic Information
Place of Origin: China
Brand Name: Yuante
Certification: ATEX/CE
Model Number: YT-1200H-S-H2S
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 100 pieces/week
Detail Information
Sensor Type: Electrochemistry Detected Gas: H2S
Measure Range: 0-10ppm, 0-50ppm,, 0-100PPM, 0-500PPM, 0-1000PPM, 0-10000PPM Resolution: 0.01ppm, 0.1PPM, 1PPM
Sampling Method: Diffusion Type Color: Yellow
Warranty: One Year
High Light:

h2s gas monitors

,

h2s gas sensor


Product Description

Portable CO Carbon Monoxide Gas Analyzer With Mini Size And Back Clip



Hydrogen sulfide is a broad-spectrum poison, meaning that it can poison several different systems in the body, although the nervous system is most affected. The toxicity of H2S is comparable with that of carbon monoxide. It binds with iron in the mitochondrial cytochrome enzymes, thus preventing cellular respiration.



Exposure to lower concentrations can result in eye irritation, a sore throat and cough, nausea, shortness of breath, and fluid in the lungs (pulmonary edema). These effects are believed to be due to the fact that hydrogen sulfide combines with alkali present in moist surface tissues to form sodium sulfide, a caustic.[45] These symptoms usually go away in a few weeks.



Long-term, low-level exposure may result in fatigue, loss of appetite, headaches, irritability, poor memory, and dizziness. Chronic exposure to low level H2S (around 2 ppm) has been implicated in increased miscarriage and reproductive health issues among Russian and Finnish wood pulp workers.



Short-term, high-level exposure can induce immediate collapse, with loss of breathing and a high probability of death. If death does not occur, high exposure to hydrogen sulfide can lead to cortical pseudolaminar necrosis, degeneration of the basal ganglia and cerebral edema. Although respiratory paralysis may be immediate, it can also be delayed up to 72 hours.



Product Overview

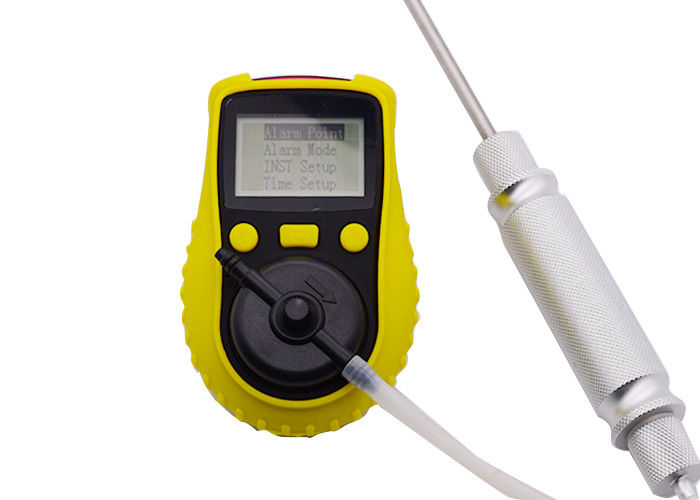

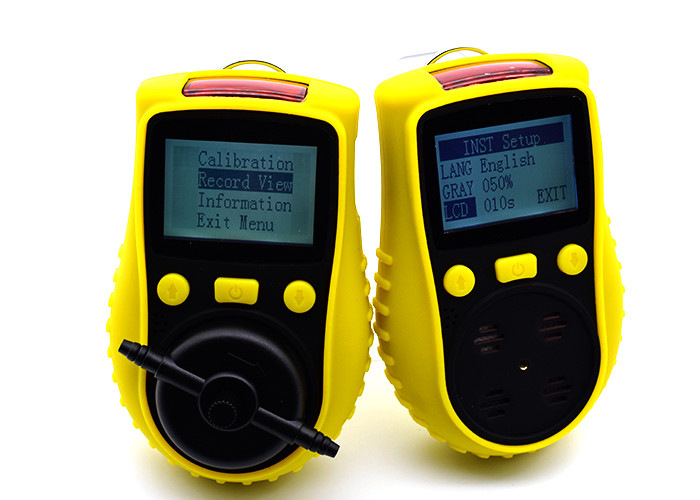

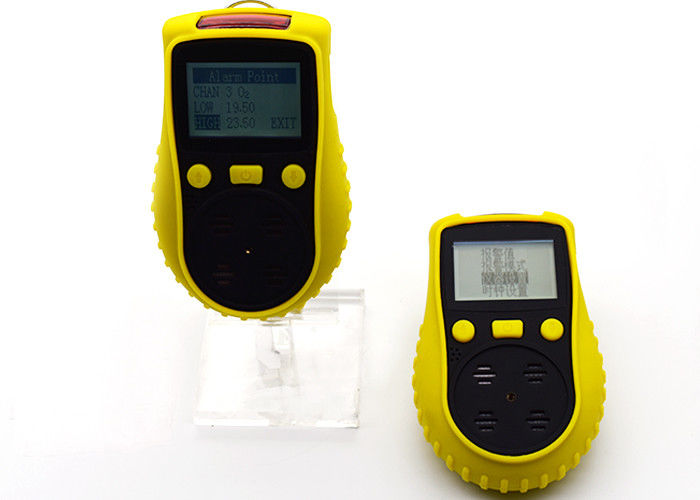

YT-1200H-S series gas detector is kind of mini size and high accuracy portable multi gas detector. Easy to operate, comprehensive functions, can measure 4 common gas hazards: carbon monoxide, hydrogen sulphide, flammable gases and oxygen depletion, other multi gases are available for customization. The detector is with back clip, protected by silicone case, suitable for different kinds of situations.



Specification

Gas Detected H2S
Detection principle Electrochemisty
Sampling Method Diffusion
Measure Range 0-10ppm, 0-50ppm,, 0-100PPM, 0-500PPM, 0-1000PPM, 0-10000PPM
Resolution 0.01PPM, 0.1ppm, 1ppm
Precision ≤± 3% F.S.
Signal Output High-speed data transmission by USB, available for data downloading and
printing (optional function)
Charging Time 4~6h Working Time 14h
Battery 3.7V Capacity 2300mAh
Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT3 Degree of protection IP65
Alarm mode Sound, light, vibration Housing Material ABS+ leather case
Dimensions 131*83*35mm Weight 240g





Diffusion type H2S Gas Detector 0-100PPM High Precision Electrochemistry Sensor 0
