Fixed 0-100%LEL H2 Hydrogen Gas Detector With Temperature & Humidity Display

Fixed 0-100%LEL H2 Hydrogen Gas Detector with Temperature & Humidity Display

Product Profile

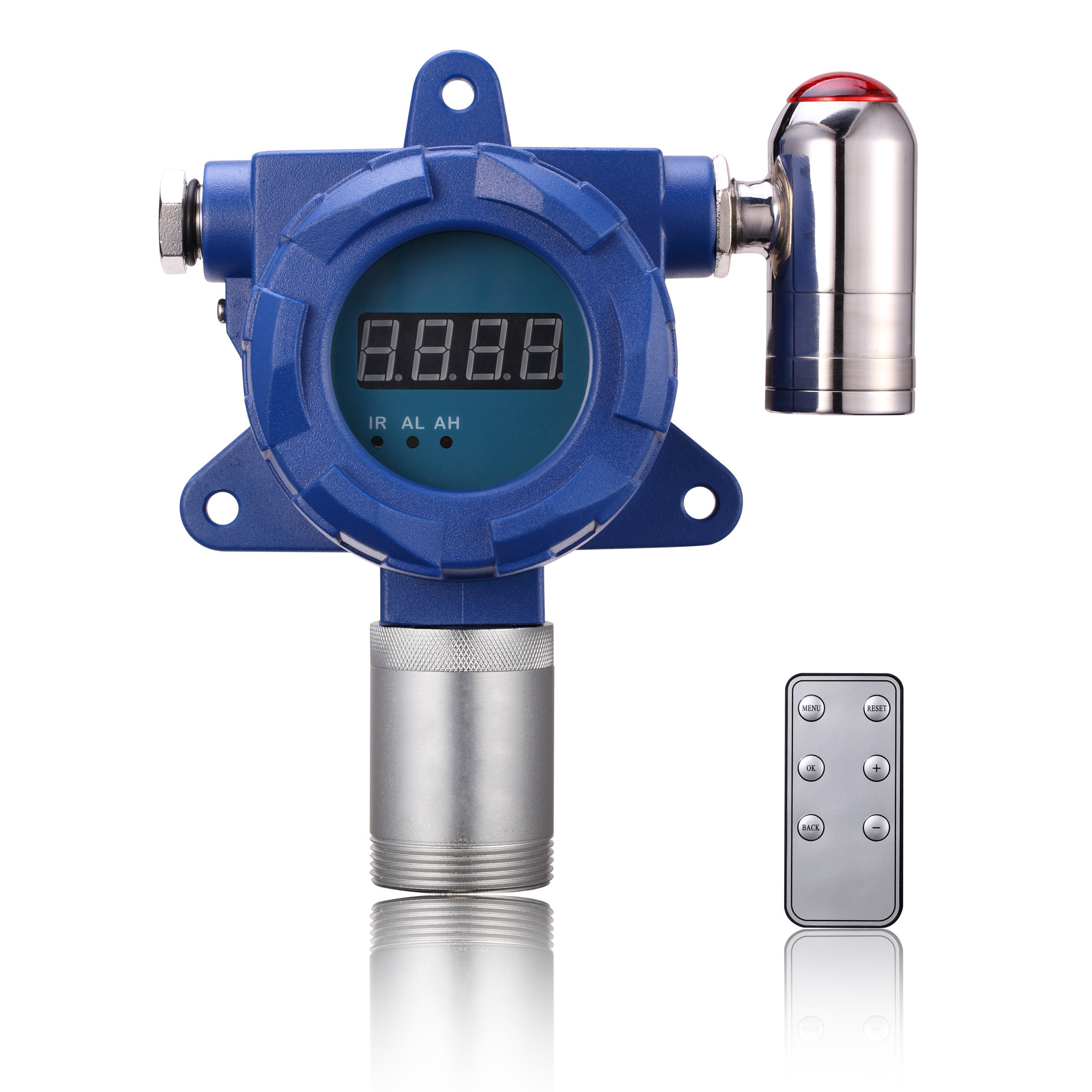

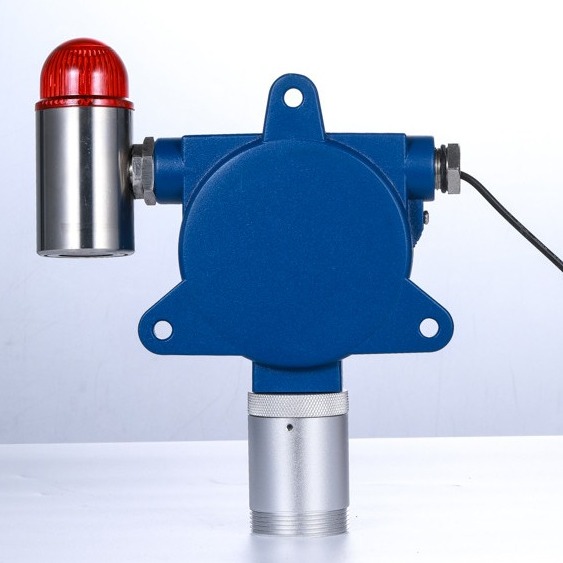

The YT-95H series gas detector (with alarm light) is a wall-mounted device that provides continuous 24-hour monitoring of gas concentrations in various locations or pipelines. It employs first-rate global sensors and advanced microprocessing technology, offering data display and high/low alarm functions, rapid response speed, high accuracy, and exceptional stability. The detector operates on a 24V DC power supply and delivers 4-20mA, RS485, and relay signal outputs. It is explosion-proof and suitable for a wide range of applications.

Features

• Working Voltage: 12-36V DC
• Features dual sound and light alarm, with customizable alarm points.
• An infrared controller enables remote control of alarm point settings, zero point calibration, and address modification.
• Capable of outputting one or two switch signals, driving external devices such as ventilation fans or solenoid valves.
• Shell: Constructed from die-cast aluminum + stainless steel (with alarm light)

Product Advantages

1. The explosion-proof design is swift, reliable, and stable, boasting an explosion-proof grade of Ex dⅡCT6.
2. The equipment comes with a self-calibration function, and three standard keys will be used for on-site maintenance.
3. The equipment is compatible with all types of controlled alarms, PLC, DCS, and other control systems, enabling remote monitoring.
