Home > Products> Single Gas Detector> Mini Size PH3 Gas Detector with IECEX Certification and IP66/IP68 Protection for Portable Single Gas Detection

Mini Size PH3 Gas Detector with IECEX Certification and IP66/IP68 Protection for Portable Single Gas Detection

Mini Size PH3 Gas Detector with IECEX Certification and IP66/IP68 Protection for Portable Single Gas Detection
Mini Size PH3 Gas Detector with IECEX Certification and IP66/IP68 Protection for Portable Single Gas Detection
Mini Size PH3 Gas Detector with IECEX Certification and IP66/IP68 Protection for Portable Single Gas Detection Mini Size PH3 Gas Detector with IECEX Certification and IP66/IP68 Protection for Portable Single Gas Detection Mini Size PH3 Gas Detector with IECEX Certification and IP66/IP68 Protection for Portable Single Gas Detection Mini Size PH3 Gas Detector with IECEX Certification and IP66/IP68 Protection for Portable Single Gas Detection
Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ATEX/EMC/IECEX
Model Number: Minimeta
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 work days
Payment Terms: T/T,Western Union
Supply Ability: 3000 pieces per month
Get Best Price Contact Now
Detail Information
Gas Detected: PH3 Detection Principle: Diffusion
Measure Range: 0-5、20、50、100ppm Resolution: 0.1ppm
Accuracy: ≤±2-5%FS Response Time(T90): 15 To 30s
Principle: Electrochemical Principle Display: Gas Name, Battery Power, Concentration Unit, Measured Value
Alarm Mode: Sound, Light, Vibration Alarm Alarm Type: Low Alarm, High Alarm, STEL, TWA, Low Battery Optional Calibration Due And Bump Test Due
Power Supply Mode:: 3.6V Dry Battery (non-rechargeable And Replaceable) Explosion-proof Certification: IECEx, ATEX
Protection Class: IP66/68 Working Temperature: -20℃ To 55℃
Working Humidity (non-condensing): 0-95%RH Working Air Pressure: 86 To 106kpa
Dimensions: 90mm*60mm*33mm (length*width*thickness) Weight (With Clip): 125g
Highlight:

Mini Size PH3 Gas Detector

,

Lightweight PH3 Gas Detector

,

IECEX Certification PH3 Gas Detector

Product Description

Mini Size PH3 Gas Detector IECEX Certification IP66/IP68 Lightweight With Clip
Gas Information
Phosphine (PH3) has shown excellent performance in pest control. Its mechanism involves strong toxic effects on enzymes in insect and rodent cells. This makes it ideal for fumigation and insect elimination in grain storage facilities, though it only becomes effective when concentrations reach specific standards.
Phosphine (PH3) is classified as highly toxic gas. This biological activity also affects humans, making it unsafe for personnel to enter grain depots during fumigation to monitor concentration levels. The PH3 gas detector enables real-time concentration monitoring without requiring physical entry into the storage area.
Product Overview
MiniMeta is an IECEX/ATEX/EMC certified single-gas detector capable of monitoring hundreds of user-selected toxic gases. Designed for user-friendly operation, it features replaceable batteries and sensors for long-term protection. This detector provides a cost-effective, long-term gas monitoring solution.
Product Images

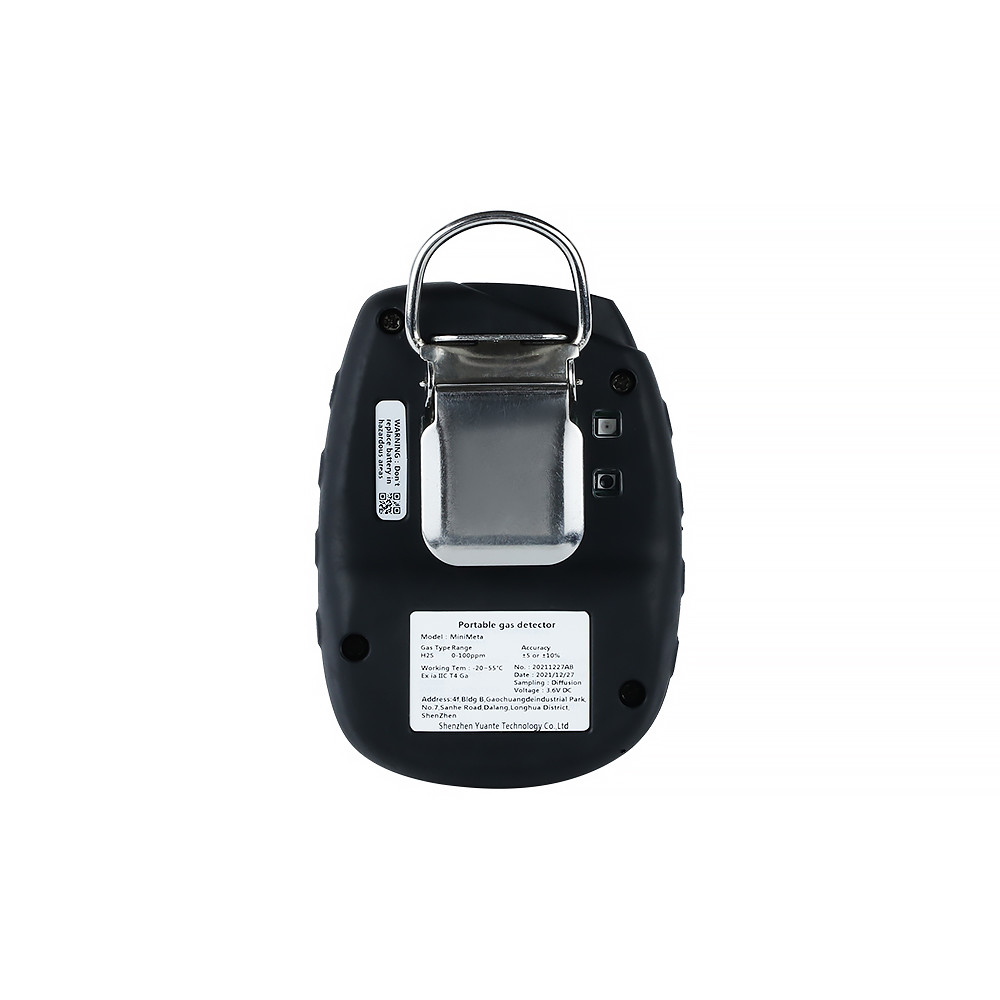

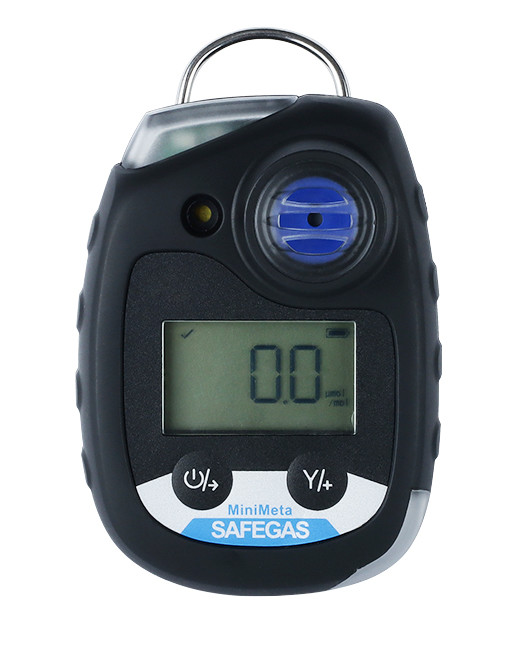

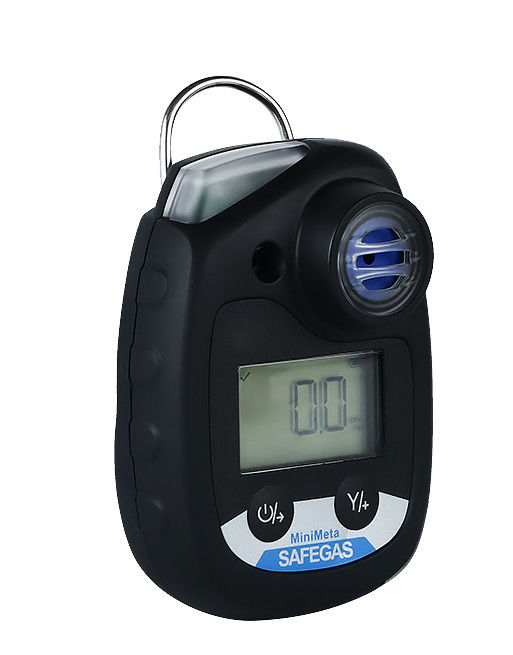

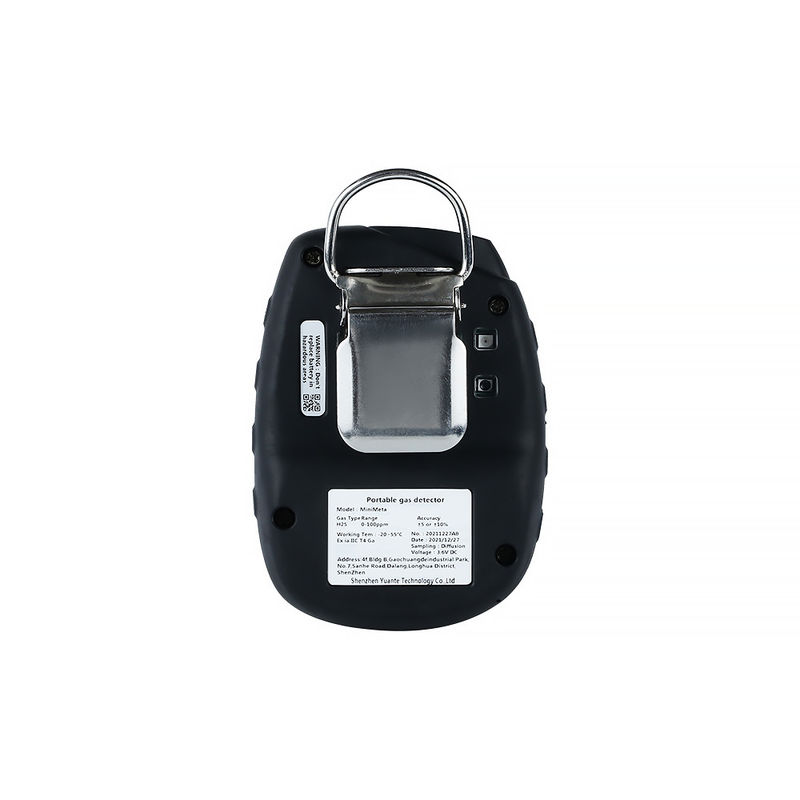

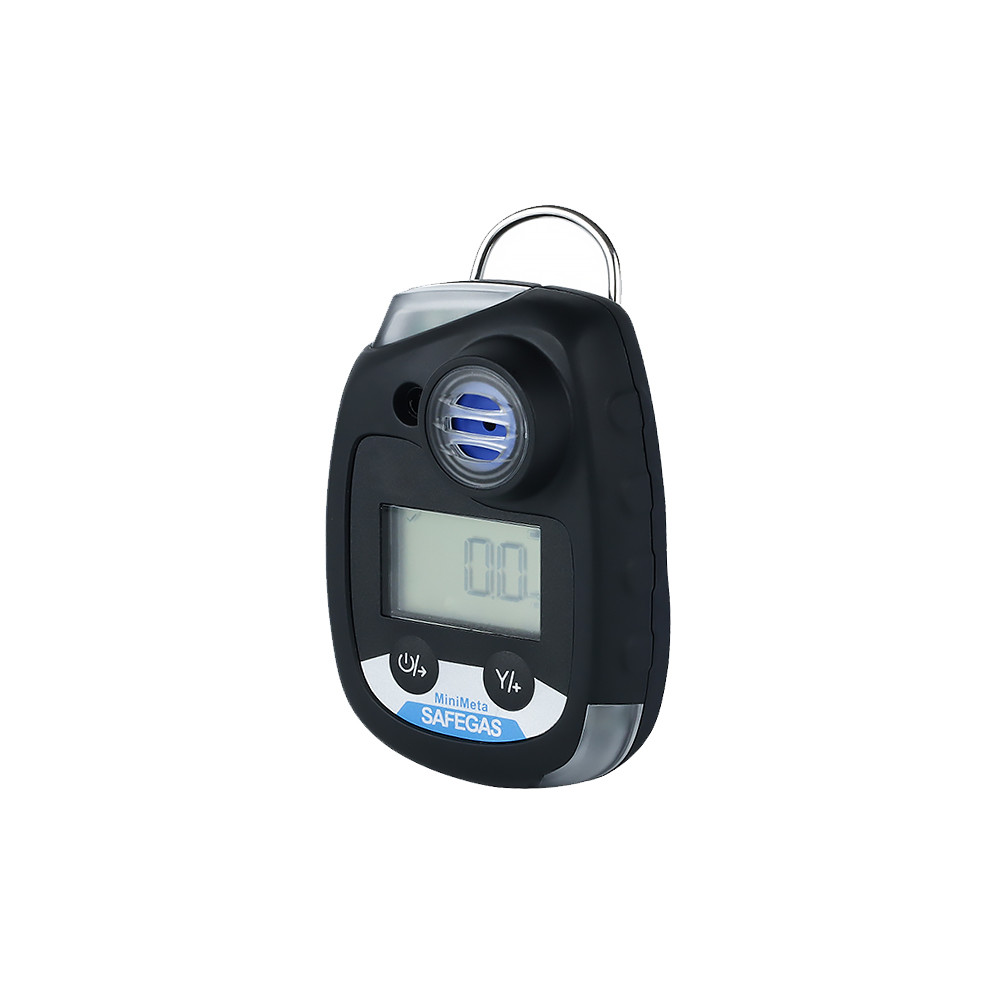

MiniMeta PH3 Gas Detector front view MiniMeta PH3 Gas Detector side view MiniMeta PH3 Gas Detector display close-up MiniMeta PH3 Gas Detector with clip attachment
Technical Specifications
Parameter Specification
Detect Gas PH3
Sensor Type Electrochemical
Sampling Method Diffusion
Measure Range 0-5,20,50,100ppm
Resolution 0.1ppm
Precision ≤± 3% F.S.
Response Time ≤30s(T90)
Unit PPM
Display Gas name, concentration unit, measured value, battery level
Alarm Mode Sound, light, vibration alarm with customizable high/low settings
Alarm Type Low alarm, high alarm, STEL, TWA, low battery
Display Type LCD Display
Operating Language Chinese/English
Size 90*60*33mm
Weight 125g
Working Temperature -20ºC~50ºC
Working Humidity 0-95%RH
Working Air Pressure 86~106kpa
Product Advantages
  • IP68 water- and dust-resistant case
  • Low power consumption with 2 years standby time, no battery charging or calibration needed
  • Compatible with single/multi unit docking station for daily bump test and calibration (Optional)
  • Event and data logging function (Optional)
  • Self-test function for enhanced safety through automatic diagnostics
  • Compact size, lightweight design with back clip for easy carrying
  • 95db@30cm buzzer alarm, 2 high-brightness red LED lights and vibration alarm
  • Multiple numerical displays: real-time value, TWA, STEL, MAX, MIN
Standard Package
  • Portable gas detector: 1 piece
  • Calibration cap: 1 piece
  • User manual: 1 piece
  • Certificate of conformity/Warranty card: 1 piece
Why Choose Us?
  • R&D team experience: over 25 years
  • Company certification: ISO9001, ISO45001
  • Product certification: IECEx (the only one in China), ATEX, CE
  • Delivery: 5-7 days
  • Yearly capacity: 80,000 units
  • Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems for 16 years. With gas detectors as our core product, we provide complete production lines and solutions tailored to various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Product Line
Our comprehensive product range includes portable types, fixed types, and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Safegas product line overview
Certifications
Our products hold international explosion-proof certifications including IECEX, ATEX, CE, TEST Report, ISO 9001, and ISO 45001, ensuring superior product quality and competitive pricing.
Safegas product certifications
Corporate Partners
We proudly serve major international companies including Huawei, Coca-Cola, Samsung, Nestlé and more.
Safegas corporate partners
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for more than 10 years.
What is the MOQ?
Usually it is 1 piece.
How about the quality of your products?
Our products are made with imported sensors and components, and all products are certified.
How long is the warranty time of the products?
The warranty period is 1 year from the factory date, and we also provide lifetime maintenance.
