SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission

Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ATEX/IECEX/CE/EMC
Model Number: SG100
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Aluminum Suitcase Packing
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/day
Detail Information
Gas Detected: NH3 Measure Range And Resolution: 0-100ppm
Accuracy: ≤±2-5%FS Explosion-proof Certification: IECEX, ATEX, CE, EMC
Protection Grade: IP66/68 Communication Mode: 4-20mA、RS485 1~5V,Optional Hart
Wireless(Optional): Support LORA Or 4G Relay: 3 Relays, Low/high/fault Alarm Relay
Working Temperature: –20℃~50℃ Size: 157.8x128.8x69.6mm
Weight: 1.0Kg
Highlight:

Wireless Transmission NH3 Gas Detector

,

LoRa NH3 Gas Detector

,

4G NH3 Gas Detector


Product Description

Product Description

SG100 Fixed Gas Detector

SG100 series is a cost-effectivegas detector for continuous monitoring of toxic gases, oxygen,flammable, VOC gases.It isIECEx, ATEXcertified,with intrinsically safe explosion grade.Havinga2 wire or 3 wire4 to 20 mA analog output, RS485 modbus output, optional HART output,making it to be compatible with mostcontrol systems. With optional wirelessdata transmission,customer is able to review, download the data remotely.Support both magnetic and remote control,flexible for setting.

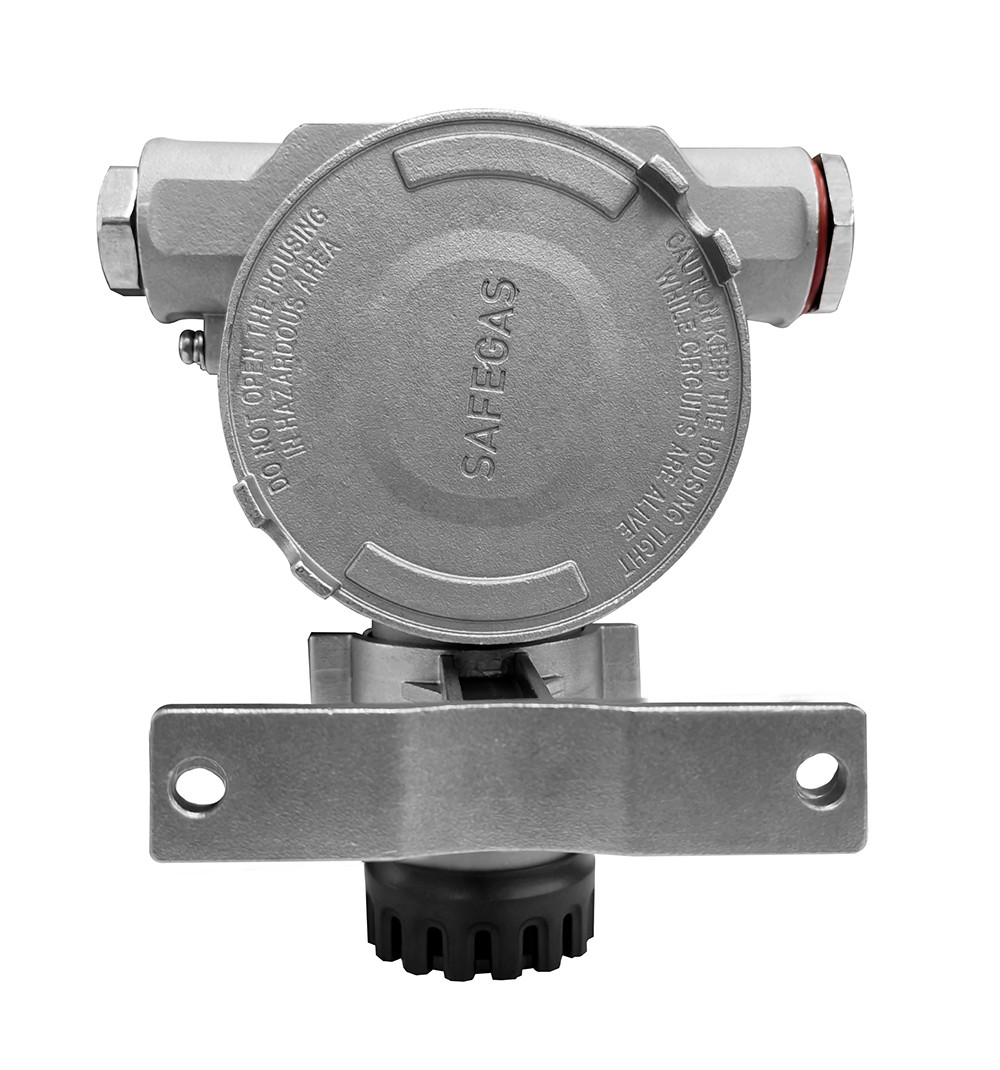

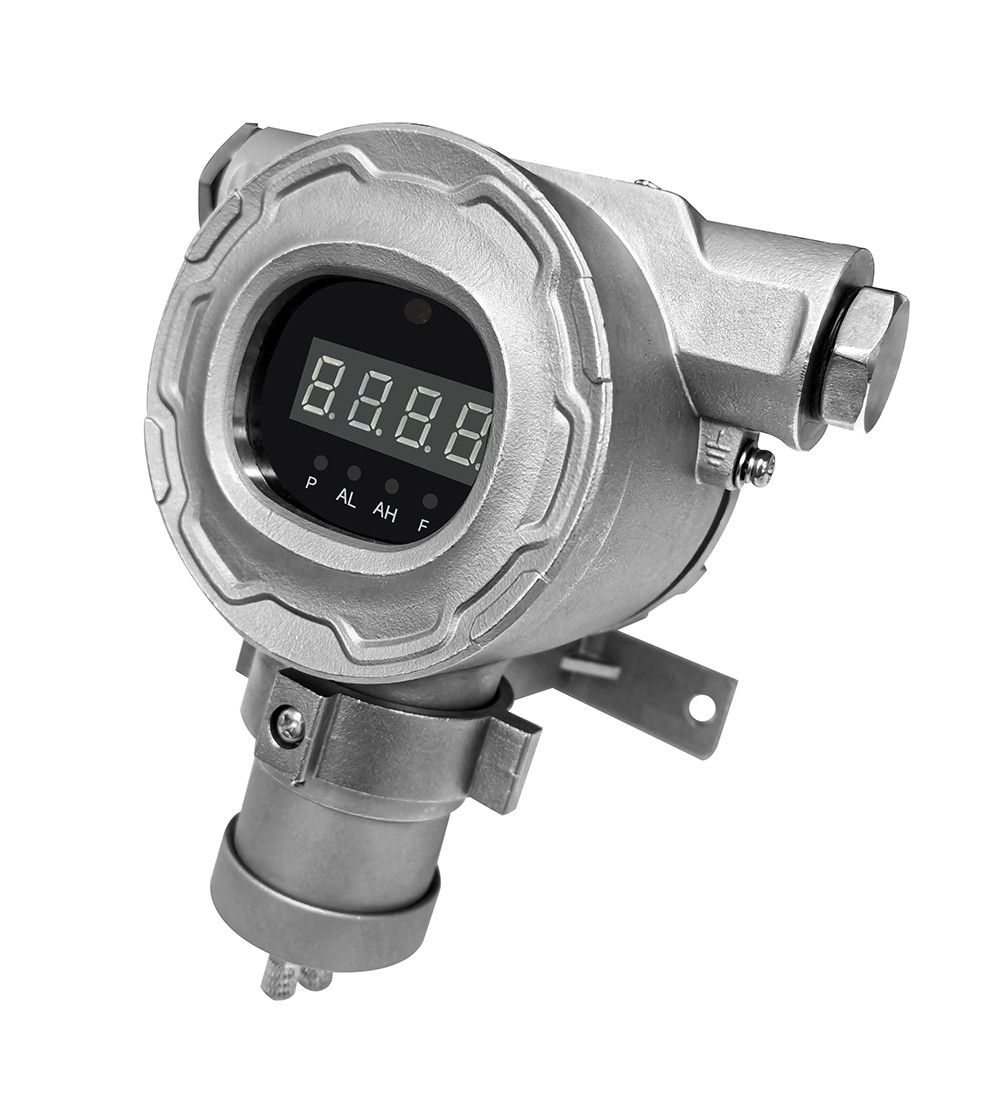

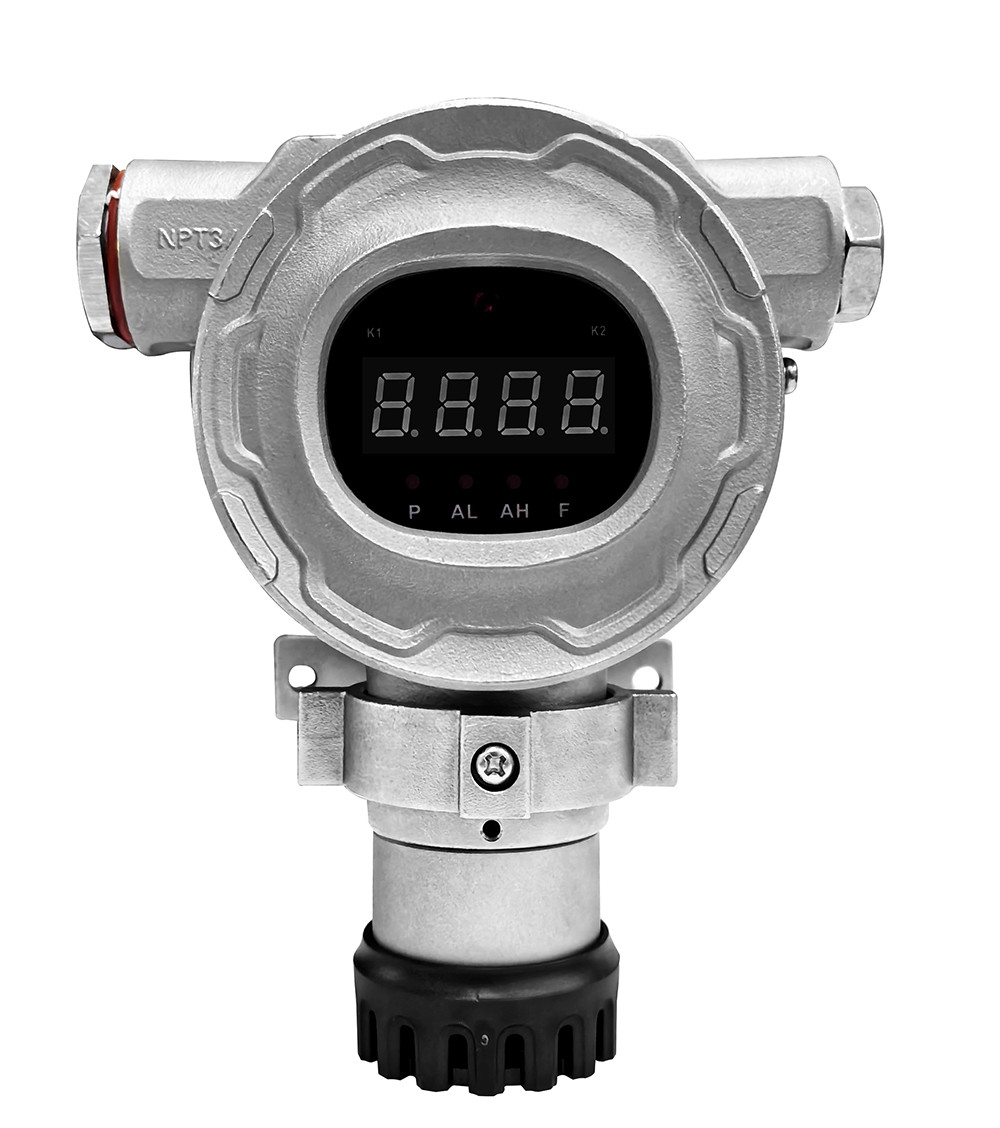

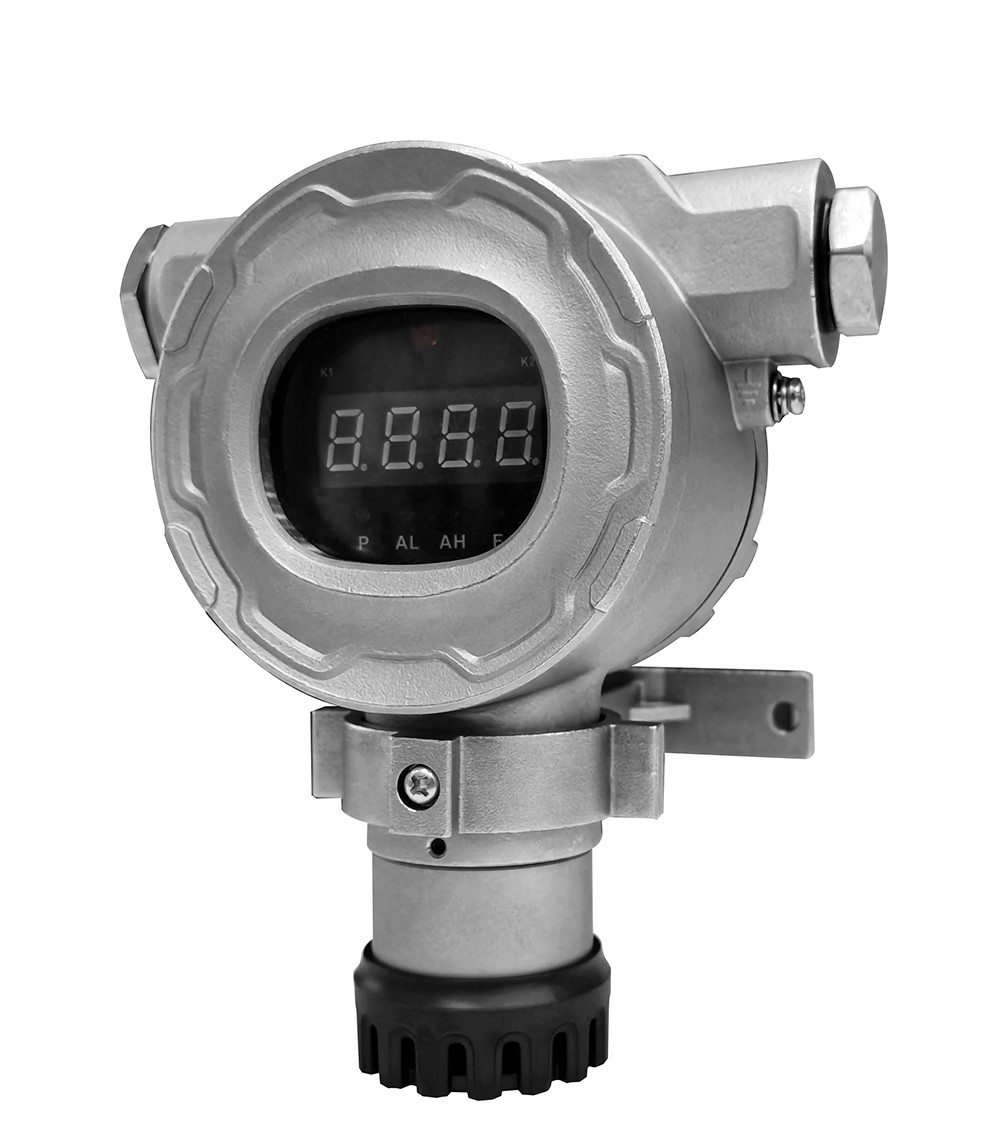

Product Picture









SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 0SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 1SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 2

SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 3

SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 4



Product Advantage

  • IP66/IP68 water & dust resistant
  • Intelligentplug and play sensor module.the module supportcalibration by Safegas PC software, making replacement and maintenance easier.
  • With standard splash guard to protect sensor for outdoor installation or environment with water splash.
  • Smalland light,weight is only 1 kg,andthe detector comes with standard mounting bracket,easy for installation.
  • Standard 4-20 mA analog signal output andRS485 modbus signal output,optional Hart output, 2wire output.Compatible with most of control systems.
  • The detector comes with 3relays, including low/high/fault alarm relay(Optional)
  • Support both magnetic andremote control, flexible for setting.



Specifications:



Detected Gas NH3
Measure Range 0-100PPM
Install Method Wall-mounted, piping type, flow-type
Output signal 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision ≤±1%F.S. (to be specialized)
Zero shift ≤±1%(F.S./year)
Display 4 digits Nixie tube display.
Connection mode G3/4 external thread explosion-proof flexible pipe
Thread Size Standard M20*1.5, 3/4NPT
Temperature –20℃~50℃
Humidity 10-95%RH (non-condensing)
Explosion-Proof Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Degree of protection IP66/IP68
Material Sensor housing: aluminum alloy or 316 stainless steel
Power 12-24V DC
Dimensions 158×129×70mm
Weight ≤1kg
Approval CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX
Warranty 12 months



Gas

SG100 model can detect sigle gas, here's some gases we can detect:

SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 5

SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 6

SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 7







Product Application

Chemical Industry

Environmental Monitoring

Healthcare Applications

Automotive Industry

Industrial Safety

Wastewater Treatment

Greenhouse Gas Monitoring

Oil and Gas Exploration

Food and Beverage Production

Mining and Mining Operations


China Xx Geological Survey Institute detects oxygen, hydrogen, and ammonia: SG100-A Application Case
Detection requirements: 1. Due to research needs, the project team purchased ammonia cylinders and hydrogen cylinders.
In order to avoid gas leakage and endanger life safety, it is necessary to install ammonia detectors and hydrogen detectors in the cylinders storage room for 24-hour detection.
2. The staff will conduct research experiments in the laboratory for several hours. The concentration of oxygen in the room needs to be monitored in real time to prevent accidents.
3. It is necessary to let people on site and the security room know the alarm status

Solution:
1. Gas detector: SG100-A-H2S: SG100 with imported H2S sensor, with sound and light alarm SG100-A-NH3: SG100 with imported NH3 sensor, with sound and light alarm
SG100-A- O2 : SG100 with imported O2 sensor, with sound and light alarm
2. Control panel: YT-1600H

Solution features:
1. All recommended products meet customer needs.
2. Equipped with original imported sensor to ensure accurate and stable detection. With alarm function, when the concentration reaches the alarm value, the sound and light alarm will be activated to remind the personnel on site.
3. Installing YT-1600H in the security room, which can collect data from each detector in real time and monitor whether the detector status is normal. When the detector alarms, YT-1600H will sound an alarm and display an alarm, and the on-duty personnel in the security room can know the alarm status and take corresponding measures.
SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 8


Why choose us?

1. R&D team experience: over 25 years.

2. Company certification: ISO9001, ISO45001

3. Product certification: IECEx (the only one in China), ATEX, CE

4. Delivery: 5-7 days

5. Yearly capacity: 80,000 units

6. Service: Professional sales staff provide 7*24 hours service



Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.



Product line

Our products contain portable types, fixed types and controller panels.

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000

Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

Controller panels: YT-1100H, YT-1600H

SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 9



Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.

SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 10



Company we cooperated

Huawei, Cocacola, Samsung, Nestel and so on.

SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 11

FAQs



Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.


Q2:What is the MOQ?
A2:Usually it is 1 piece.


Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.


Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.



SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 12SS316 Enclosure Fixed NH3 Gas Detector with Wireless 4G/ LoRa Transmission 13
