Portable CO Gas Detector with IECEx and ATEX Certification
Product Specifications
| Detect Gas | Carbon Monoxide (CO) |
| Sensor Type | Electrochemical |
| Sampling Method | Diffusion |
| Measure Range | 0-1000PPM |
| Resolution | 1PPM |
| Precision | ≤± 3% F.S. |
| Response Time | ≤30s(T90) |
| Unit | PPM |
| Display | Gas name, concentration unit, measured value, electricity |
| Alarm Mode | Sound, light, vibration alarm, high and low alarm values can be set by user |
| Alarm Type | Low alarm, high alarm, STEL, TWA, low battery |
| Operating Language | Chinese/English |
| Size | 90*60*33mm |
| Weight | 125g |
| Working Temperature | -20ºC~50ºC |
| Working Humidity | 0-95%RH |
| Working Air Pressure | 86~106kpa |
Product Overview
MiniMeta is a highly reliable and versatile single-gas detector featuring IECEx, ATEX, and EMC certifications. These credentials demonstrate compliance with the strictest international safety and electromagnetic compatibility standards, ensuring suitability for use in explosive atmospheres and hazardous environments.
Key Features
- Powerful Detection Capability: Detects hundreds of user-defined toxic gases including carbon monoxide, hydrogen sulfide, and other noxious gases with high precision for industries including oil and gas, chemical manufacturing, mining, and environmental monitoring.
- User-Friendly Design: Intuitive interface with simple controls and clear displays allows effortless operation, even for users with limited technical knowledge. Features distinct audible and visual alarms.
- Replaceable Components: Both battery and sensor are replaceable for long-term operation, ensuring continuous monitoring and accurate readings while reducing overall maintenance costs.
- Cost-Effective Solution: Strategically designed to provide a high-quality, affordable gas monitoring system that yields long-term benefits for businesses with budget constraints.

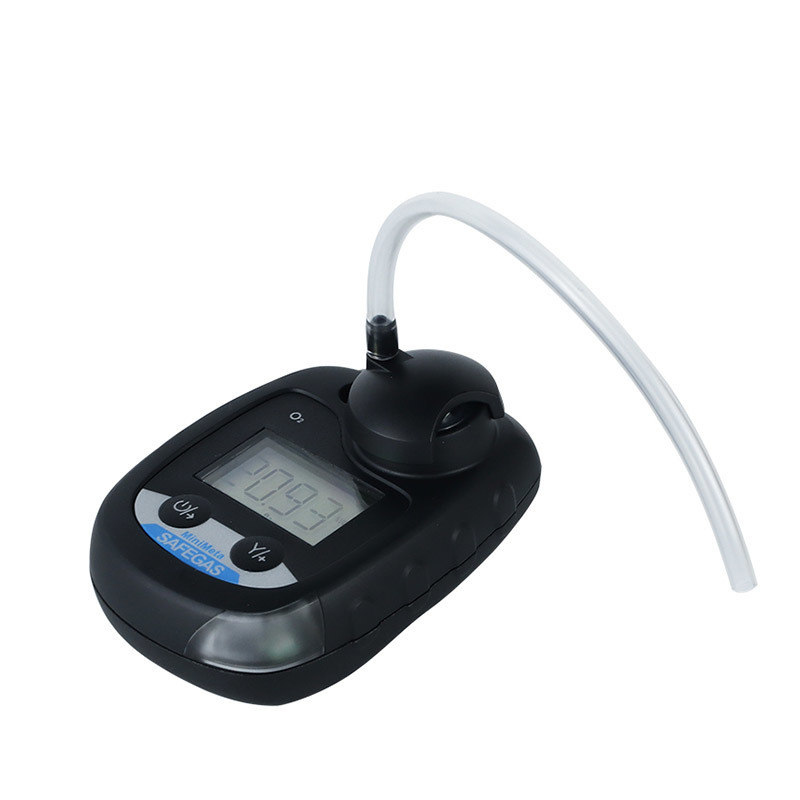

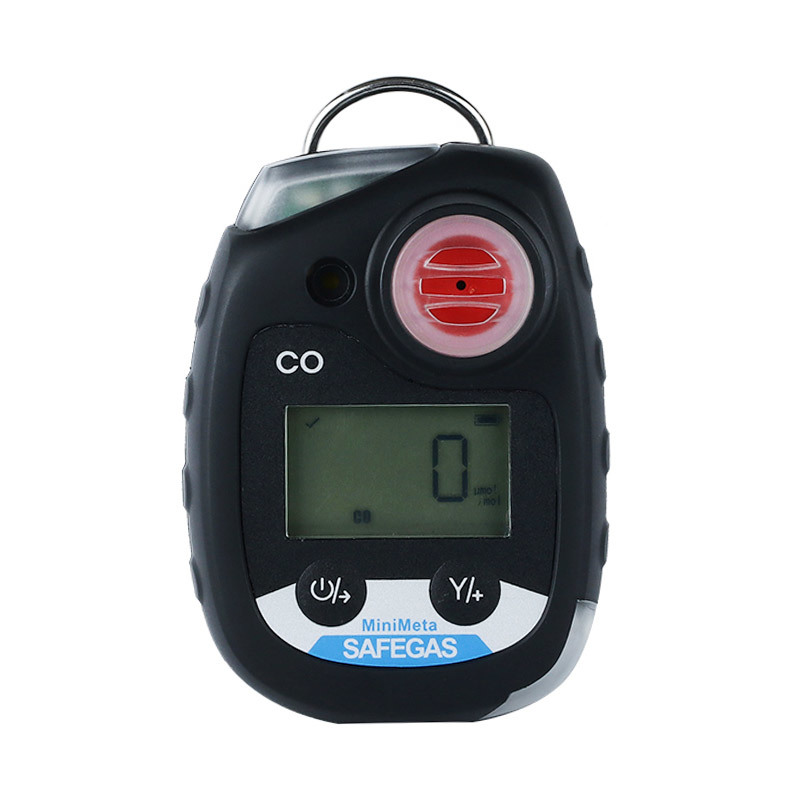

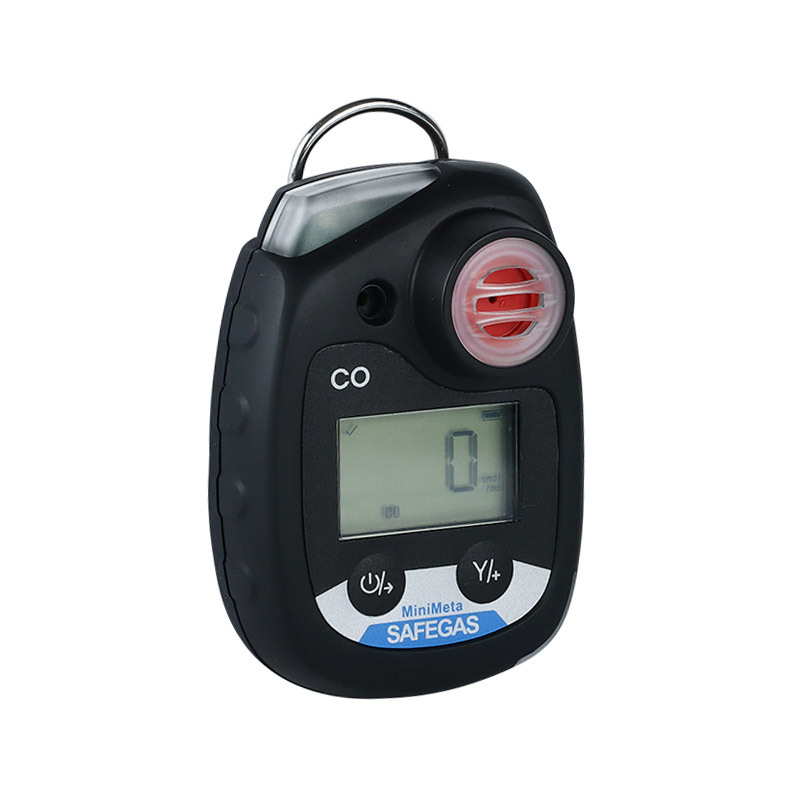

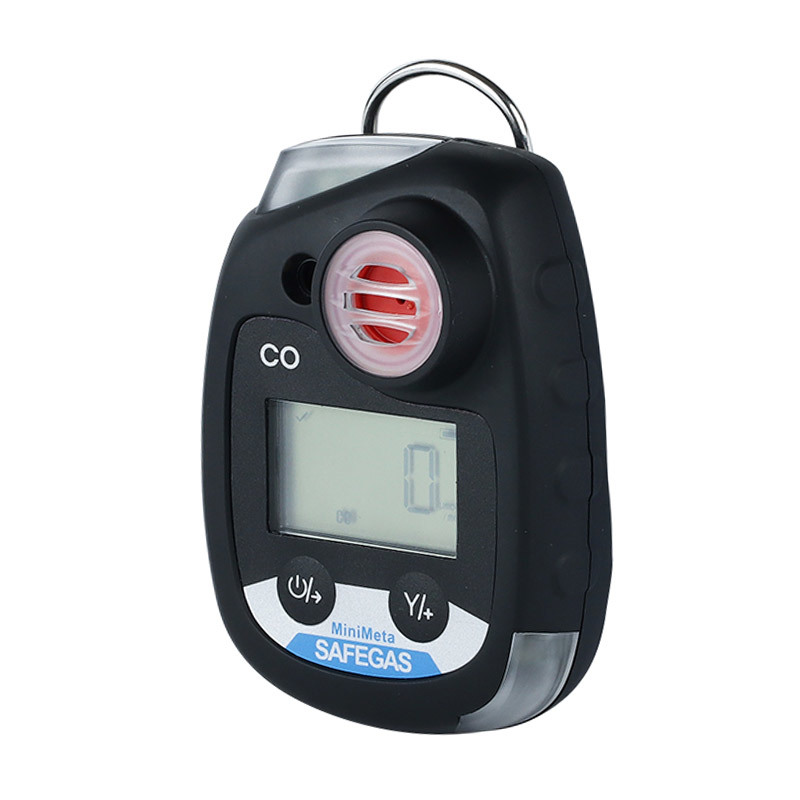

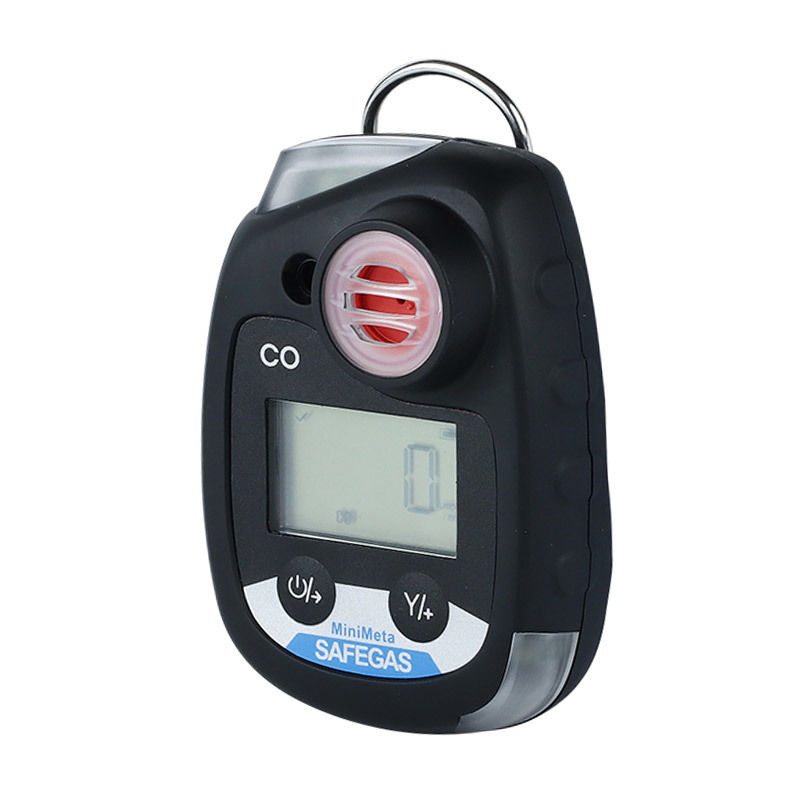

Product Images
Product Advantages
- IP68 water- and dust-resistant case
- Low power consumption with 2 years standby time, no battery charging or calibration needed
- Optional single/multi unit docking station for daily bump test and calibration
- Optional event and data logging function
- Self-test function for improved safety through automatic self-testing
- Small size, lightweight design with back clip for easy carrying
- 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
- Multiple numerical display including real-time value, TWA, STEL, MAX, MIN
Standard Package
- Portable gas detector: 1 piece
- Calibration cap: 1 piece
- User manual: 1 piece
- Certificate of conformity/Warranty card: 1 piece
Why Choose Us?
R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Product Line
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
Our products have obtained international explosion-proof certifications including IECEx, ATEX, CE, TEST Report, ISO 9001, and ISO 45001, ensuring product quality comparable to international brands like Honeywell, MSA, and RAE, but with competitive pricing.
Company Partners
We have collaborated with major companies including Huawei, Coca-Cola, Samsung, Nestlé and more.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for more than 10 years.
What is the MOQ?
Usually it is 1 piece.
How about the quality of your products?
Our products are made with imported sensors and components and are fully certified.
How long is the warranty time of the products?
The warranty period is 1 year from the factory, and we also provide lifetime maintenance.
