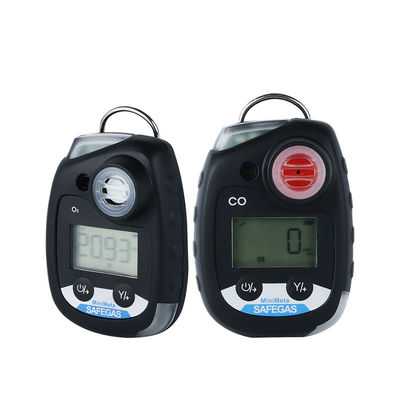

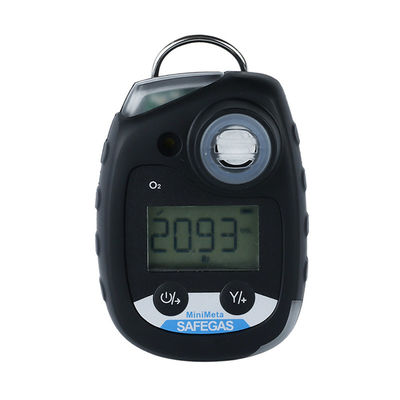

Product Overview
MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is designed to offer a low long-term ownership cost of a gas monitoring system.
Product Advantages
- IP68 water- and dust-resistant case
- Low power consumption with 2 years standby time, no need battery charge and calibration
- With Single /multi unit docking station to perform daily bump test and calibration (Optional)
- With event and data logging function (optional)
- With self-test function, which can improve safety by automatic self-test
- Small size, light weight and with back clip for easily carry
- 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
- Real time value, TWA, STEL, MAX, MIN multiple data display
Technical Parameters
| Gas Detected |
Specified according to application. |
| Detection Principle |
Diffusion |
| Measure range |
Specified according to application. |
| Resolution |
Specified according to application. |
| Accuracy |
≤±2-5%FS (depending on the specific sensor) |
| Response time(T90) |
15-30s (depending on the specific sensor) |
| (Detection) Principle |
Electrochemical principle |
| Unit |
PPM, mg/m³, %VOL |
| Display |
Gas name, concentration unit, measured value, battery power |
| Alarm mode |
Sound, light, vibration alarm, high and low alarm values can be set by yourself |
| Alarm type |
Low alarm, high alarm, STEL, TWA, low battery optional calibration due and bump test due |
| Power supply mode |
3.6V dry battery (non-rechargeable) |
| Explosion-proof grade |
ExiaIICT4Ga |
| Protection class |
IP68 |
| Executive standards |
GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2 |
| Working temperature |
-20℃~55℃ |
| Working humidity |
0-95%RH (non-condensing) |
| Working air pressure |
86~106kpa |
| Dimensions |
90*60*33mm (length*width*thickness) |
| Weight |
125g (With Clip) |

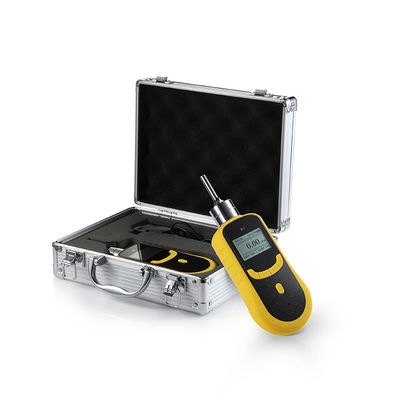

Product Images
