YT-95H Continuous Benzene C6H6 Gas Detector with PID Sensor for Explosion Proof VOC Monitoring in Chemical Plants

YT-95H Continuous Benzene C6H6 Gas Detector with PID Sensor for Explosion Proof VOC Monitoring in Chemical Plants
YT-95H Continuous Benzene C6H6 Gas Detector with PID Sensor for Explosion Proof VOC Monitoring in Chemical Plants
YT-95H Continuous Benzene C6H6 Gas Detector with PID Sensor for Explosion Proof VOC Monitoring in Chemical Plants YT-95H Continuous Benzene C6H6 Gas Detector with PID Sensor for Explosion Proof VOC Monitoring in Chemical Plants YT-95H Continuous Benzene C6H6 Gas Detector with PID Sensor for Explosion Proof VOC Monitoring in Chemical Plants YT-95H Continuous Benzene C6H6 Gas Detector with PID Sensor for Explosion Proof VOC Monitoring in Chemical Plants
Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: CE/ATEX
Model Number: YT-95H
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 working days
Payment Terms: T/T
Supply Ability: 50 pcs/day
Get Best Price Contact Now
Detail Information
Target Gas: Benzene (C6H6) Sensing Principle: PID
Accuracy: ≤±2% FS Response Time (T90): ≤20s
Material: Aluminum Alloy Display: 4-digit Nixie Tube
Color: Blue Protection Class: IP65
Dimension: 180×150×90mm
Highlight:

PID Sensor Benzene Gas Detector

,

Explosion Proof C6H6 Gas Monitor

,

Continuous Monitoring VOC Gas Analyzer

Product Description

YT-95H Continuous Benzene C6H6 Gas Detector For Chemical Plant & Painting Workshop VOC Monitoring
Product Overview

YT-95H is an online fixed explosion-proof gas detector designed for continuous benzene (C6H6) monitoring. This cost-effective gas transmitter features PID sensor technology with measuring ranges of 0-100/200/1000ppm and resolution of 0.1ppm/1ppm. It meets Ex d IIC T6 Gb explosion-proof standards and IP65 protection rating. Supporting multiple signal outputs and infrared remote operation, it enables 24-hour continuous benzene concentration monitoring in chemical and painting industrial environments.

Introduction to Benzene (C6H6)

Benzene is a highly toxic volatile organic compound commonly generated in chemical synthesis, painting workshops, printing, and petrochemical processes. Long-term exposure can severely damage the human hematopoietic system. Real-time continuous monitoring of benzene concentration helps prevent occupational poisoning risks for on-site operators.

Key Technical Specifications
Parameter Value
Model YT-95H
Target Gas Benzene (C6H6)
Detection Principle PID sensor
Optional Measuring Ranges 0-100ppm, 0-200ppm, 0-1000ppm
Optional Resolution 0.1ppm, 1ppm
Accuracy ≤±2%FS (sensor-dependent)
Response Time (T90) ≤20s
Repeatability ≤±1%
Annual Zero Shift ≤±1% F.S./year
Display 4-digit nixie-tube display
Connection G1/2 external-thread for explosion-proof flexible pipe; Thread M45*2mm
Power Supply 12-36V DC
Signal Output 3-wire 4-20mA, RS485 Modbus, relay output
Wireless Option LoRa, 4G (optional)
Alarm Optional sound-light alarm >90dB, adjustable alarm threshold
Explosion-proof Grade Ex d IIC T6 Gb
Protection Class IP65
Working Temperature -20℃ ~ 50℃
Working Humidity 0-95%RH (non-condensing)
Housing Material Die-cast aluminum; sensor housing: aluminum alloy or 316 stainless steel
Dimension 180×150×90mm
Weight ≤1.6kg
Product Pictures

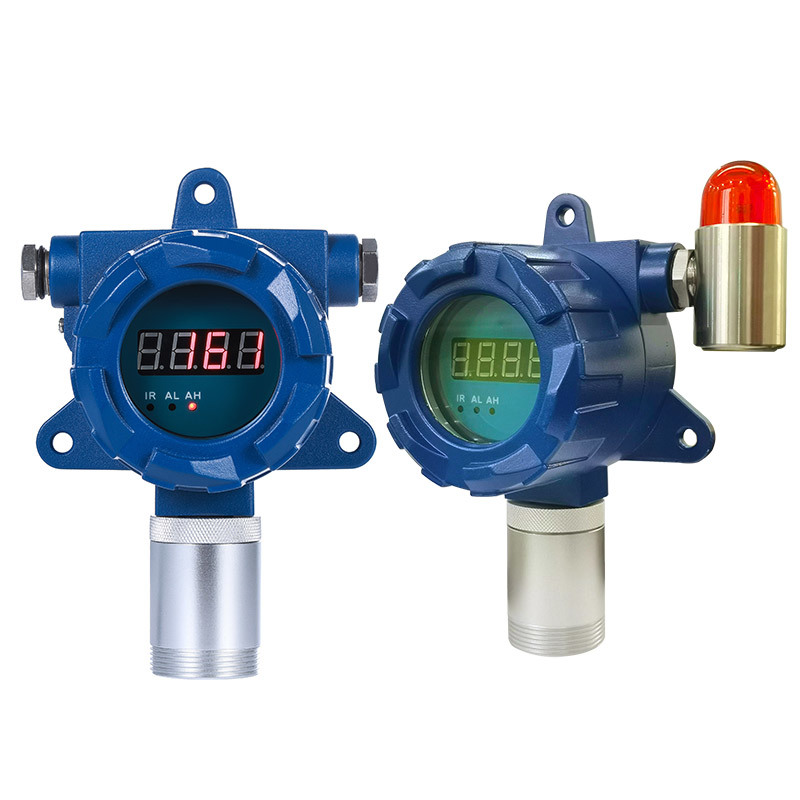

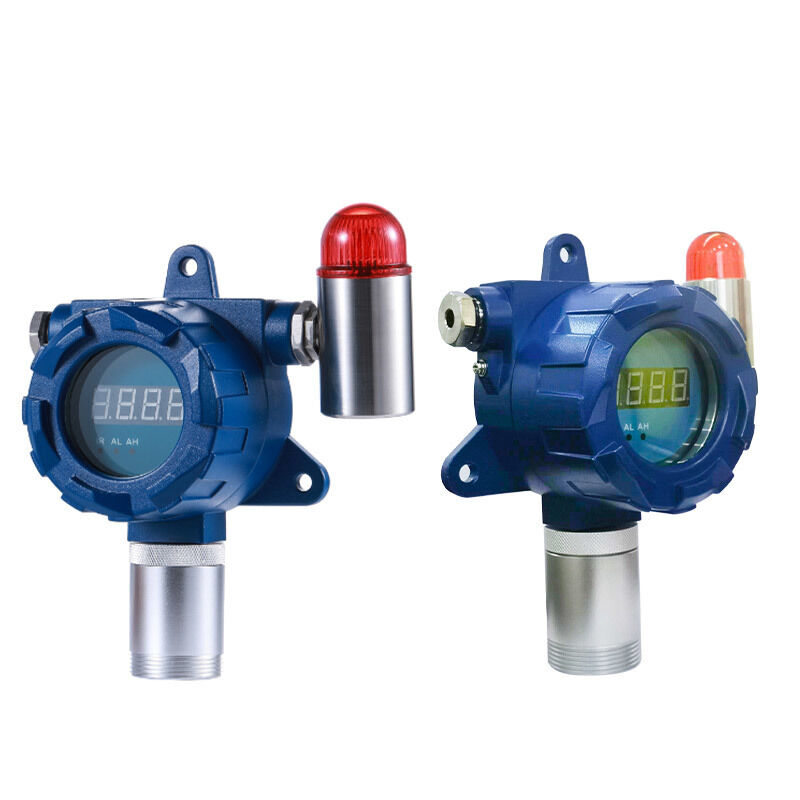

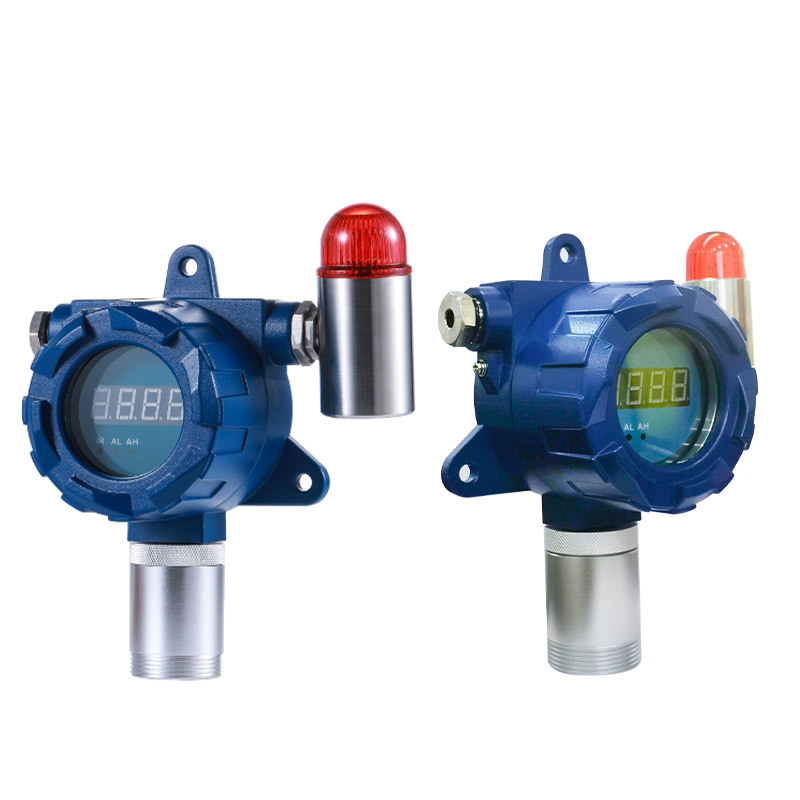

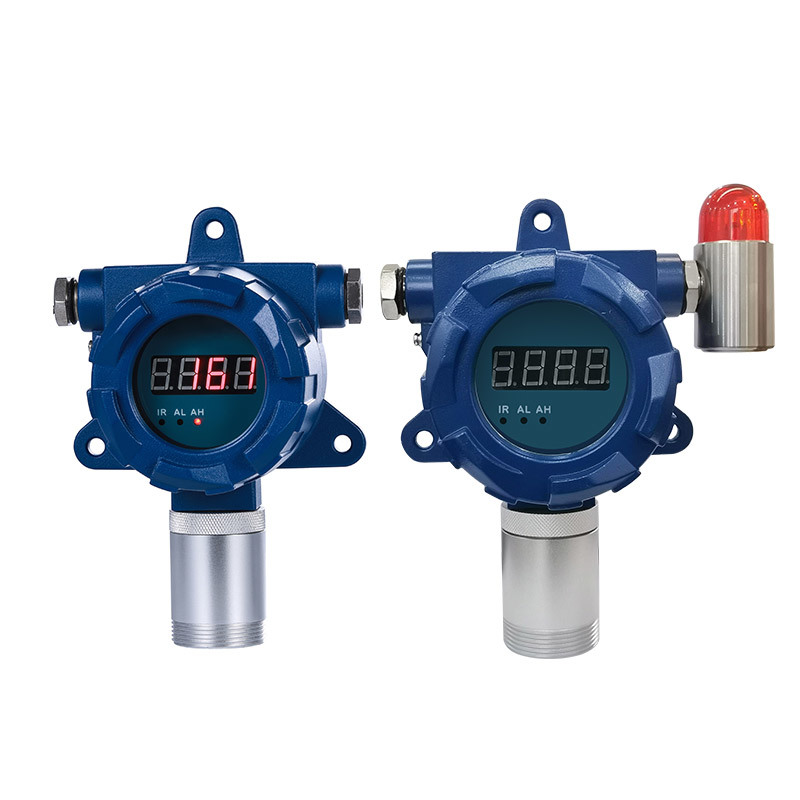

YT-95H Gas Detector front view showing display and housing YT-95H Gas Detector side view with connection ports YT-95H Gas Detector installation example in industrial setting YT-95H Gas Detector close-up of sensor housing YT-95H Gas Detector technical specifications label
Main Features
  • 24-hour continuous online gas concentration monitoring
  • 4-digit nixie-tube real-time local concentration display
  • Optional >90dB sound-light alarm with configurable alarm set-points

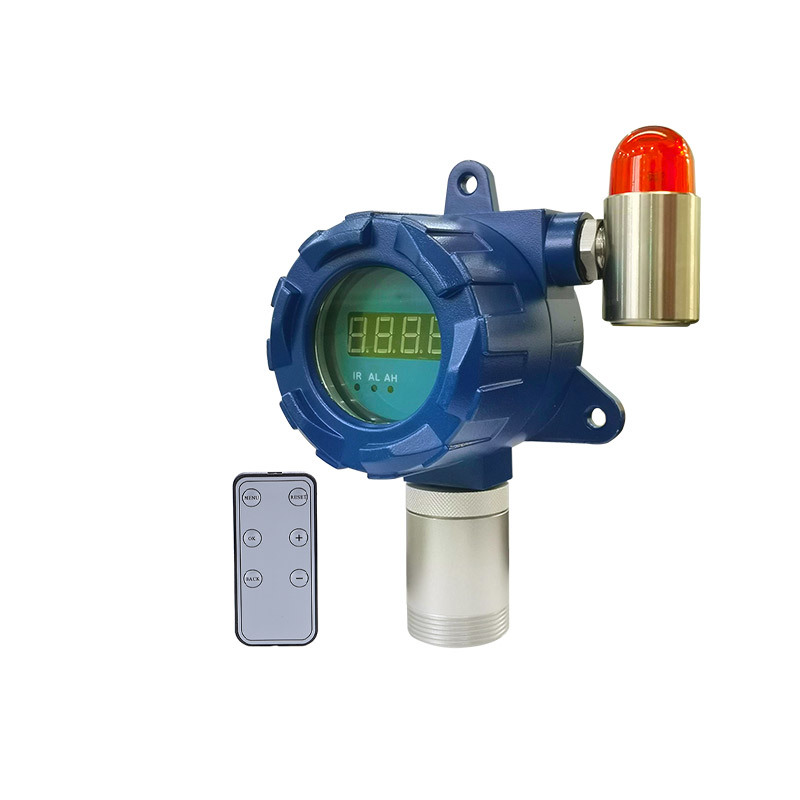

  • Infrared remote controller for non-contact on-site operation
  • Supports zero calibration, alarm-point setting and address modification remotely
  • Integrated 4-20mA, RS485 Modbus and multi-channel relay outputs
  • Relay can drive external horns, warning lights and ventilation fans
  • PC software available for remote data viewing and recording
  • Optional LoRa / 4G wireless for remote mobile-end data access
  • Rugged die-cast aluminum enclosure with IP65 dust-water resistance
  • Multiple sensor-housing material selections for different site conditions
Typical Applications
  • Chemical-plant benzene process-area continuous monitoring
  • Paint workshop and coating factory VOC safety detection
  • Petrochemical plant benzene-leakage early warning
  • Printing factory organic-solvent-site safety supervision
  • Chemical-raw-material warehouse toxic-gas monitoring
  • Occupational-health on-line monitoring for benzene-exposure workplaces
Frequently Asked Questions
Q1: What gas is this YT-95H configured for?
A: This unit is customized for benzene (C6H6). Sensors for VOC, LEL, O₂ and other toxic gases can be selected.
Q2: What ranges and resolution are available for C6H6?
A: Measuring ranges: 0-100/200/1000ppm; optional resolution: 0.1ppm, 1ppm.
Q3: What signal outputs does the transmitter support?
A: 3-wire 4-20mA, RS485 Modbus and relay output; LoRa and 4G are optional.
Q4: What are explosion-proof and protection ratings?
A: Explosion-proof grade Ex d IIC T6 Gb; IP65 dust-proof and water-proof.
Q5: How to complete parameter setting and calibration on site?
A: Operate via matched infrared remote controller for zero calibration, alarm-point setting and address modification.
Q6: Can relay output trigger external equipment?
A: Yes, relay output can control external alarm horn, warning lamp and ventilation fan.
Q7: What is the power-supply requirement?
A: Working power supply 12-36V DC.
Q8: Is sound-light alarm included as standard?
A: Sound-light alarm is optional, sound level is greater than 90dB.
