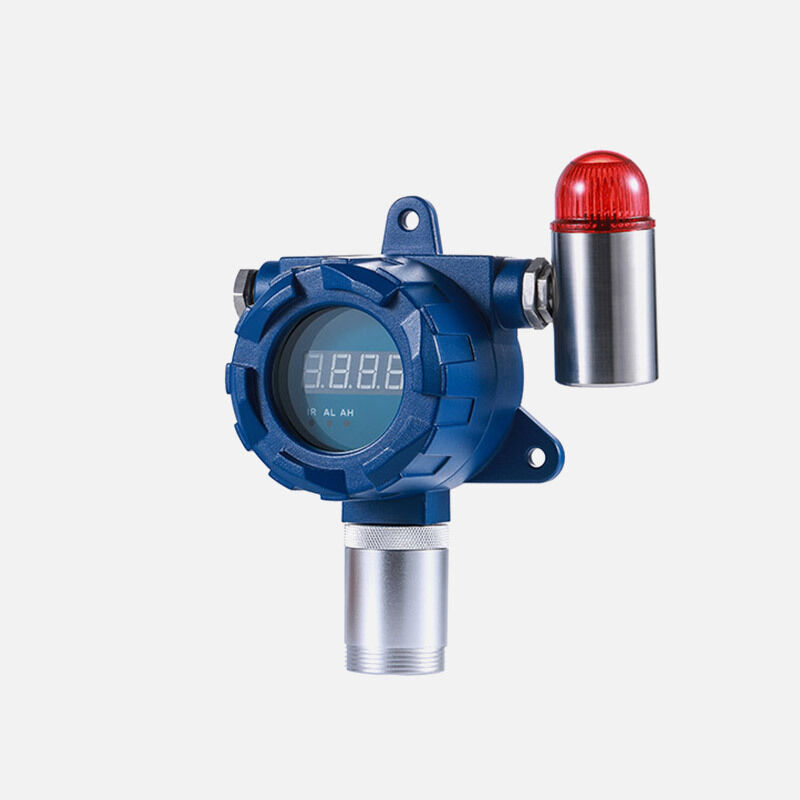

YT-95H Continuous Ethylene Gas Detector with Electrochemical Sensor and IP65 Protection for Fruit Ripening Warehouses

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: CE/ATEX
Model Number: YT-95H
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 working days
Payment Terms: T/T
Supply Ability: 50 pcs/day
Detail Information
Target Gas: Ethylene (C2H4) Sensing Principle: Electrochemical
Material: Aluminum Alloy Dimension: 180×150×90mm
Color: Blue Display: 4-digit Nixie Tube
Protection Class: IP65 Accuracy: ≤±2% FS
Response Time (T90): ≤20s
Highlight:

Electrochemical Sensor Ethylene Gas Detector

,

IP65 Protection C2H4 Gas Monitor

,

4-20mA Output Single Gas Detector


Product Description

YT-95H Continuous Ethylene Gas Detector
Product Overview

YT-95H is a cost-effective fixed ethylene (C2H4) gas transmitter utilizing electrochemical sensor technology. Available with optional measuring ranges of 0-10/100/500/1000ppm and resolution of 0.01ppm, 0.1ppm, or 1ppm. Features Ex d IIC T6 Gb explosion-proof grade and IP65 protection. Supports multiple signal outputs and infrared remote operation, ideal for 24-hour continuous ethylene monitoring in fruit storage warehouses and petrochemical working sites.

Understanding Ethylene (C2H4)

Ethylene is a flammable gaseous hydrocarbon widely used for fruit ripening in cold-storage warehouses and occurs as a by-product gas in petrochemical production. High-concentration ethylene creates fire-explosion hazards, while prolonged inhalation poses health risks to personnel. Continuous real-time monitoring ensures safety for warehouse operators and chemical-site workers.

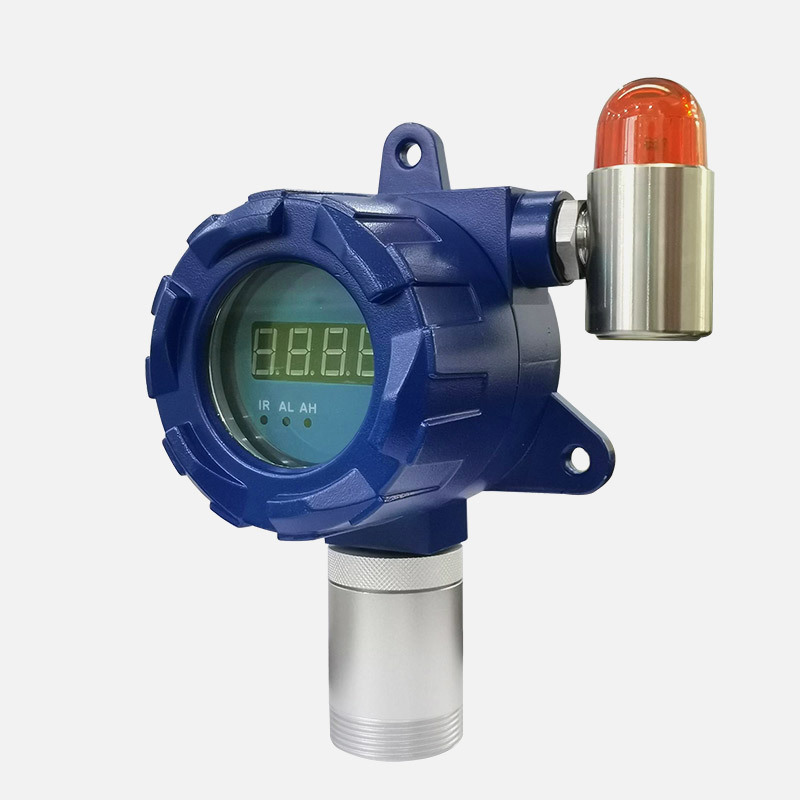

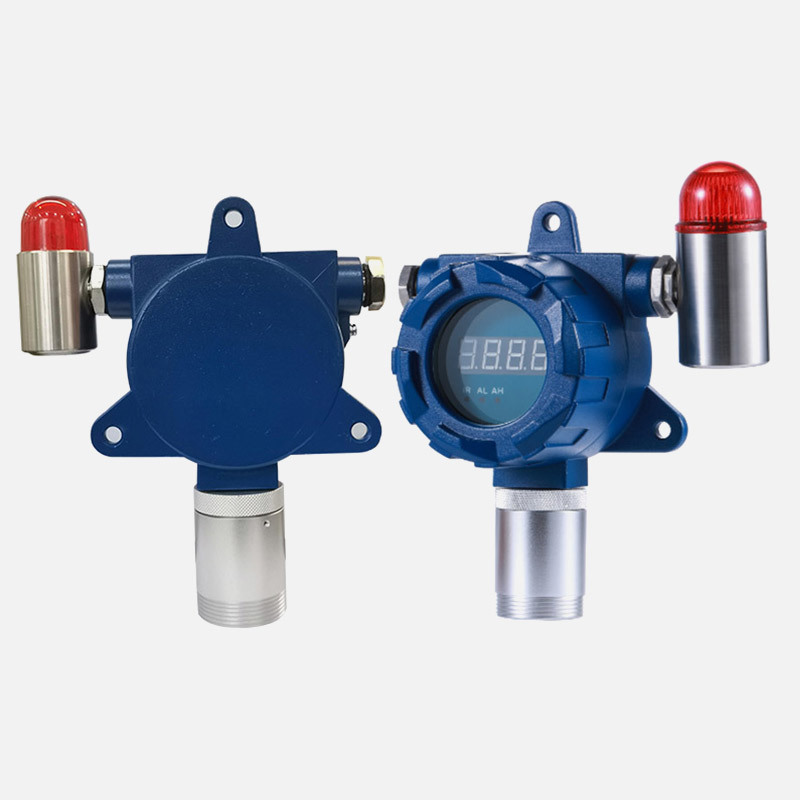

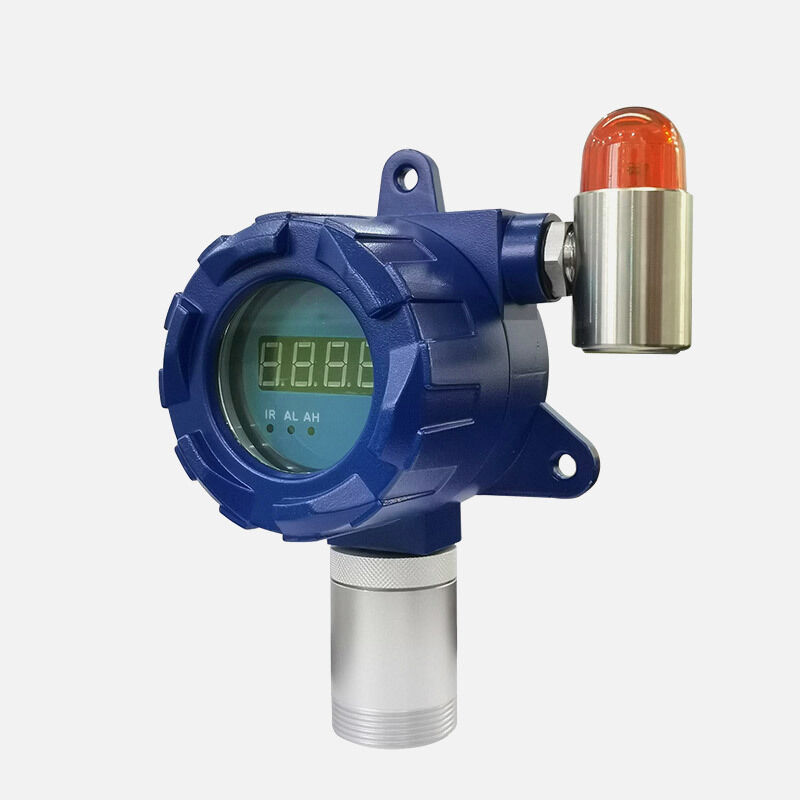

Product Images
Technical Specifications
Parameter Value
Model YT-95H
Target Gas Ethylene (C2H4)
Detection Principle Electrochemical sensor
Optional Measuring Ranges 0-10ppm, 0-100ppm, 0-500ppm, 0-1000ppm
Optional Resolution 0.01ppm, 0.1ppm, 1ppm
Accuracy ≤±2%FS (sensor-dependent)
Response Time (T90) ≤20s
Repeatability ≤±1%
Annual Zero Shift ≤±1% F.S./year
Display 4-digit nixie-tube display
Connection G1/2 external-thread for explosion-proof flexible pipe; Thread M45*2mm
Power Supply 12-36V DC
Signal Output 3-wire 4-20mA, RS485 Modbus, relay output
Wireless Option LoRa, 4G (optional)
Alarm Optional sound-light alarm>90dB, adjustable alarm threshold
Explosion-proof Grade Ex d IIC T6 Gb
Protection Class IP65
Working Temperature -20℃ ~ 50℃
Working Humidity 0-95%RH (non-condensing)
Housing Material Die-cast aluminum; sensor housing: aluminum alloy or 316 stainless steel
Dimension 180*150*90mm
Weight ≤1.6kg
Key Features
  • Real-time 24-hour continuous online gas monitoring
  • Local concentration readout via 4-digit nixie-tube display
  • Optional >90dB sound-light alarm with adjustable alarm thresholds
  • Non-contact operation with supporting infrared remote controller
  • Remote support for zero calibration, alarm-point setup and address modification
  • Multiple hardware outputs: 4-20mA, RS485 Modbus and relay signal
  • Relay channel can actuate external horns, warning lamps and exhaust fans
  • Real-time data checking available by matching PC monitoring software
  • Robust die-cast aluminum housing with IP65 dust-and-water resistance
  • Multiple sensor-housing material choices for diverse on-site environments
Typical Applications
  • Fruit ripening cold-storage warehouse ethylene monitoring
  • Petrochemical plant ethylene-process area safety detection
  • Chemical raw-material warehouse flammable-gas early warning
  • Agricultural fresh-keeping storage gas-concentration supervision
  • Ethylene-manufacturing workshop on-line safety inspection
  • Food-processing plant ethylene-treatment area gas monitoring
Frequently Asked Questions
What gas is this YT-95H configured for?
This unit is customized for ethylene (C2H4). Sensors for VOC, LEL, O₂ and other toxic gases are available for selection.
What ranges and resolution are available for C2H4?
Measuring ranges: 0-10/100/500/1000ppm; optional resolution: 0.01ppm, 0.1ppm, 1ppm.
What signal outputs does this transmitter support?
3-wire 4-20mA, RS485 Modbus and relay output; LoRa and 4G functions are optional.
What are its explosion-proof and protection ratings?
Explosion-proof grade Ex d IIC T6 Gb; IP65 dust-proof and water-proof.
How to finish calibration and parameter modification on site?
Complete zero calibration, alarm-point setting and address change by infrared remote controller.
Can relay output drive peripheral safety equipment?
Yes, relay output can control external alarm horn, warning lamp and ventilation fan.
What power supply does the detector require?
Working power supply: 12-36V DC.
Is sound-light alarm supplied as standard?
Sound-light alarm is optional, sound output is greater than 90dB.
What thread specification is for explosion-proof pipe connection?
G1/2 external thread; thread dimension M45*2mm.
