| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX,CE,CPA |
| Model Number: | SKY2000 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | 450-3000 US$ |
| Packaging Details: | Aluminum Suitcase Packing |
| Delivery Time: | 3-5 work days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 1000pcs/day |
| Type: | Electrochemical Gas Analyzer | Origin: | China |
|---|---|---|---|
| Language: | English | Sampling Method: | Pumping |
| Customized: | Customized | HS Code: | 9027100090 |
| Gas: | CO2 CO2 | Model NO.: | SKY2000 |
| Transport Package: | Aluminum Suitcase Packing | Mode: | Portable |
| High Light: | Electrochemical Multi Gas Detector,Pumping Electrochemical Gas Analyzer,Pumping Electrochemical CO Gas Monitor |
||
High Sensitivity Electrochemical Multi Gas Detector CO2 CO Monitor
SKY2000 series gas detector is a kind of fast response and high accuracy gas measurement device. With internal sampling pump, fast sampling speed and high flow rate, ensuring the response time of the detector. Unique design, small size and easy to carry with. Special high intensity
engineering plastics housing, suitable for different kinds of situation and environment.
Characteristic & Function
1. LCD lattice display, gas type, unit, concentration, and local time can be displayed on the screen.
2. Support operation in Chinese and English, easy to switch.
3. The unit of gas concentration PPM and mg/m3 can be changed quickly.
4. Explosion-proof certification, explosion-proof grade :II 2G Ex ia IIC T4 Ga IP66.
5. Monitor the hydrogen concentration in the environment and confined space and give an alarm.
6. With self-calibration and zero calibration function, so that the detection is more accurate and reliable.
7. Press once to restore factory Settings, avoid the trouble of misoperation.
8. With the function of temperature and pressure compensation, can realize the gas concentration compensation under different temperature or pressure conditions.
9. Sound and light alarm, alarm point can be set.
10. Large capacity rechargeable lithium polymer batteries.
Specificiation
|
Gas Detected |
CO2 CO |
||
|
Detection principle |
Electrochemistry Infrared |
||
|
Sampling Method |
Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. |
||
|
Measure Range |
Customized |
||
|
Resolution |
Customized |
||
|
Precision |
2%FS |
||
|
Signal Output |
High-speed data transmission by USB, available for data downloading and |
||
|
Response Time |
≤10S |
Recovery Time |
≤10S |
|
Repeatability |
≤±1% |
Linearity error |
≤±1% |
|
Zero shift |
≤±1%(F.S/year) |
Display |
LCD dot matrix display |
|
Operating language |
Chinese/English |
Gas unit |
ppm, mg/m3 |
|
Temperature |
-20ºC~50ºC |
Humidity |
0-95%RH |
|
Explosion-Proof |
Exiia IICT4 |
Degree of protection |
IP66 |
|
Alarm mode |
Sound, light, vibration |
Operating time |
12h |
|
Dimensions |
205*75*32mm |
Weight |
300g |

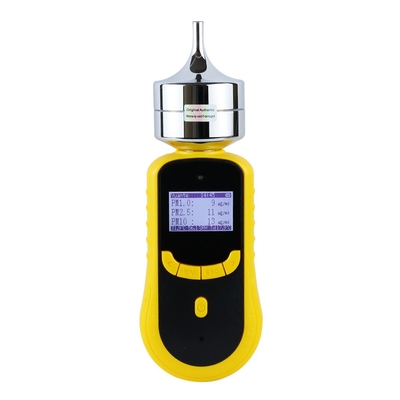

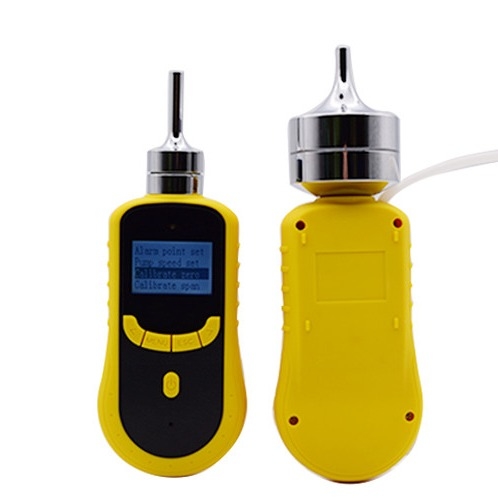

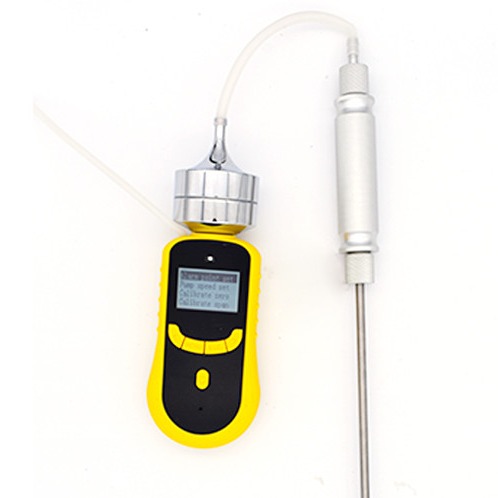

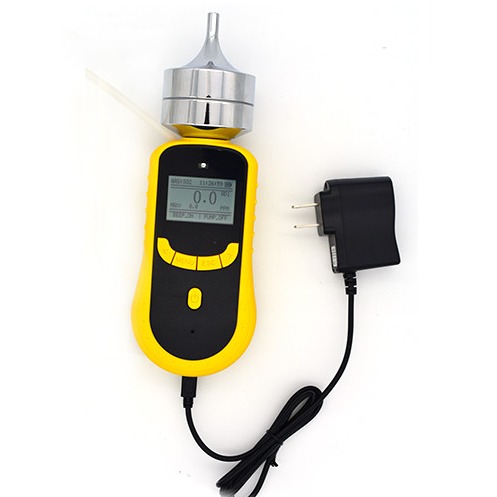

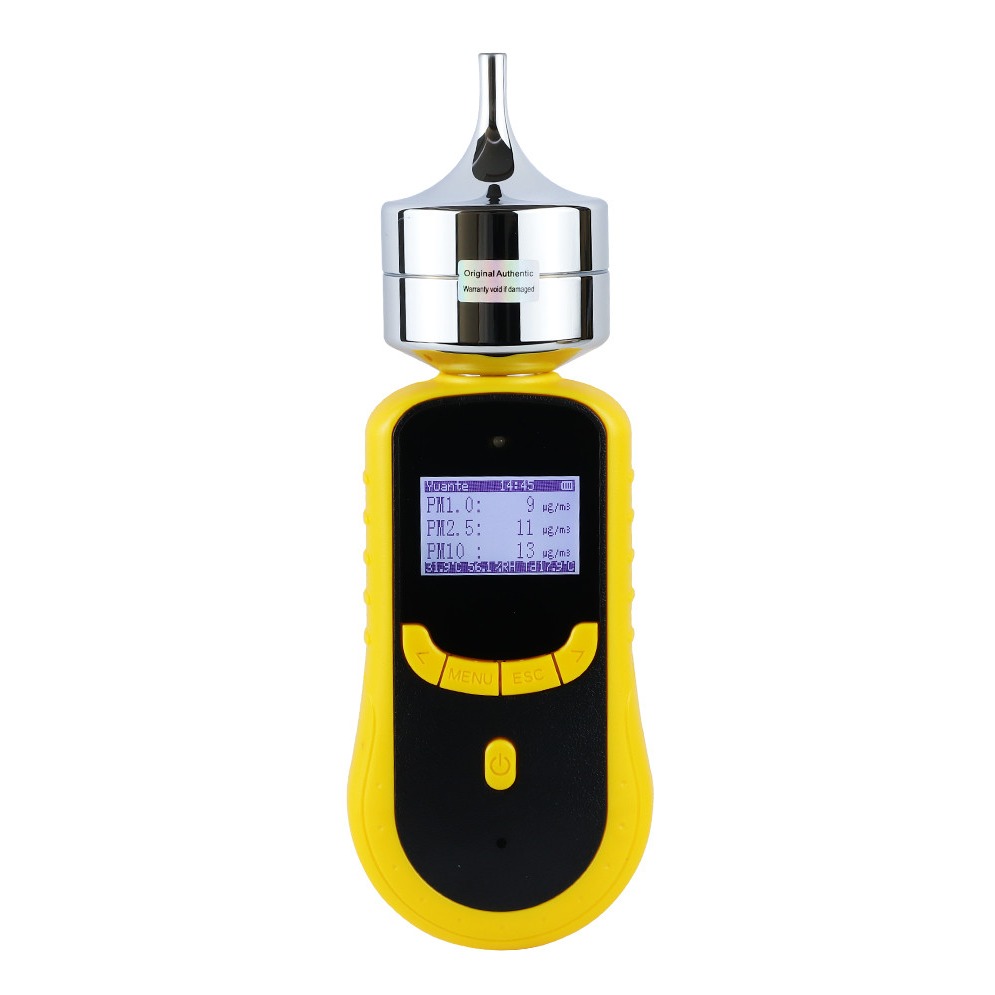

Product Picture
Package
