| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX, ISO9001, CE, CNEX |
| Model Number: | YT-1200H-S-WH |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Color box. 30*25*13cm |
| Delivery Time: | 1 working days |
| Payment Terms: | Credit Card, Western Union, T/T |
| Supply Ability: | 1000 pieces/week |
| Detected Gas: | CO H2S O2 LEL | Measure Range: | 0-1000ppm, 0-100ppm, 0-30%VOL, 0-100%LEL |
|---|---|---|---|
| Ampling Method: | Diffusion | Alarm Type: | Sound, Light |
| Resolution: | 1ppm, 0.01ppm, 0.01%VOL, 1%LEL | Packing: | Color Box |
| Material: | PC + ABS | USB Port: | Micro USB Port |
| Warranty: | 12 Months | Weight: | 240g |
| Size: | 131*83*35mm | Usage: | Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking |
| Name: | YT-1200H-S Gas Detector | Display: | LCD Dot Matrix Display |
| High Light: | Catalytic Combustion Toxic Gas Leak Detector,Electrochemistry Toxic Gas Leak Detector,LCD Graphic Display Toxic Gas Detector |
||

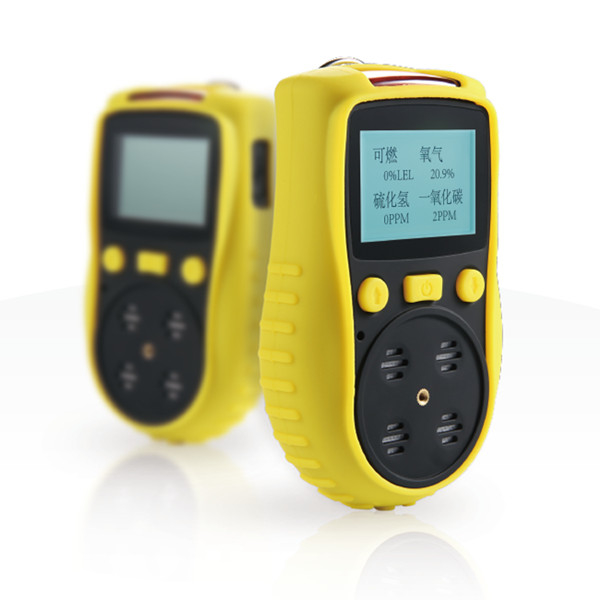

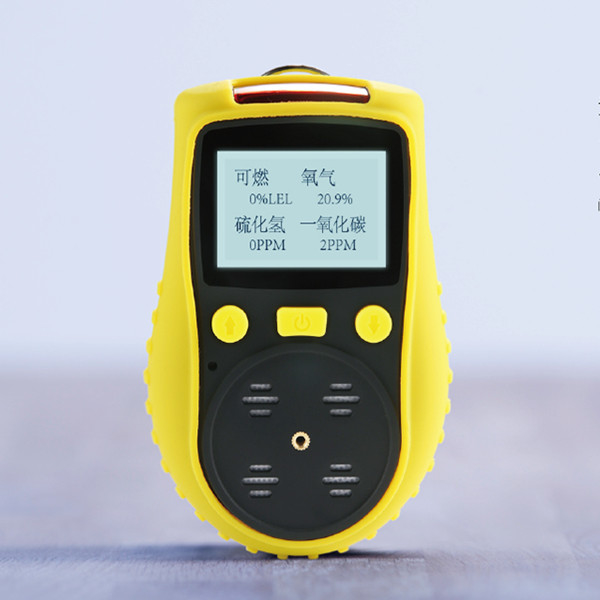

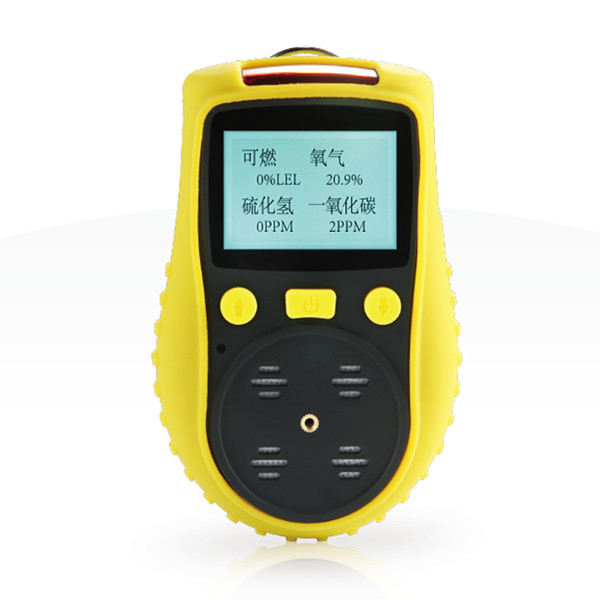

Catalytic Combustion Toxic Gas Leak Detector LCD Graphic Display
High accuracy Toxic Gas Leak Detector LCD graphic display with ABS Leather Case
Characteristics
1. Employing original imported first-class brand sensor.
2. (optional) High speed data transmission by USB, which can download and print data.
3. LCD dot matrix display, the gas type, unit, concentration,
4. Local time can be showed on the screen.
5. Support Chinese and English operation, easy to shift.
Specifications
| Gas Detected | CO H2S O2 LEL | ||
| Detection principle | Electrochemistry, Catalytic combustion | ||
| Sampling Method | Diffusion | ||
| Measure Range | 0-1000ppm, 0-100ppm, 0-30%VOL, 0-100%LEL | ||
| Resolution | 1ppm, 0.01ppm, 0.01%VOL, 1%LEL | ||
| Precision | ≤± 2-3% F.S | ||
| Signal Output | High-speed data transmission by USB, available for data downloading and printing (optional function) |
||
| Charging Time |
4~6h |
Working Time | 14h |
|
Battery |
3.7V |
Capacity |
2300mAh |
| Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
| Operating language | English | Gas unit | Units are switchable |
| Temperature | -20℃~50℃ | Humidity | 0-95%RH |
| Explosion-Proof | II 2G Ex ia IIC T4 Ga IP66 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration |
Housing Material |
ABS+ leather case |
| Dimensions | 131*83*35mm | Weight |
240g |
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available
Q3: Does your company accept customization?
A3: We do customizing service for customers.
Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.
Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for all kinds of products.
Q6: How about the Calibration?
A6: Before send out, we will calibrate each pieces well with standard gas.
Q7: What certifications do you have?
A7: ATEX CE ISO9001-2015.
Q8: How about the life of sensors?
A8: Different sensors have a different life, kindly contact us to get a right information
