| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX, ISO9001, CE, CNEX |
| Model Number: | YT-1200H-S-WH |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Color box. 30*25*13cm |
| Delivery Time: | 1 working days |
| Payment Terms: | Credit Card, Western Union, T/T |
| Supply Ability: | 1000 pieces/week |
| Detected Gas: | CO H2S O2 LEL | Measure Range: | 0-1000ppm, 0-100ppm, 0-30%VOL, 0-100%LEL |
|---|---|---|---|
| Ampling Method: | Diffusion | Alarm Type: | Sound, Light |
| Resolution: | 1ppm, 0.01ppm, 0.01%VOL, 1%LEL | Packing: | Color Box |
| Material: | PC + ABS | USB Port: | Micro USB Port |
| Warranty: | 12 Months | Weight: | 240g |
| Size: | 131*83*35mm | Usage: | Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking |
| Name: | YT-1200H-S Gas Detector | Display: | LCD Dot Matrix Display |
| High Light: | Electrochemistry Multi Gas Detector,H2S LEL Multi Gas Detector,ATEX Gas Leak Detector |
||

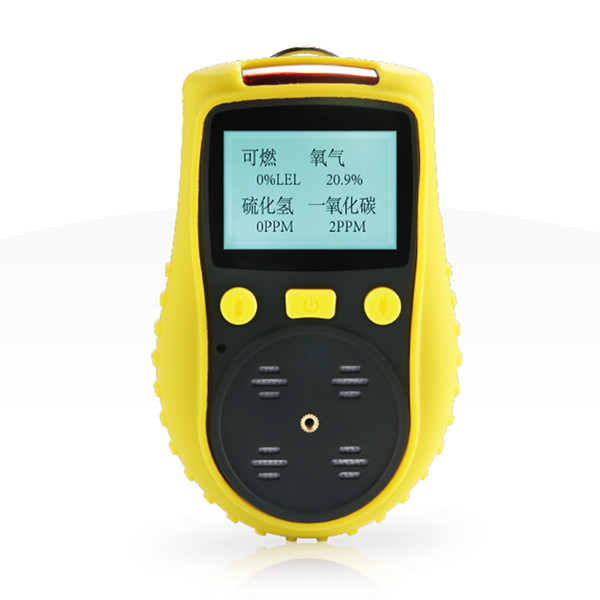

Mini Size CO H2S O2 LEL Multi Gas Detector With ABS Leather Case
Gas Leak Detector mini size EX IB IIC T3 GB certification ABS Leather Case
Company information
Characteristics
1. Employing original imported first-class brand sensor.
2. (optional) High speed data transmission by USB, which can download and print data.
3. LCD dot matrix display, the gas type, unit, concentration,
4. Local time can be showed on the screen.
5. Support Chinese and English operation, easy to shift.
Specifications
| Gas Detected | CO H2S O2 LEL | ||
| Detection principle | Electrochemistry, Catalytic combustion | ||
| Sampling Method | Diffusion | ||
| Measure Range | 0-1000ppm, 0-100ppm, 0-30%VOL, 0-100%LEL | ||
| Resolution | 1ppm, 0.01ppm, 0.01%VOL, 1%LEL | ||
| Precision | ≤± 2-3% F.S | ||
| Signal Output | High-speed data transmission by USB, available for data downloading and printing (optional function) |
||
| Charging Time |
4~6h |
Working Time | 14h |
|
Battery |
3.7V |
Capacity |
2300mAh |
| Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
| Operating language | English | Gas unit | Units are switchable |
| Temperature | -20℃~50℃ | Humidity | 0-95%RH |
| Explosion-Proof | II 2G Ex ia IIC T4 Ga IP66 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration |
Housing Material |
ABS+ leather case |
| Dimensions | 131*83*35mm | Weight |
240g |

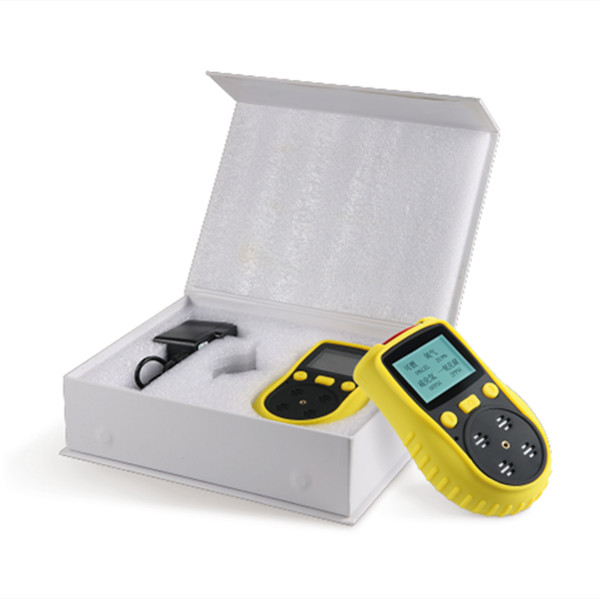

What is in the package
