| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX/IECEX/CE/EMC |
| Model Number: | SKY3000 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100 pieces/day |
| Model Number:: | SKY3000 | Sensor Principle: | Electrochemical, Catalytic Combustion, PID |
|---|---|---|---|
| Measure Range: | H2S 0-100PPM, CO 0-1000PPM, NH3 0-100PPM | Resolution: | H2S 0.1PPM, CO 1PPM, NH3 0.1PPM |
| Response Time: | ≤30 Seconds | Precision: | ≤±2%F.S Except For Special Gases |
| Working Hours: | More Than 15 Hours In Continuous Pumping Mode | Disaply: | Monochrome Graphics (160 X96) ,screen Can Be Automatically Flipped |
| Language: | Chinese/English/ Russian | Backlight: | The Backlight Time Can Be Manually Set, And Will Be Turned On Automatically When An Alarm Is Issued |
| High Light: | CH4 Gas Leak Detector,H2 Flammable Gas Leak Detector,IECEX Data Logger Multi Gas Detector |
||

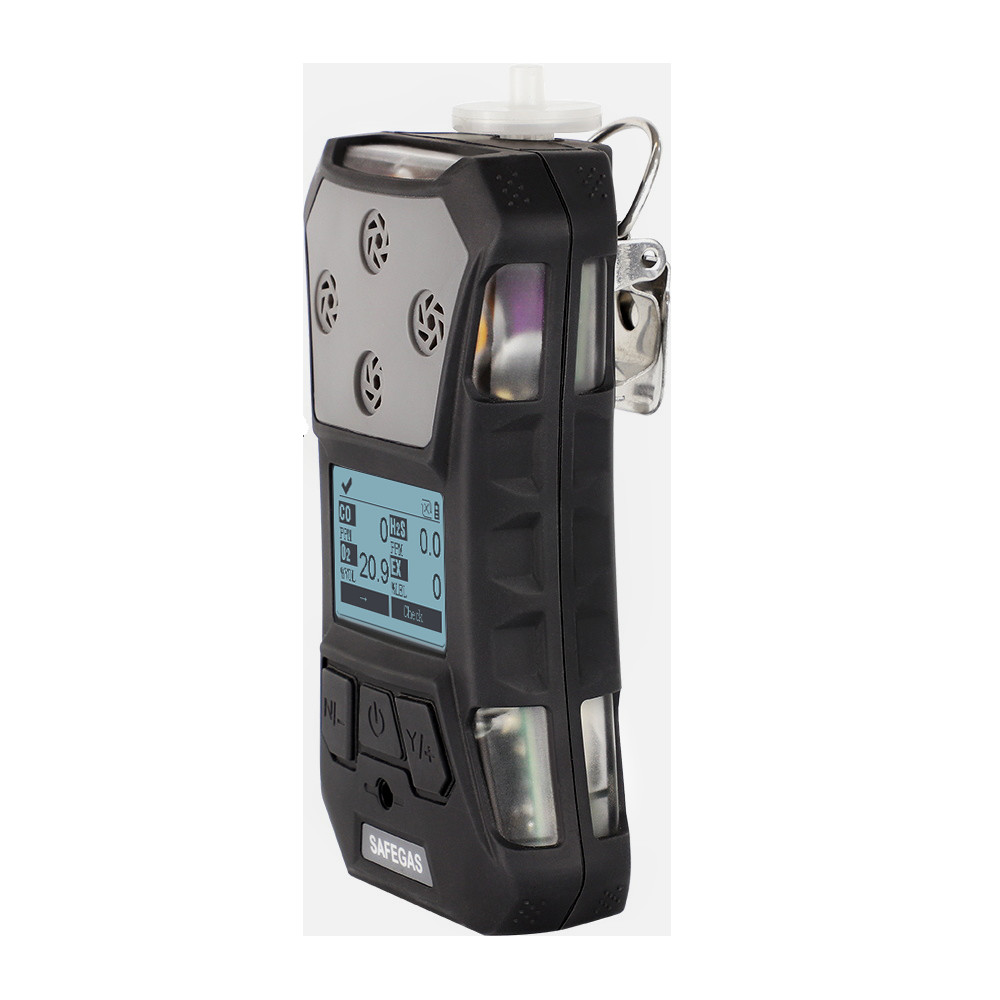

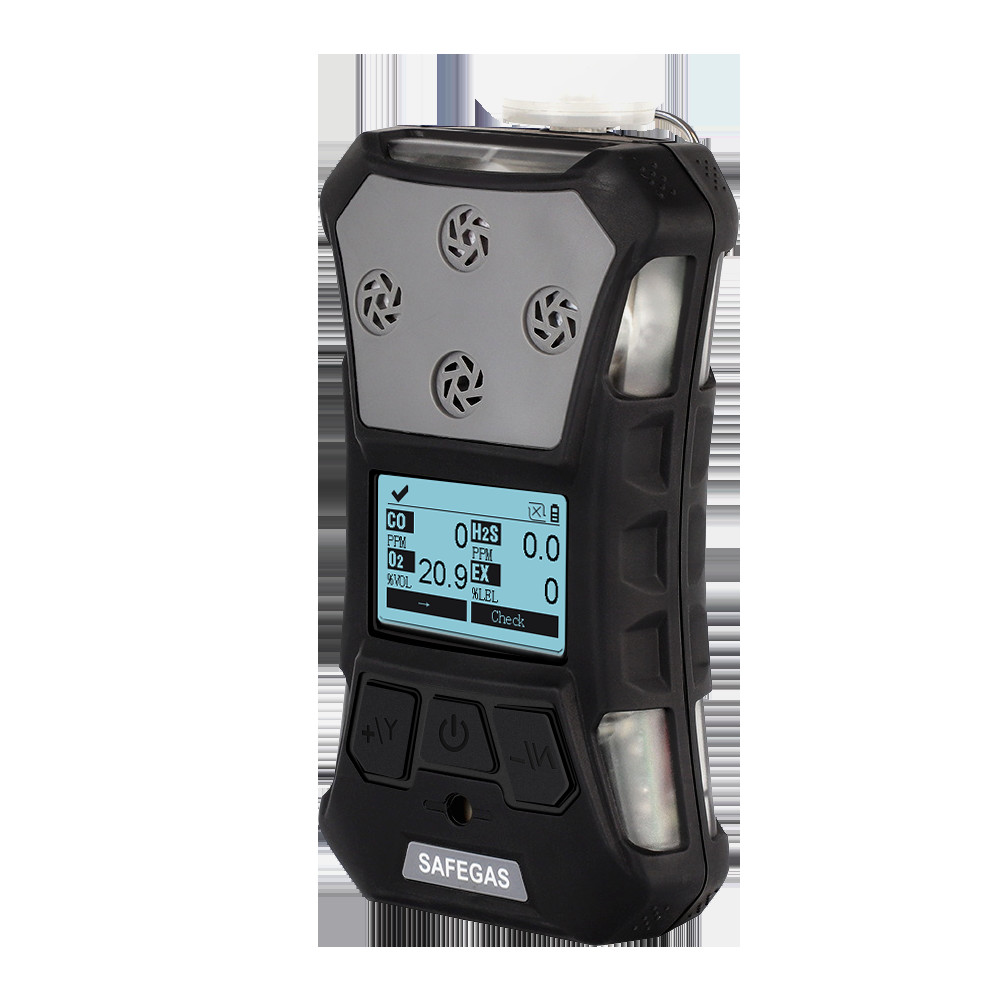

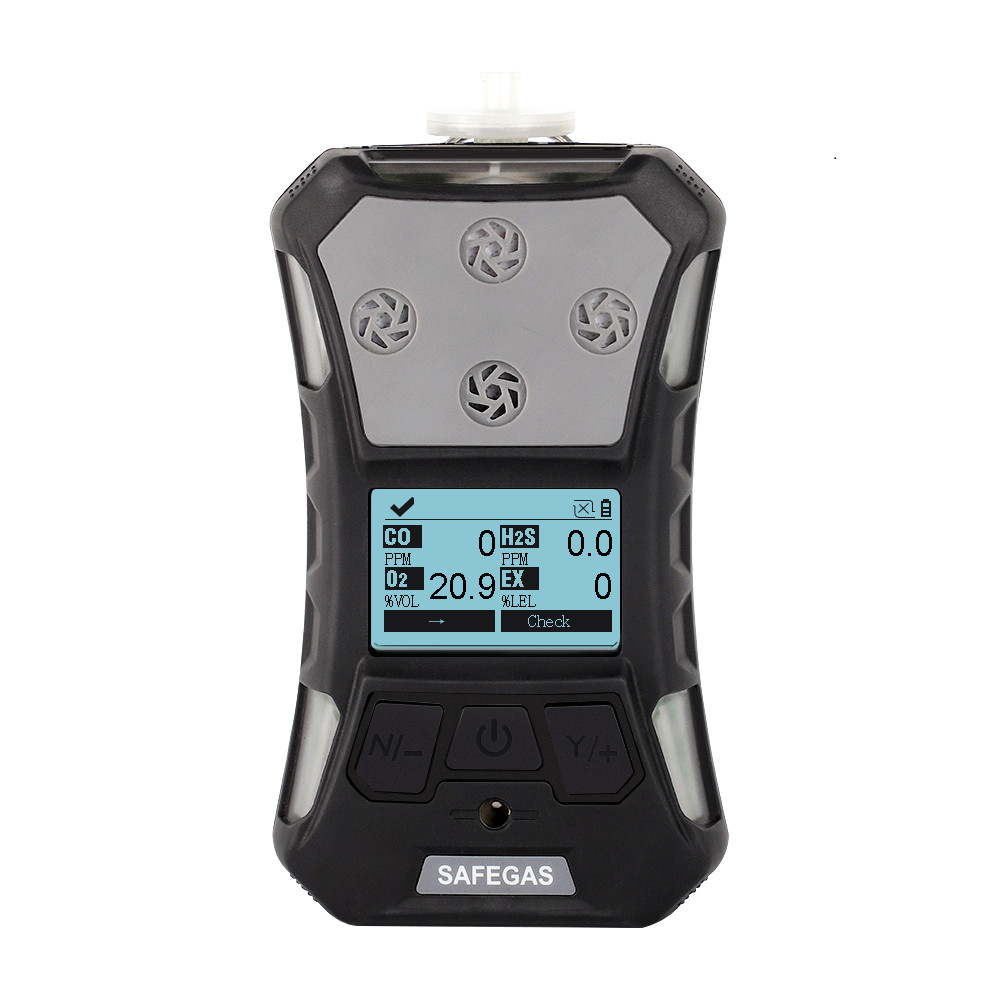

Flammable Gas CH4 H2 Gas Detector IP67 with Explosion-Proof Iecex Certificate Data logger
A Professional: We have been focused on gas detection devices for more than 10 years and been cooperating with PB group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc famous companies. We are with rich experience to provide you professional solutions.
Specifications
| Gas Detected | H2S, CO, NH3,LEL, O2, VOC etc | ||
| Detection principle | Electrochemical, catalytic combustion, PID | ||
| Sampling Method | Pumping suction | ||
| Measure Range | H2S 0-100PPM, CO 0-1000PPM, NH3 0-100PPM, LEL 0-100%LEL, O2 0-30%VOL, VOC 0-100PPM | ||
| Resolution | H2S 0.1PPM, CO 1PPM, NH3 0-100PPM , LEL 1%LEL, O2 0.01%VOL, VOC 0.1PPM | ||
| Precision | ≤±2%F.S except for special gases | ||
| Response Time | ≤30 seconds | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃-50℃ | Humidity | 0-90%RH |
| Explosion-Proof | IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga | Degree of protection | IP67 |
| Alarm mode | Sound, light, vibration | Environmental pressure | 86～106Kpa |
| Dimensions | 157*84.5*59.5mm | Weight | 365g |
Product advantage
Application:
Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy, Health Care, Foodstuff, Antiseptic.
Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
Livestock Farm, Refuse Processing Plant, Perm Place.
Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics, Brewing And Fermentation, Agricultural Production.
Product package
