Multi Biogas Detector CH4 CO2 O2 H2S Built - In Printer Bluetooth / 4G / LORA Connection

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/CE
Model Number: SKY8000
Minimum Order Quantity: 1 piece
Price: Negotiable

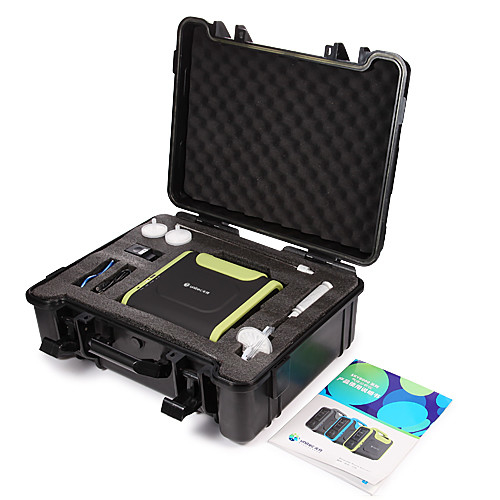

Packaging Details: Aluminum Suitcase Package
Delivery Time: 5 - 7 working days
Payment Terms: Western Union, T/T, Visa, Master Card
Supply Ability: 1000 piece/ month
Detail Information
Detecting Gas: Biogas (CH4 CO2 O2 H2S) Sensor Type: Electrocemical, Infrared Sensor
Measure Range: Customized Resolution: Customized
Application: Petrochemical, Power Plant, Building, Mine, Metallurgical Coking, Pharmaceutical Sampling Method: Pump-suction
Display: Formula, Gas Concentration Data, Measurement Trend Curve, Gas Curve, Battery, Time, Temperature, Humidity, Pressure (optional), Pump Condition, Wireless Status, Printer Status, Screen Shot Status Alarm: Red LED, Buzzer, Alarm Status On The Display, Fault Alarm, Pump Abnormal Alarm And Low Battery Alarm
Language: Chinese/English Warranty: 12 Months
High Light:

Multi Biogas Detector CO2

,

Multi Biogas Detector CH4

,

Multi Biogas Detector Built In Printer


Product Description

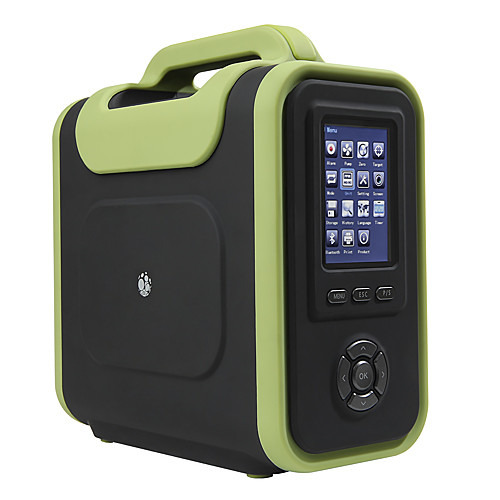

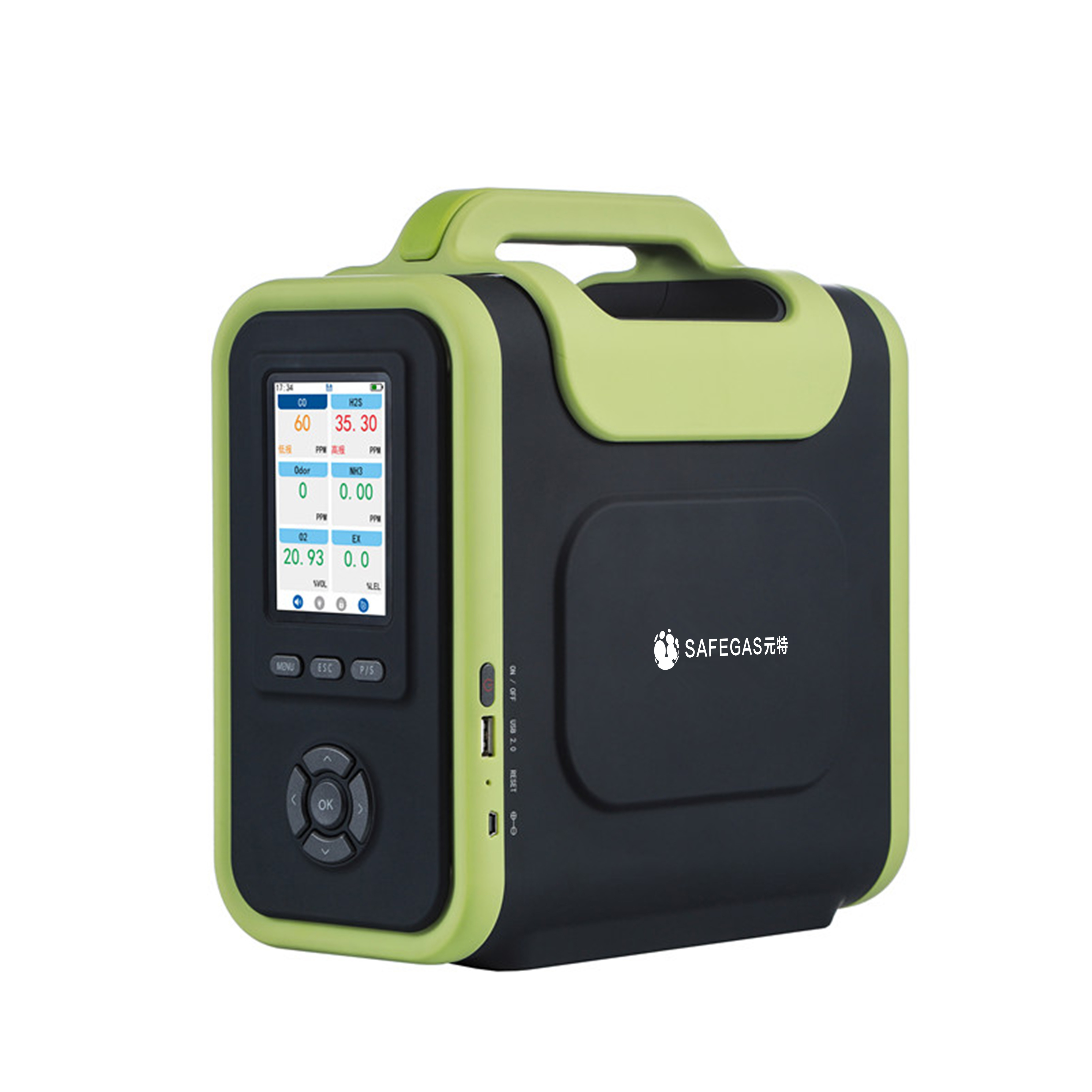

Multi Biogas Detector CH4 CO2 O2 H2S Built-in Printer Bluetooth/4G/LORA Connection



Company Profile



Shenzhen Yuante Technology Co., Ltd. is a high-tech enterprise that integrates the research and development, manufacturing, and service of gas detectors and analyzers. Through independent research and development, cooperative development, and learning from the latest technologies of developed countries, the company has ensured its leading position in domestic products and technology and synchronized development with its foreign counterparts. We welcome distribution agents, OEMs, ODMs. Yuante is willing to join hands with you to create a better future.



Product Overview



The SKY8000 series gas analyzer is a data collector that can quickly collect and analyze gas concentration components in scientific research, universities, and complex working environments. The SKY8000 gas analyzer can simultaneously detect up to 18 types of gases. It can integrate detection principles such as electrochemistry, catalysis, thermal conductivity, infrared, photoionization, and ultraviolet, emphasizing the accuracy and user experience of gas detection.


Product Advantage



1. Designed with Mini-USB charging interface, charging is more convenient
2. It can simultaneously detect up to 18 gases, meeting various detection needs.
3. Top UK brand sensor with built-in micro sampling pump, fast response and high accuracy.
4. Special structural design, using aviation wear-resistant materials, suitable for various industrial environments
5. 3.5-inch high-definition color screen, with switchable gas concentration data and real-time curve display, clear and intelligent
6. Equipped with an independent SD memory card, it can view and delete historical test data, and can customize storage space

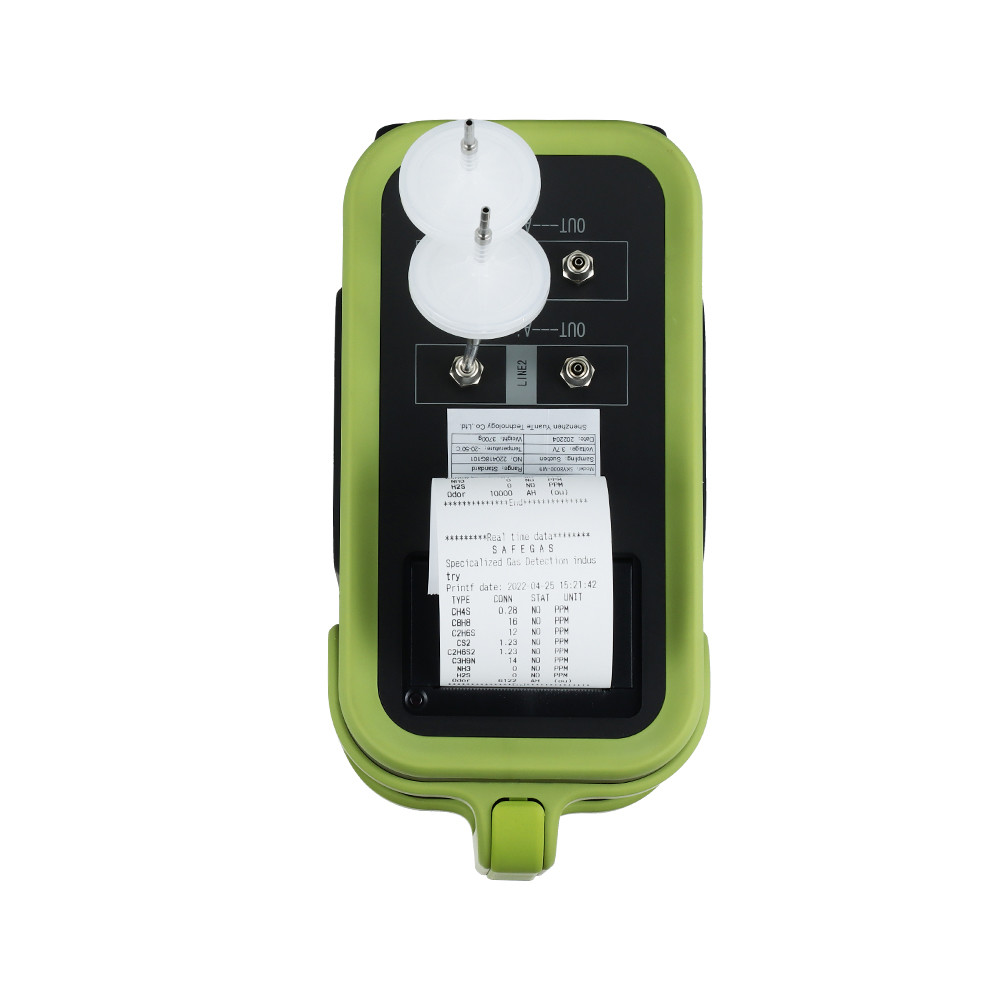

7. The analyzer can be equipped with a built-in printer or an external Bluetooth printer to achieve mobile printing function (Optional).



Multi Biogas Detector CH4 CO2 O2 H2S Built - In Printer Bluetooth / 4G / LORA Connection 0

Specification



Sensors
Various principle sensors can be combined in any number , up to 18 sensors; Combustible: catalytic combustion principle orinfrared principle;
oxygen: electrochemical principle or zirconia principle;
toxic: electrochemical principle;
CO2: infraredprinciple;
VOC: PID photo ion principle;
CH4: catalytic combustion principle or infrared principle;
He: thermal conductivity Principle,
temperature and humidity sensors, pressure sensors (optional) (other principles of the sensor can be customized)
Measure range
0~1,10,100,1000,5000,50000,100000 PPM;0-100mg/L,200mg/L;
0-100%LEL;0-10%,20%,50%,99.999%,100%Vol(Measure range is optional and customerized)
Resolution
0.001 PPM(0-1 PPM);0.01 PPM or 0.001 PPM(0~10 PPM);
0.1 PPM or 0.01 PPM(0~100 PPM);1 PPM or 0.1 PPM(0~1000 PPM);
1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL);0.01%(0-100%VOL)

Display
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional),
pump condition, wireless status, printer status, screen shot status
Alarm
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data storage
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval.
Data transmission and download
RS232,RS485 singnal output, USB interface data transmission, with the upper computer software, can download storage, analyze and
print data
Print function(Optional)
Optional with internal portable printer or external bluetooth printer
Print content(Optional)
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.

Charger
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer )
Language
Chinese/English
Wireless network (optional)
Bluetooth, Zigbee
Network frequency
2.4G high frequency.
wireless transmission distance
Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m.
