| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX/CE |
| Model Number: | SKY2000 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100 pieces/day |
| Detect Item: | Sulfur Hexafluoride/ SF6 | Model Number:: | SKY2000 |
|---|---|---|---|
| Measure Range: | 0-1000/2000ppm | Resolution: | 0.1µg/m3, 1µg/m3 |
| Sampling Method:: | Pumping Suction | Alarm Type: | Sound, Light And Vibration |
| Packing: | Aluminum Suitcase | Weight: | 300g |
| Battery Type: | Lthium Polymer | Explosion-Proof: | Ex Ia II CT4 |
| High Light: | Infrared SF6 Gas Leak Detector,Switchgear SF6 Gas Leak Detector,Infrared Sulfur Hexafluoride Gas Detector |
||

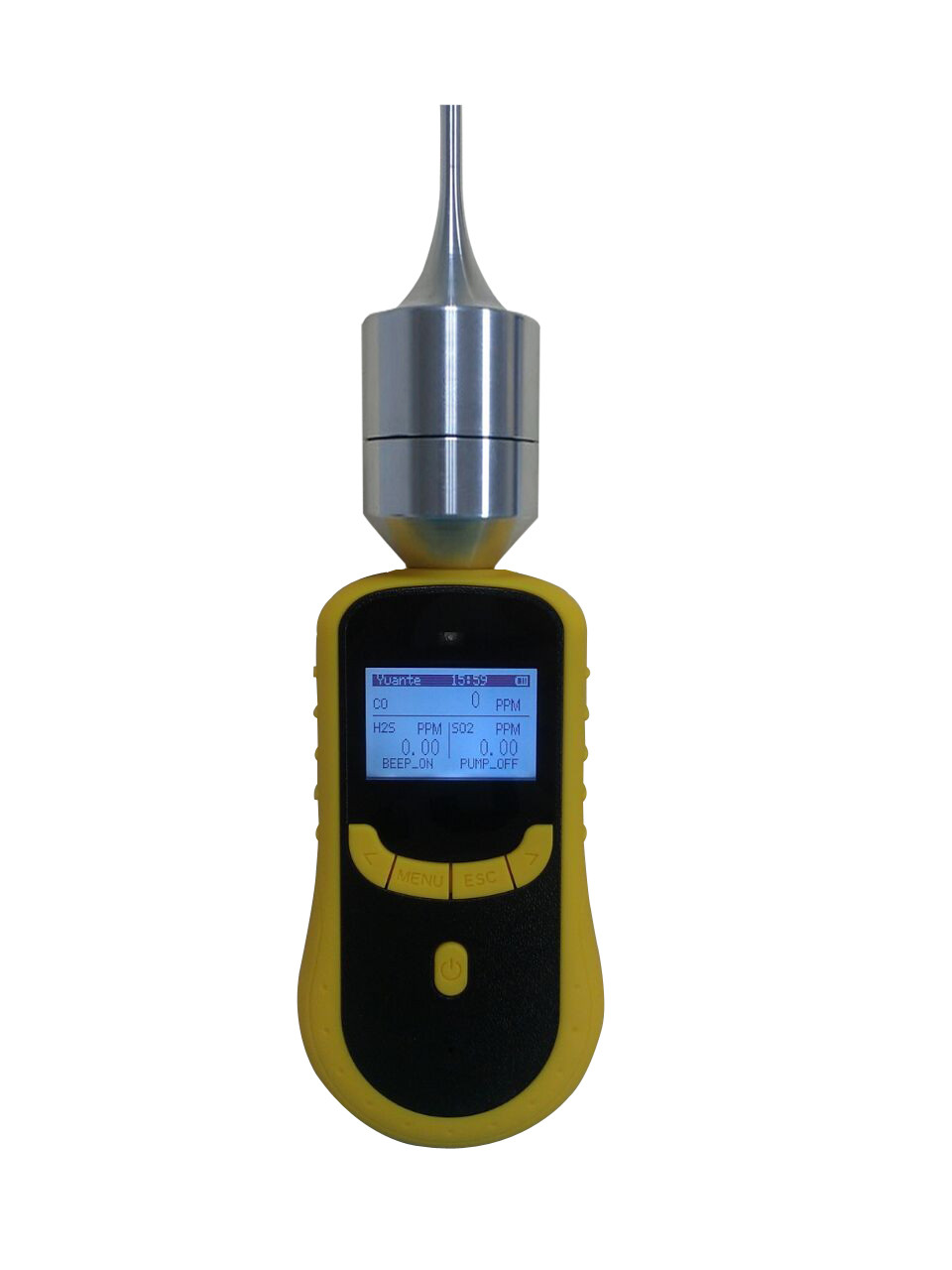

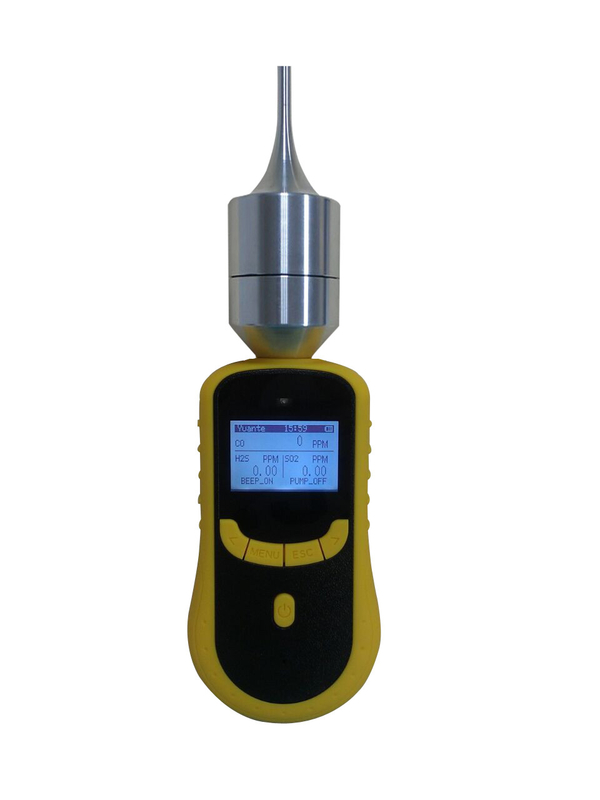

Infrared Testing Sulfur Hexafluoride SF6 Gas Leak Detector Used in Gas Insulated Switchgear
Company Profile
Shenzhen Yuante Technology Co., Ltd. was established in 2010 and has been focused on designing, producing, and selling high-end gas detection equipment and systems for 16 years. With "gas detector" as our core product, we customize our production lines and solutions according to different industries such as petroleum, chemicals, pharmaceuticals, energy, environmental protection, electronics, municipal services, agriculture, forestry, and household appliances. After nearly 10 years of rapid development, FAR has become an influential supplier in the industry.
Product Overview
Specifications
| Gas Detected | Sulfur Hexafluoride/ SF6 | ||
| Detection principle | Infrared | ||
| Sampling Method | Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. | ||
| Measure Range | 0-1000/2000ppm | ||
| Resolution | 1ppm | ||
| Precision | 3% F.S. | ||
| Response Time | ≤10S | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃-50℃ | Humidity | 0-95%RH |
| Explosion-Proof | ExiaⅡCT4 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration | Operating time |
24h |
| Dimensions | 205*75*32mm | Weight | 300g |
Product Functions
FAQ:
Can I order a sample?
Yes, samples are available for testing and quality verification.
Do you have a minimum order quantity?
No, we do not have a minimum order quantity. Single orders are welcome.
What are the terms of payment?
We accept Visa, Mastercard, e-check, Wire transfer, Western Union, and Alipay.
How about the packing?

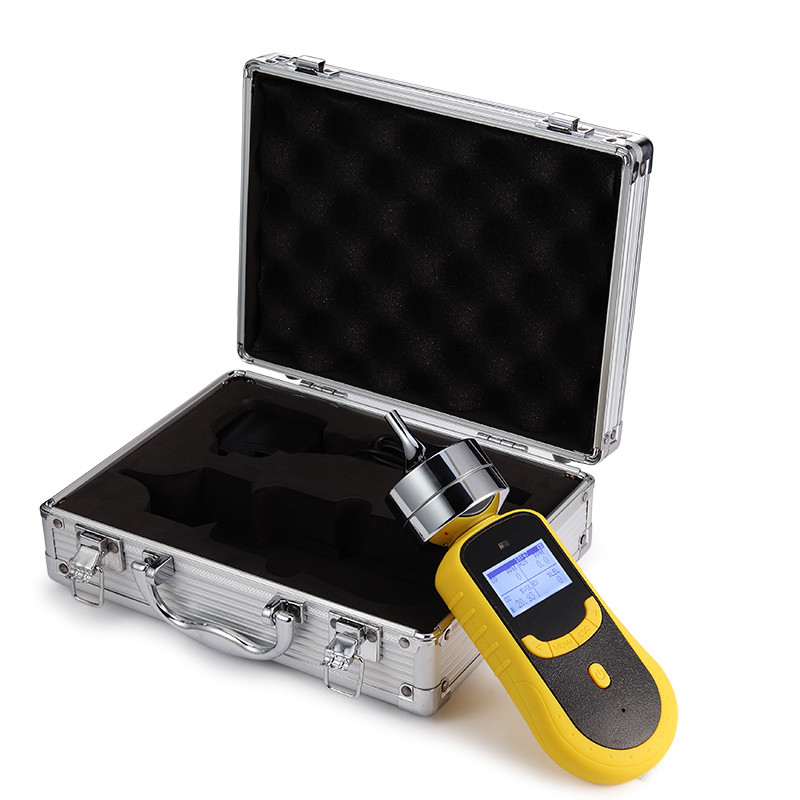

Our packaging is an aluminum suitcase and carton.
What certificates do you have?
We have ATEX, IECEX, CE, ISO, CNEX explosion protection, CMC, and if you have any other certification requirements, we are also willing to assist you.
