Infrared Testing Sulfur Hexafluoride SF6 Gas Leak Detector for Gas Insulated Switchgear

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/CE
Model Number: SKY2000
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 100 pieces/day
Detail Information
Detect Item: Sulfur Hexafluoride/ SF6 Model Number:: SKY2000
Measure Range: 0-1000/2000ppm Resolution: 0.1µg/m3, 1µg/m3
Sampling Method:: Pumping Suction Alarm Type: Sound, Light And Vibration
Packing: Aluminum Suitcase Weight: 300g
Battery Type: Lthium Polymer Explosion-Proof: Ex Ia II CT4
High Light:

Infrared SF6 Gas Leak Detector


Switchgear SF6 Gas Leak Detector


Infrared Sulfur Hexafluoride Gas Detector

Product Description

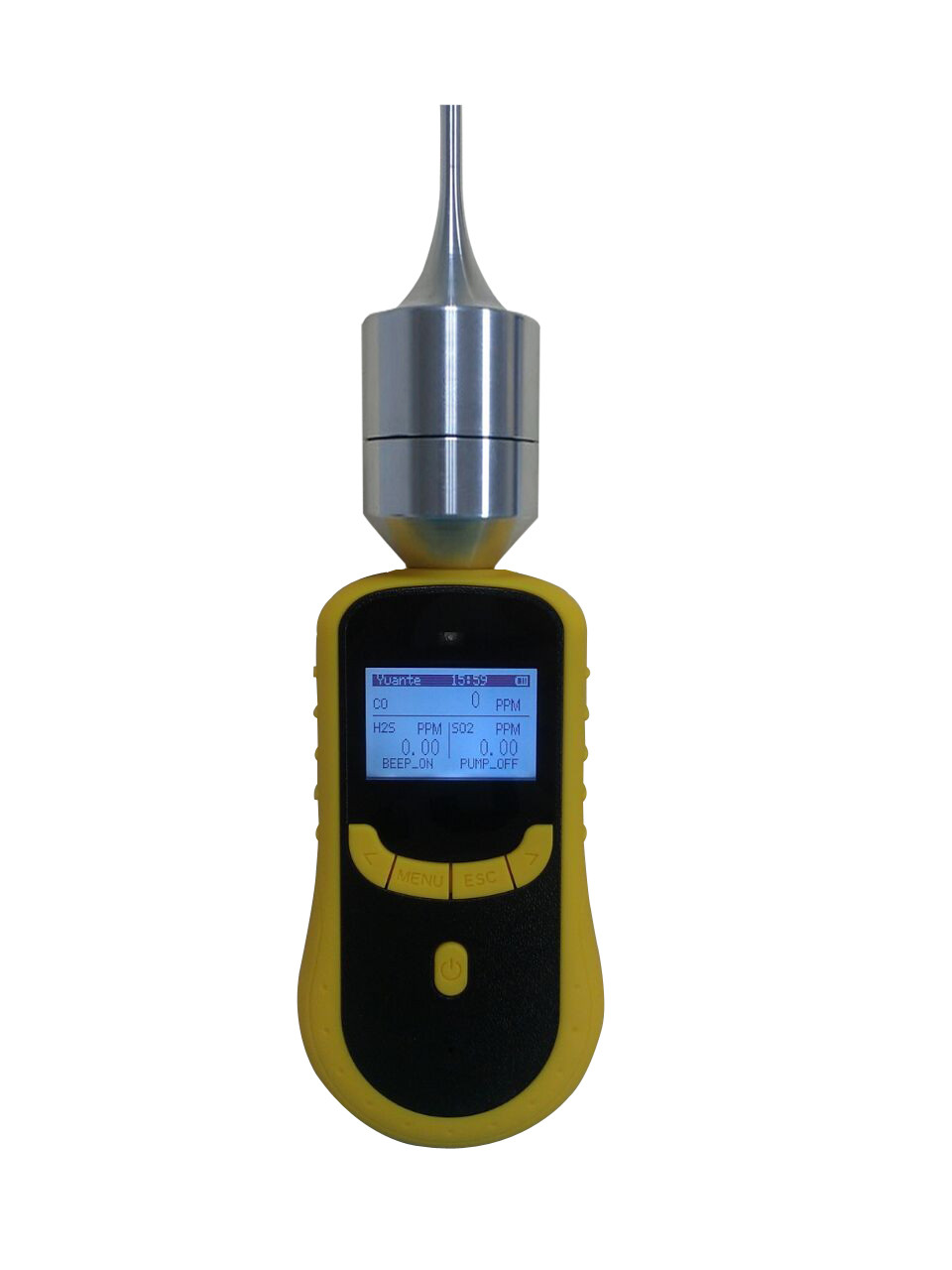

Infrared Testing Sulfur Hexafluoride SF6 Gas Leak Detector Used in Gas Insulated Switchgear ​

Company Profile

Shenzhen Yuante Technology Co., Ltd. was established in 2010 and has been focused on designing, producing, and selling high-end gas detection equipment and systems for 16 years. With "gas detector" as our core product, we customize our production lines and solutions according to different industries such as petroleum, chemicals, pharmaceuticals, energy, environmental protection, electronics, municipal services, agriculture, forestry, and household appliances. After nearly 10 years of rapid development, FAR has become an influential supplier in the industry.


Product Overview

The SKY2000 series gas detector is a fast-response and high-precision device for gas measurement. It features a built-in sampling pump that enables fast sampling speed and large flow, ensuring the response time of the detector. With its unique design and small size, it is easy to carry. Additionally, it comes with a special high-strength engineering plastic housing designed for different situations and environments. We are committed to providing you with the most reliable, accurate, and safe gas detection solutions.


Gas Detected Sulfur Hexafluoride/ SF6
Detection principle Infrared
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 0-1000/2000ppm
Resolution 1ppm
Precision 3% F.S.
Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%F.S/year Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃-50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT4 Degree of protection IP66
Alarm mode Sound, light, vibration Operating time

pump off

Dimensions 205*75*32mm Weight 300g

Product Functions

  1. Dual-level sound and light alarm with adjustable alarm points.
  2. Certified as explosion-proof with an explosion-proof grade of Ex ia IIC t4 Ga.
  3. Built-in micro sampling pump with 10 levels of suction.
  4. Quickly switchable gas concentration units between PPM and mg/m³.
  5. Supports both Chinese and English operations, facilitating convenient switching.
  6. Monitors the concentration of special gases in the environment and enclosed spaces and provides an alarm.
  7. Equipped with self calibration and zero calibration functions, ensuring more accurate and reliable detection.
  8. One-click restoration to factory settings, eliminating the need for concentration compensation due to misoperation under different temperature or pressure conditions.

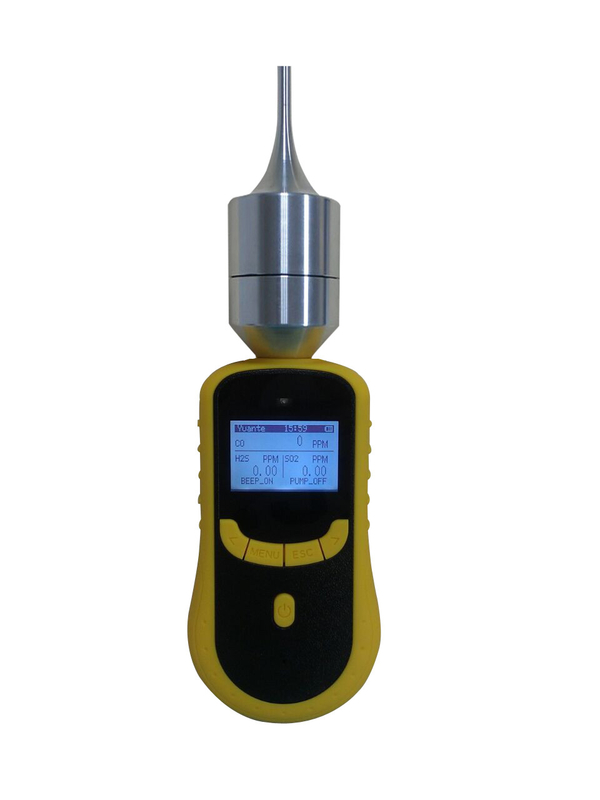

Infrared Testing Sulfur Hexafluoride SF6 Gas Leak Detector for Gas Insulated Switchgear 0




Can I order a sample?
Yes, samples are available for testing and quality verification.


Do you have a minimum order quantity?
No, we do not have a minimum order quantity. Single orders are welcome.


What are the terms of payment?
We accept Visa, Mastercard, e-check, Wire transfer, Western Union, and Alipay.


How about the packing?

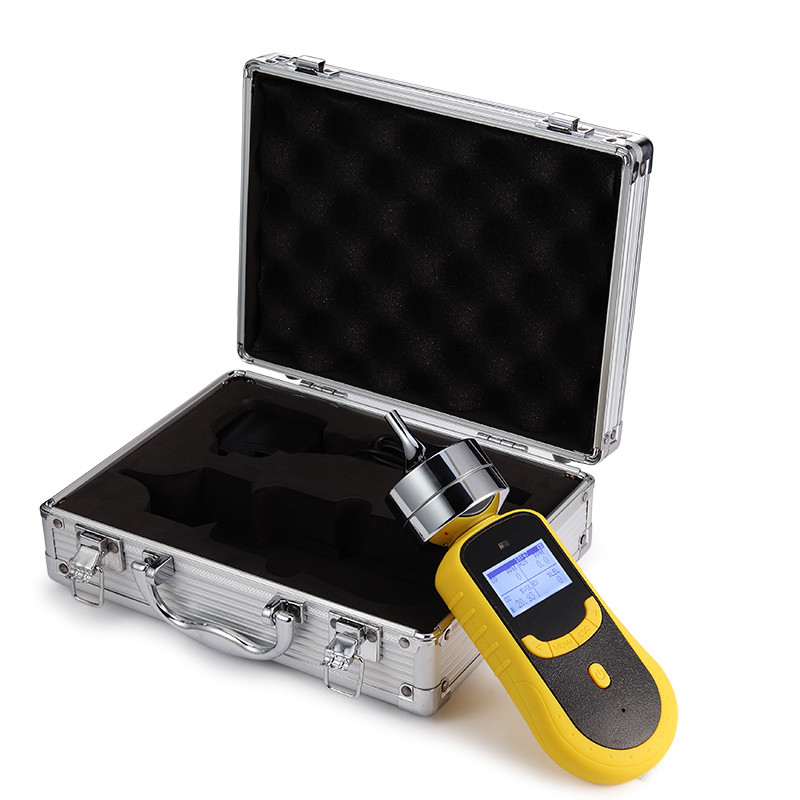

Our packaging is an aluminum suitcase and carton.


What certificates do you have?
We have ATEX, IECEX, CE, ISO, CNEX explosion protection, CMC, and if you have any other certification requirements, we are also willing to assist you.
