| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | IECEX/ATEX/CE |
| Model Number: | YT-98H-A |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, Credit Card |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-98H-A | Detected Gas: | Customized |
|---|---|---|---|
| Sensor Principle: | Infrared | Measure Range: | Customized |
| Resolution: | Customized | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 5 KG |
| Product Size: | 286*202*96mm | Warranty: | 12 Month |
| High Light: | Multi Fixed Toxic Gas Leak Detector,Gas Leak Detector Safety Protection |
||

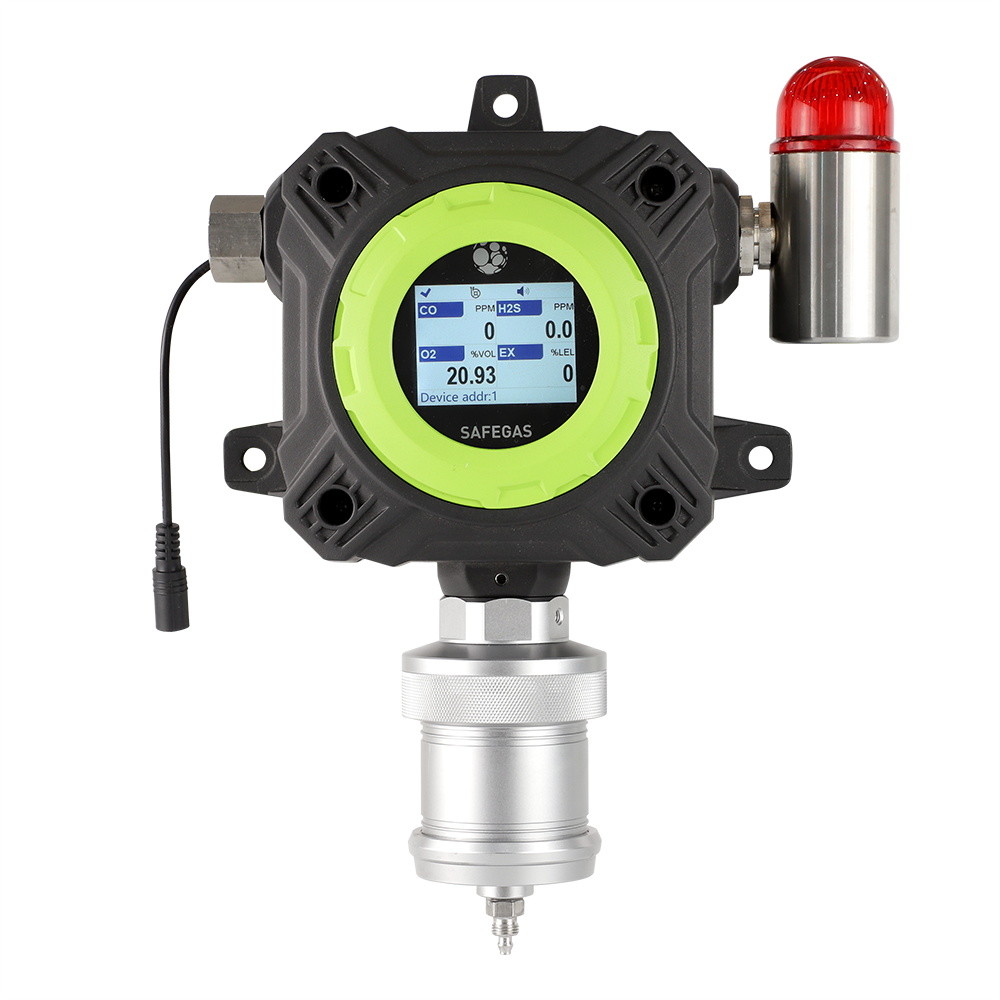

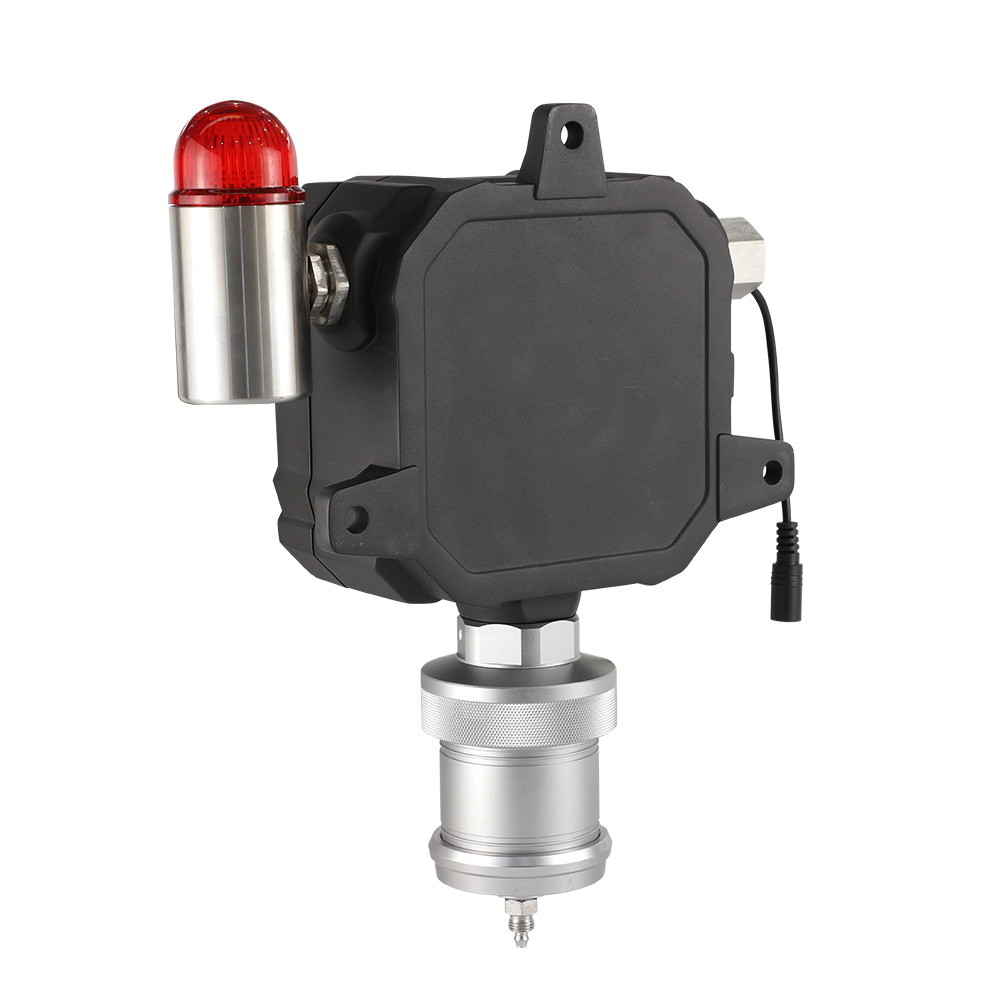

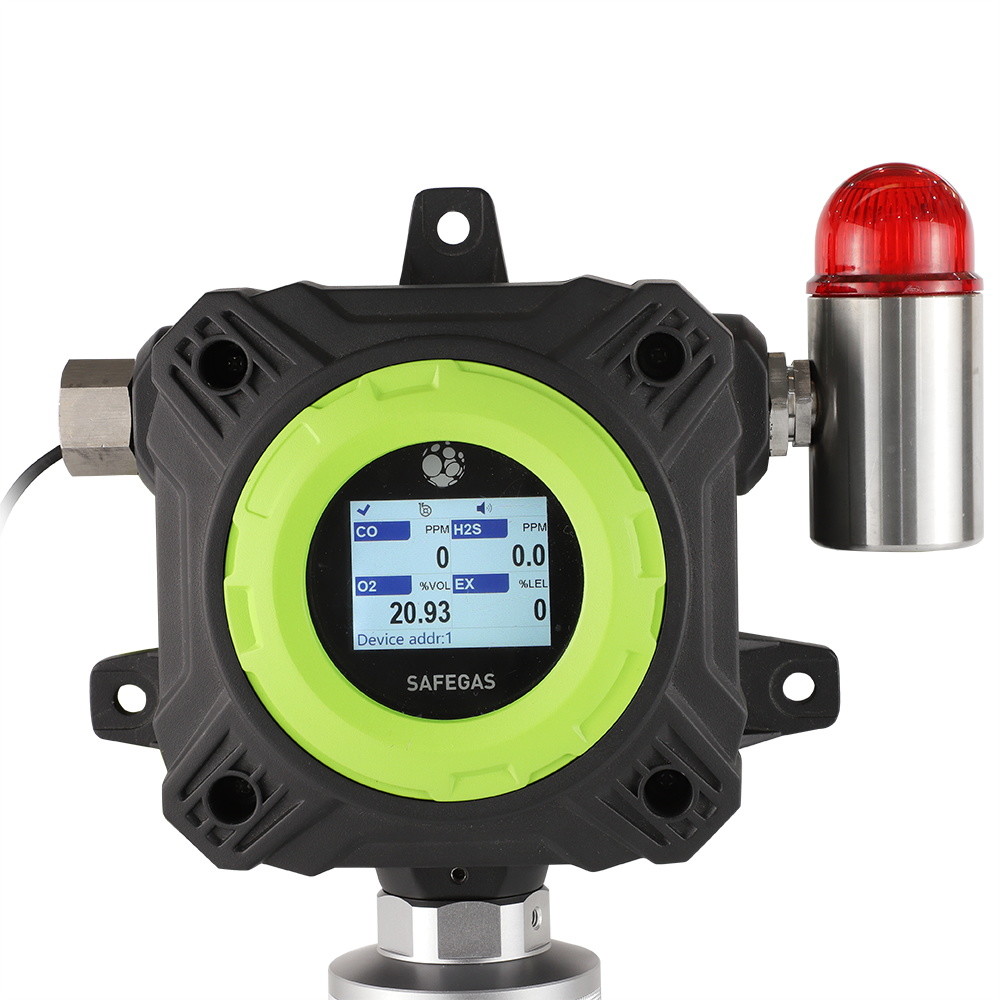

Pumping Suction&Diffusion Dual Use Multi Fixed Toxic Gas Detector for Safety Protection
Company profile
Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 13 years. With gas detector as the core product, we have completed production line and solutions according to different industries.
We supply portable and fixed detectors for oxygen, toxic gas, explosive gas, and etc, mainly for industrial use. All sensor(main parts of detector) we use are imported from USA, Japan, Korea and Europe, there are brands like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Product Overview
Specification
| Gas detected | Customizable | ||
| Detection principle | Electrochemistry, Infrared, catalytic combustion | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | Customrized | ||
| Resolution | Customrized | ||
| Precision | ± 3% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display |
2.4 inch color display, resolution 320*240
|
|
Wireless output (optional):
|
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
|
Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex db ⅡC T6 Gb | Degree of protection | IP66 |
| Alarm | Sound, light |
Language:
|
Chinese / English
|
| Dimensions |
(H x W x D) 320*210*110mm
|
Weight | 3.4kg |
YT-98H-A Product advantages
