| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | IECEX/ATEX/CE |
| Model Number: | YT-98H-A |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, Credit Card |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-98H-A | Detected Gas: | Customized |
|---|---|---|---|
| Sensor Principle: | Infrared | Measure Range: | Customized |
| Resolution: | Customized | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 5 KG |
| Product Size: | 286*202*96mm | Warranty: | 12 Month |
| High Light: | CH3br Fumigation Gas Detector,pH3 Fumigation Gas Detector,Customized Gas Leak Detector |
||

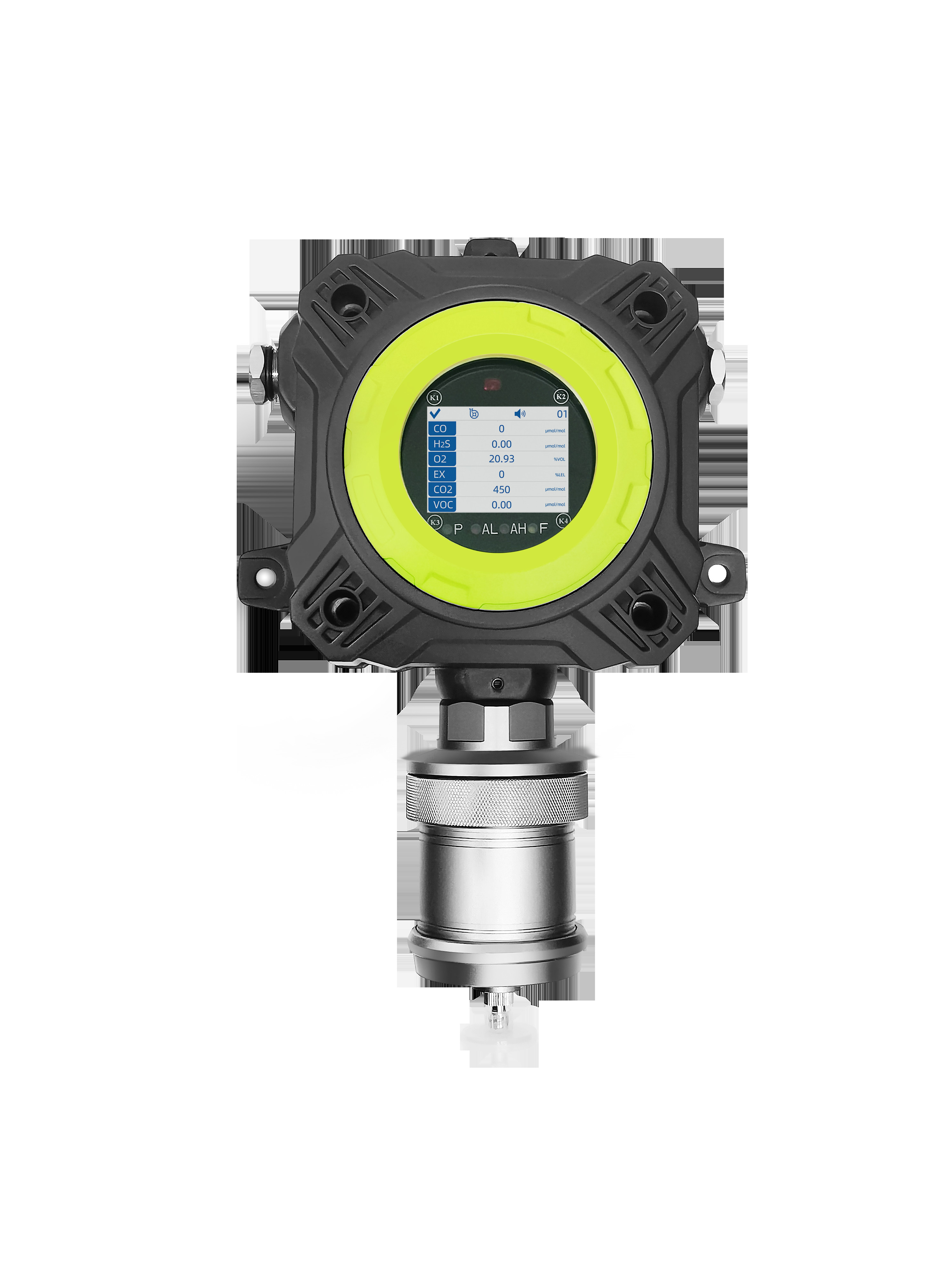

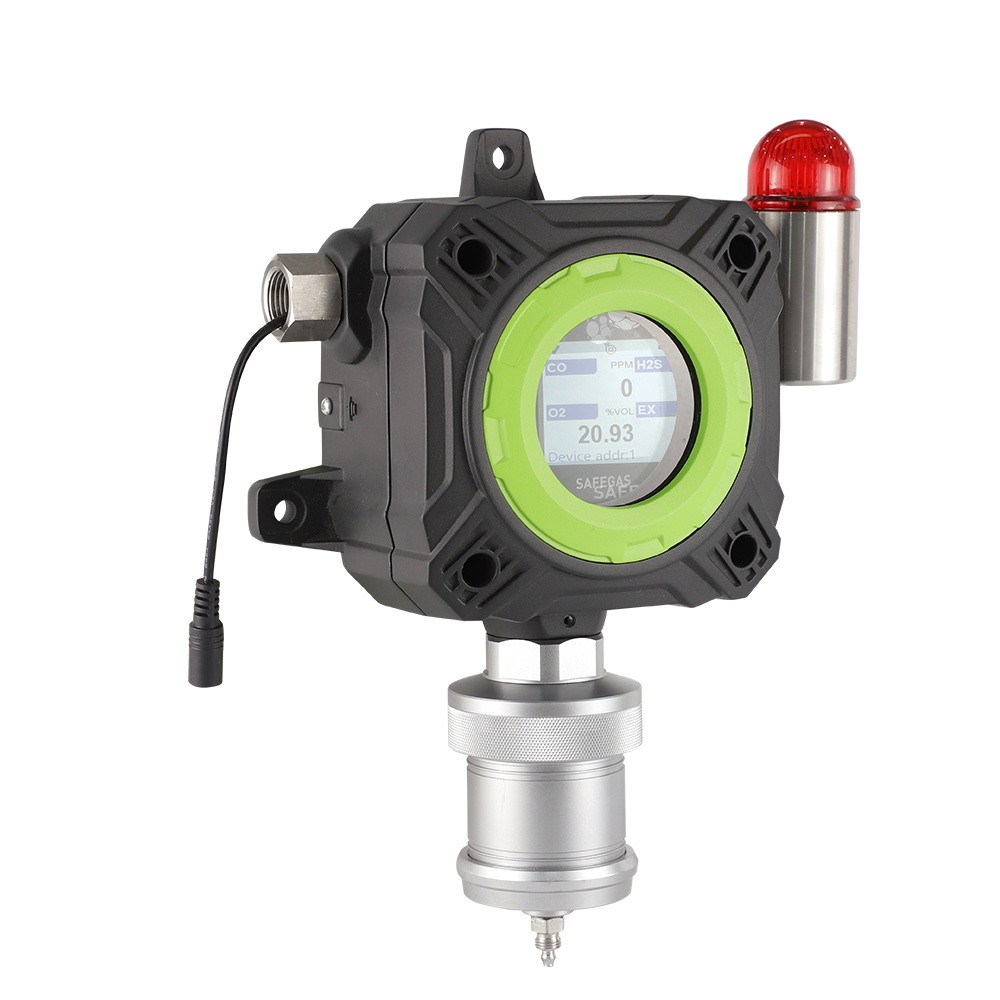

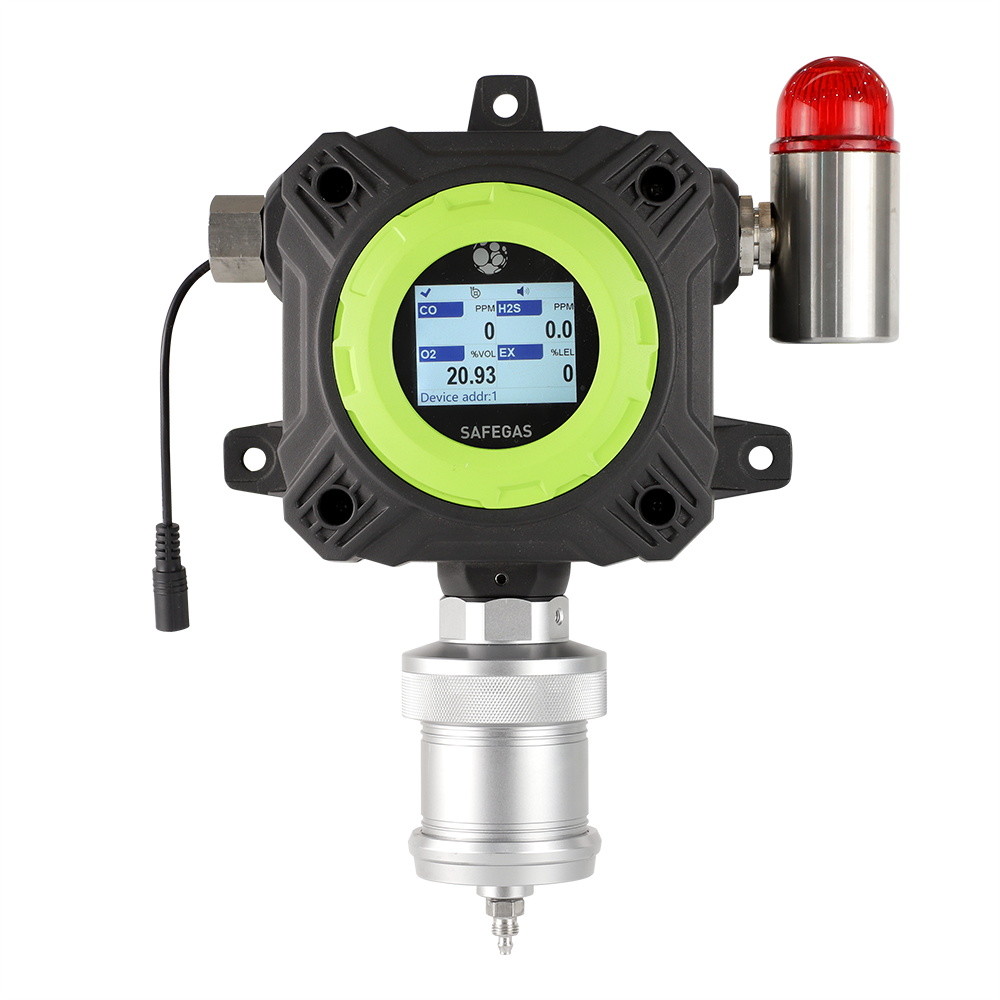

China Fumigation Gas Detector Supplier CH3br pH3 with Alarm Light calibration certificate
Company profile
Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and
Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.
Product Overview
Specification
| Gas detected | CH3Br, PH3 | ||
| Detection principle | Electrochemistry, PID | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-100, 200, 1000, 2000, 3000ppm,etc | ||
| Resolution | 0.1ppm, 1ppm | ||
| Precision | ± 3% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display |
2.4 inch color display, resolution 320*240
|
|
Wireless output (optional):
|
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
|
Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex db ⅡC T6 Gb | Degree of protection | IP66 |
| Alarm | Sound, light |
Language:
|
Chinese / English
|
| Dimensions |
(H x W x D) 320*210*110mm
|
Weight | 3.4kg |
YT-98H-A Product advantages
Standard accessories:
1. One gas detector
2. One infrared Ray controller
3. One user manual
4. One Certificate of conformity & Warranty card
5. One package box
Optional accessories:
1. Switch power supply
2. Alarm light
3. High temperature probe
4. Mounting brackets
5. Power adapter (24V DC)
6. Calibration cap
