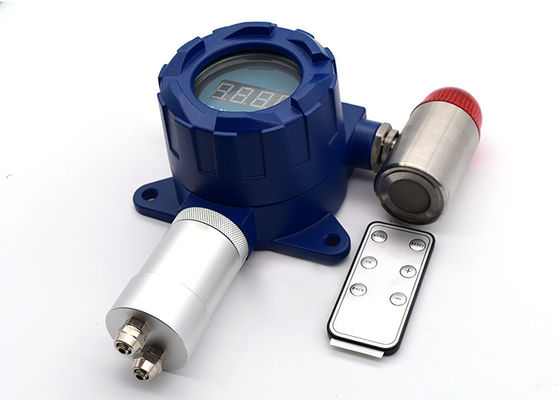

Paint Room Hydrogen Winery Warehouse Gas Detector Alarm Fixed Combustible Gas Detector

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX,ISO9001,CE
Model Number: YT-95H
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Device Type: Fixed Application: Paint Room Winery Warehouse
Sampling Type: Diffusion Test Gas: Hydrogen Combustible Gas
Feature: Explosion-Proof Product Name: Alarm Fixed Combustible Gas Detector
High Light:

IP65 Combustible Gas Leak Detector

,

CNEX Fixed Gas Leak Detector

,

IP65 Combustible Gas Detector


Product Description

Paint Room Hydrogen Winery Warehouse Gas Detector Alarm Fixed Combustible Gas Detector



YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations.



Features

  • Monitor the specific gas concentration in environment or pipeline and alarm.
  • With self-calibration and zero calibration function, makes the detection more accurate and reliable.
  • With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
  • Two-stage alarm with sound and light, alarm point is settable.
  • Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
  • Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.
  • Working Voltage:12-36V DC
  • Case:die-cast aluminum + stainless steel (alarm light)
Gas Detected Hydrogen Combustible Gas
Detection principle Electrochemistry
Install methode Wall-mounted, piping type, flow-type(according to the detected environment)
Measure Range Customized
Resolution Customized
Precision ≤± 3% F.S.
Signal Output 4-20MA, RS485, relay
Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(F.S/year) Display High light nixie tube display
Operating language

G1/2 external thread explosion-proof

flexible pipe

Gas unit ppm
Temperature -20ºC~50ºC Humidity 0-90%RH
Explosion-Proof Ex d II CT6 Degree of protection IP65
Alarm mode Sound, light Operating time 24h
Dimensions 180*150*90mm Weight ≤1.6kg

Paint Room Hydrogen Winery Warehouse Gas Detector Alarm Fixed Combustible Gas Detector 0





​Company Profile



Our company Shenzhen Yuante Co., Ltd is specializing in the production, research and development of gas detector for more than 10 years. We have ATEX, IECEx, CE and ISO certificate. Main product have SKY2000, SKY3000, SKY6000, SKY8000, YT-95H and YT-1200H. We have portable one and fixed one. Welcome to consult.





Paint Room Hydrogen Winery Warehouse Gas Detector Alarm Fixed Combustible Gas Detector 1



Installation

Paint Room Hydrogen Winery Warehouse Gas Detector Alarm Fixed Combustible Gas Detector 2



FAQ

1, Q: What about after-sale service?
A: 12 months warranty for all kinds of products; we also provide life-long paid service.

2, Q: What about lead time?
A: Usually we offer 3-7 working days after order confirmed and payment received.



3,Q: What about the Shipping method?
A: Please kindly note that our product are on EXW term, and need caluclate the freight based on the quantity. Once you have the order, please contact us to check the discounted freight.



We choose the DHL, UPS, FedEx express normally. (Also you can arrange the express to pick up the parcel from our factory)



4, Q: Does your company accept customization?
A: Contact us first. As a factory, we can do customizing service on the condition of Quantity.
