| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX，CE，IECEX, SIL |
| Model Number: | SG100 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase Packing |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 100 pieces/day |
| Model: | SG100 | Range: | 0-5, 20, 50, 100, 200, 500, 1000, 2000, 5000ppm |
|---|---|---|---|
| Resolution: | 0.1ppm, 0.01ppm, 1ppm | Sampling Mode: | Diffusion |
| Testing Principle: | Electrochemistry | Color: | Black |
| Remote: | Infrared Remote Control, Magnetic Bar | Weight: | 1kg |
| Size: | 157.8*128.8*69.6mm | Signal Transmission: | RS485, 4-20mA, Relay |
| High Light: | Industrial Level Fixed Gas Detector,Flammable Toxic Gas Detector,Toxic Gas Detector IECEX |
||
Industrial Level Fixed Gas Detector Toxic Gas Flammable Gas Detection Iecex/Atex

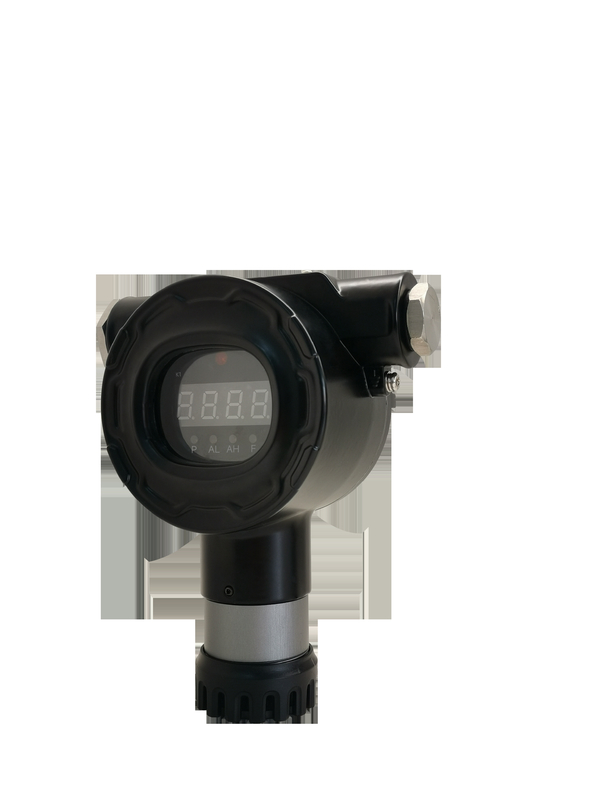

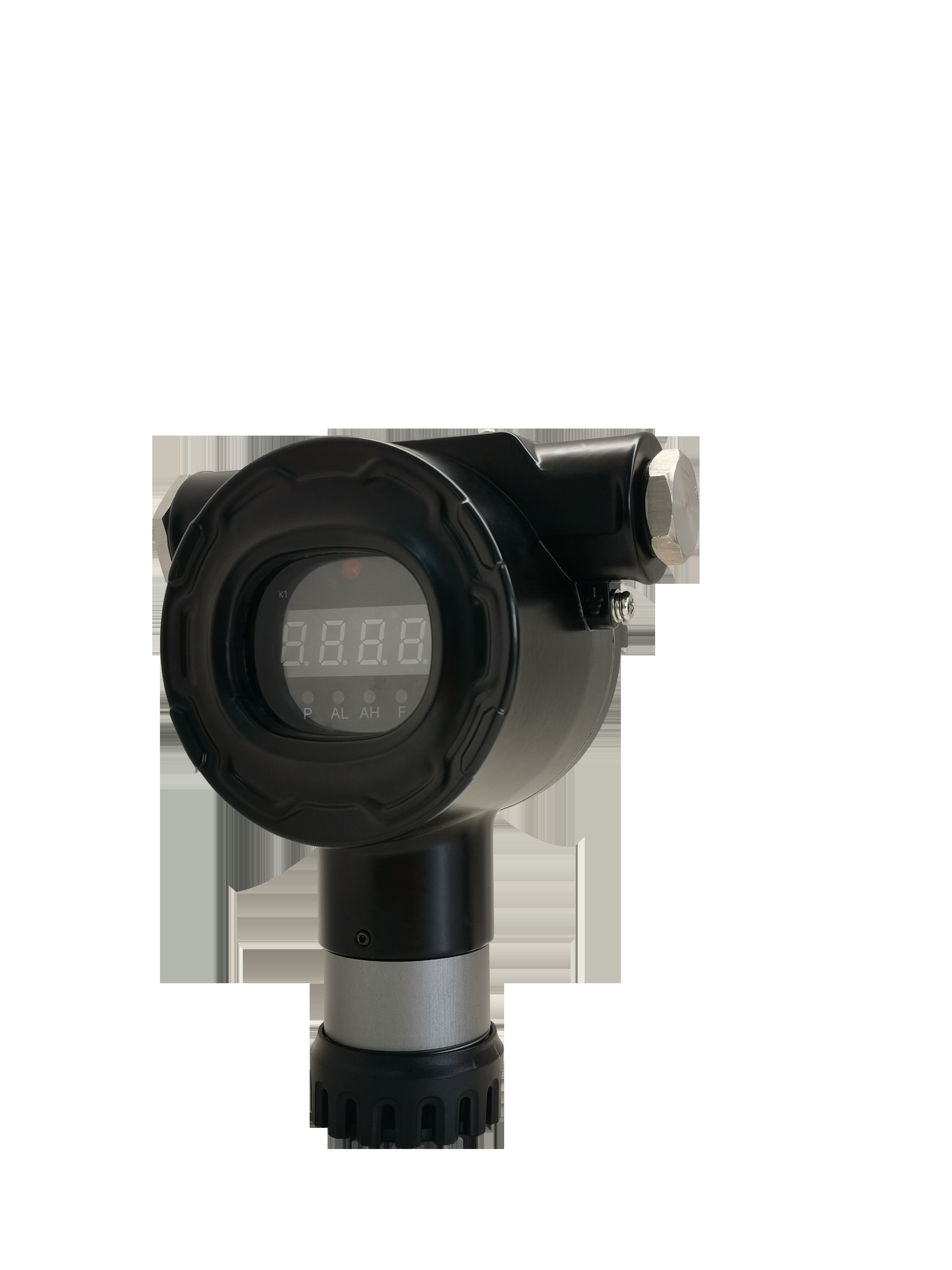

SG100 overview
SG100 series is an IECEX/ATEX/EMC certified single-gas detector with a rating of IP67, which is a 24-hours online gas monitor. It has standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output, making it compatible with most control systems. Adopt magnetic wand design, it’s safe and easy to operate in explosion areas.
With IECEx, ATEX certificates, explosion level reaches Ex db IIC T6 GB/Ex db ia IIC T6 GB/Ex da db ia IIC T6 GB.
Product Advantages

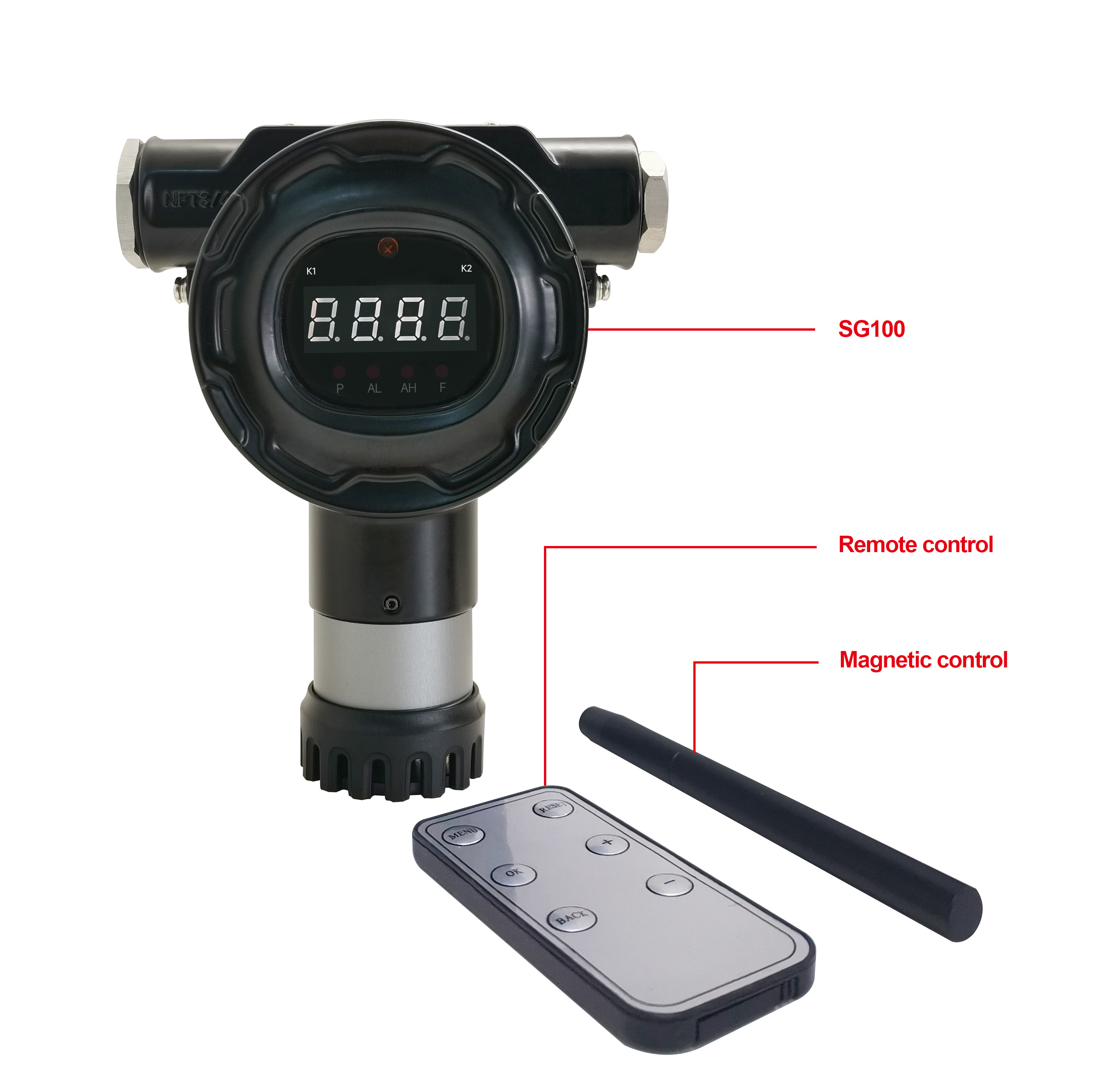

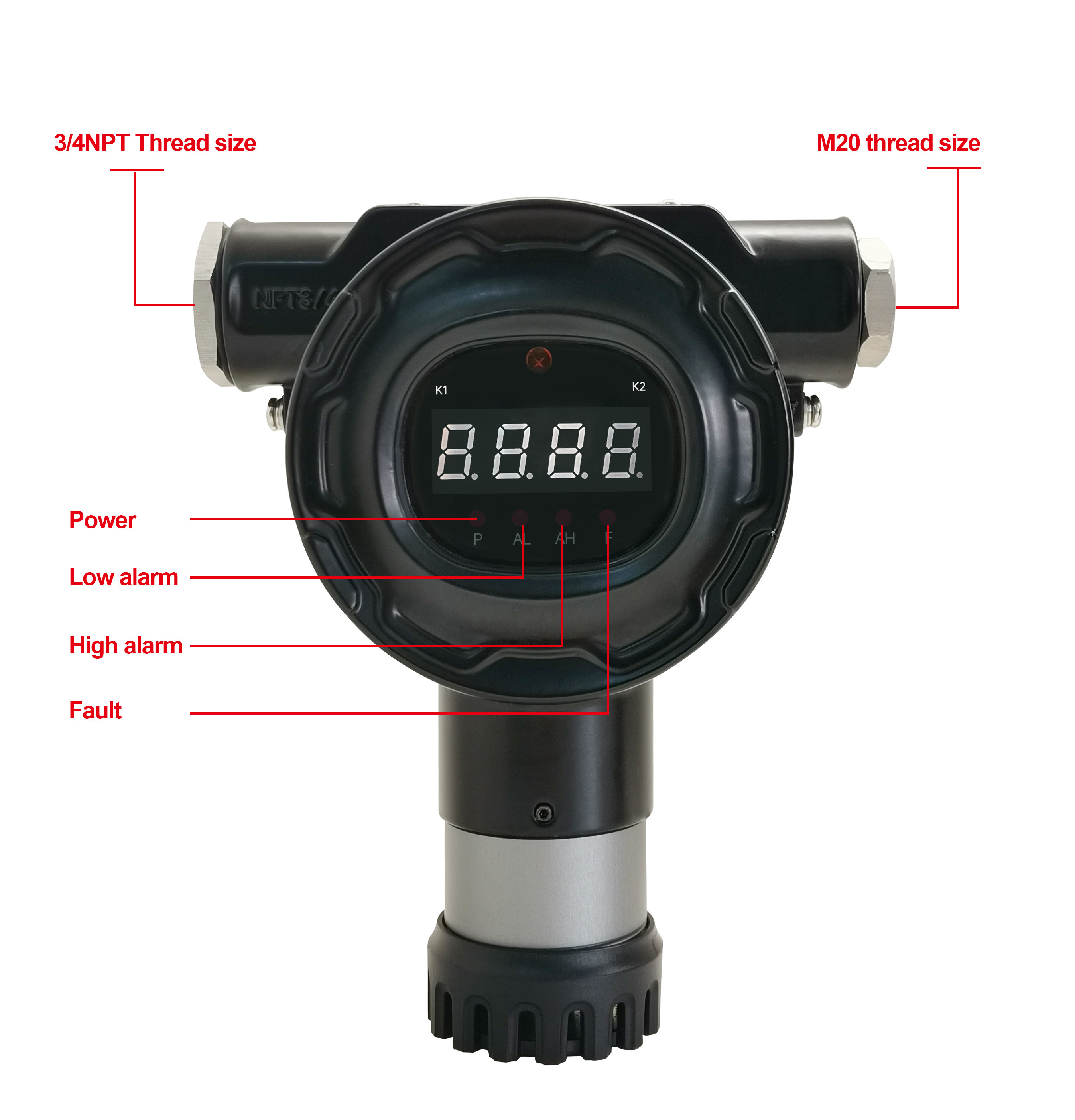

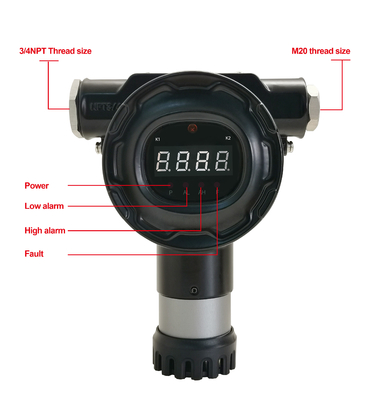

Picture details
Specification
| Detected Gas | Customized |
| Measure Range | Customized |
| Install Method | Wall-mounted, piping type, flow-type |
| Output signal | 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
| Precision | ≤±1%F.S. (to be specialized) |
| Zero shift | ≤±1%(F.S./year) |
| Display | 4 digits Nixie tube display. |
| Connection mode | G3/4 external thread explosion-proof flexible pipe |
| Thread Size | Standard M20*1.5, 3/4NPT |
| Temperature | –20℃～50℃ (electrochemistry principle), –40℃～70℃ (catalytic combustion principle) |
| Humidity | 10-95%RH (non-condensing) |
| Explosion-Proof | Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Degree of protection | IP66/IP67 |
| Material | Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-24V DC |
| Dimensions | 158×129×70mm |
| Weight | ≤1kg |
| Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty | 12 months |
Safegas- Company profile
Our company Safegas is the leading manufacture of gas detector in China. We focuses on the design, production and sales of gas detection equipment and system for 13 years.
The best advantages of our products is that we have obtained IECEX/ATEX international explosion-proof certifications, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
All sensor(main parts of detector) we use are imported from international brands, like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.
What is our advantage
