| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX，CE，IECEX, SIL |
| Model Number: | SG100 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase Packing |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 100 pieces/day |
| Model: | SG100 | Range: | 0-1、10、50、100、500、1000ppm |
|---|---|---|---|
| Resolution: | 0.001ppm, 0.01ppm, 0.1ppm | Sampling Mode: | Diffusion |
| Testing Principle: | Electrochemistry | Color: | Black |
| Remote: | Infrared Remote Control, Magnetic Bar | Weight: | 1kg |
| Size: | 157.8*128.8*69.6mm | Signal Transmission: | RS485, 4-20mA, Relay |
| High Light: | Pharmaceutical Factory HCHO Detector,Fixed Formaldehyde Gas Detector,RS485 HCHO Detector |
||
Pharmaceutical factory disinfection HCHO Fixed Formaldehyde Gas Detector 4-20mA, RS485

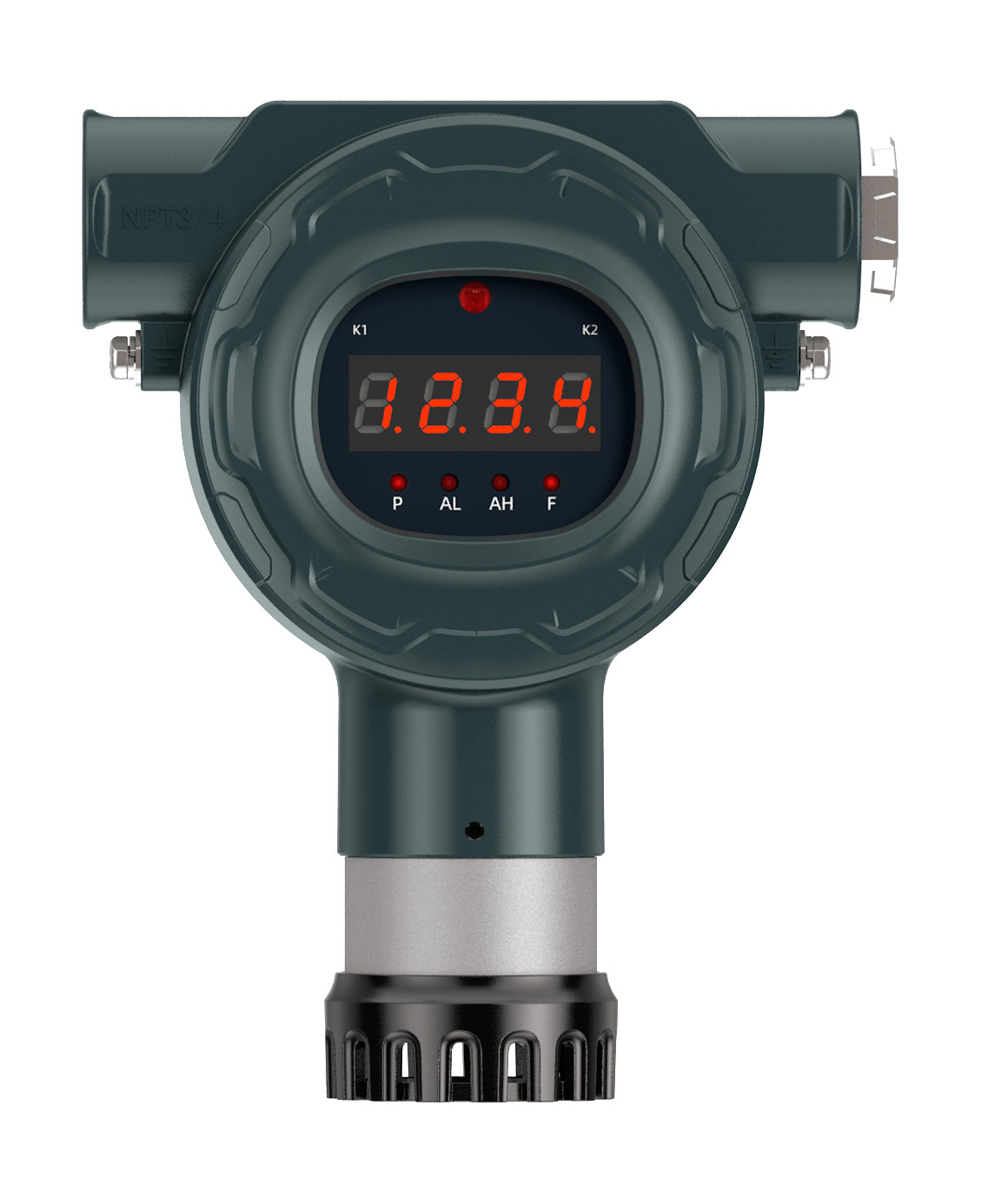

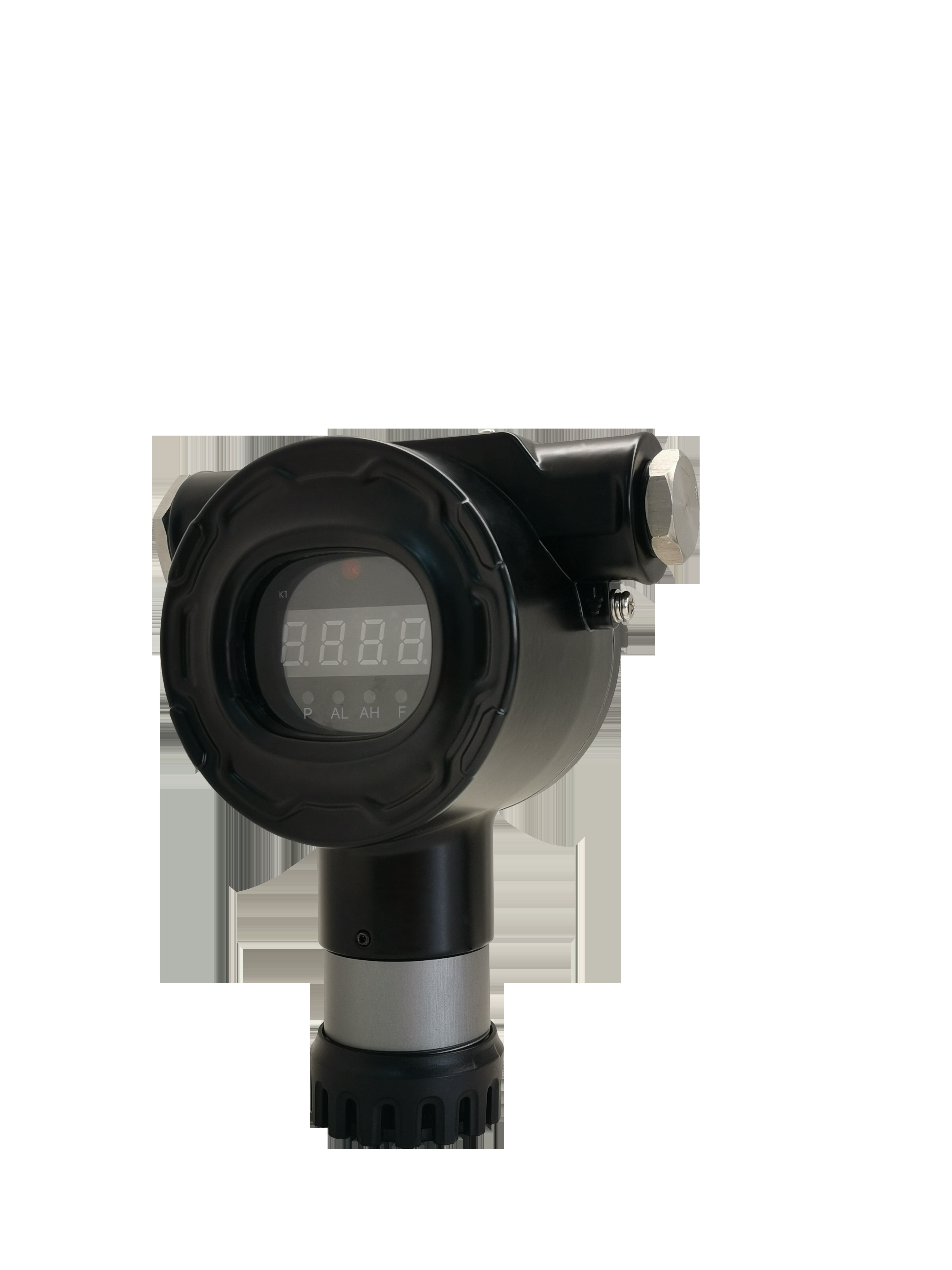

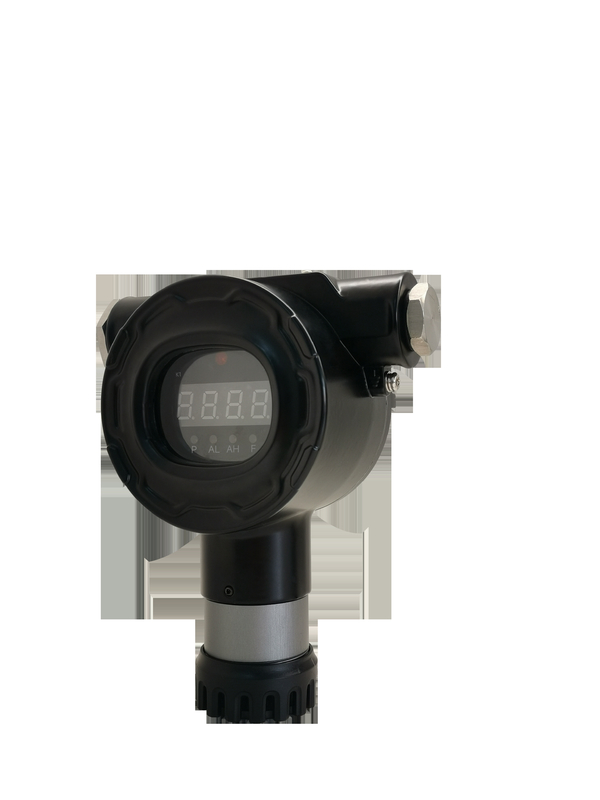

SG100 overview
SG100 series is an IECEX/ATEX/EMC certified single-gas detector with a rating of IP67, which is a 24-hours online gas monitor. It has standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output, making it compatible with most control systems. Adopt magnetic wand design, it’s safe and easy to operate in explosion areas.
With IECEx, ATEX certificates, explosion level reaches Ex db IIC T6 GB/Ex db ia IIC T6 GB/Ex da db ia IIC T6 GB.
Product Advantages
Picture details
Specification
| Detected Gas | HCHO/Formaldehyde |
| Measure Range | 0-1,10,50,100,500,1000ppm |
| Install Method | Wall-mounted, piping type, flow-type |
| Output signal | 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
| Precision | ≤±1%F.S. (to be specialized) |
| Zero shift | ≤±1%(F.S./year) |
| Display | 4 digits Nixie tube display. |
| Connection mode | G3/4 external thread explosion-proof flexible pipe |
| Thread Size | Standard M20*1.5, 3/4NPT |
| Temperature | –20℃～50℃ (electrochemistry principle), –40℃～70℃ (catalytic combustion principle) |
| Humidity | 10-95%RH (non-condensing) |
| Explosion-Proof | Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Degree of protection | IP66/IP67 |
| Material | Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-24V DC |
| Dimensions | 158×129×70mm |
| Weight | ≤1kg |
| Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty | 12 months |

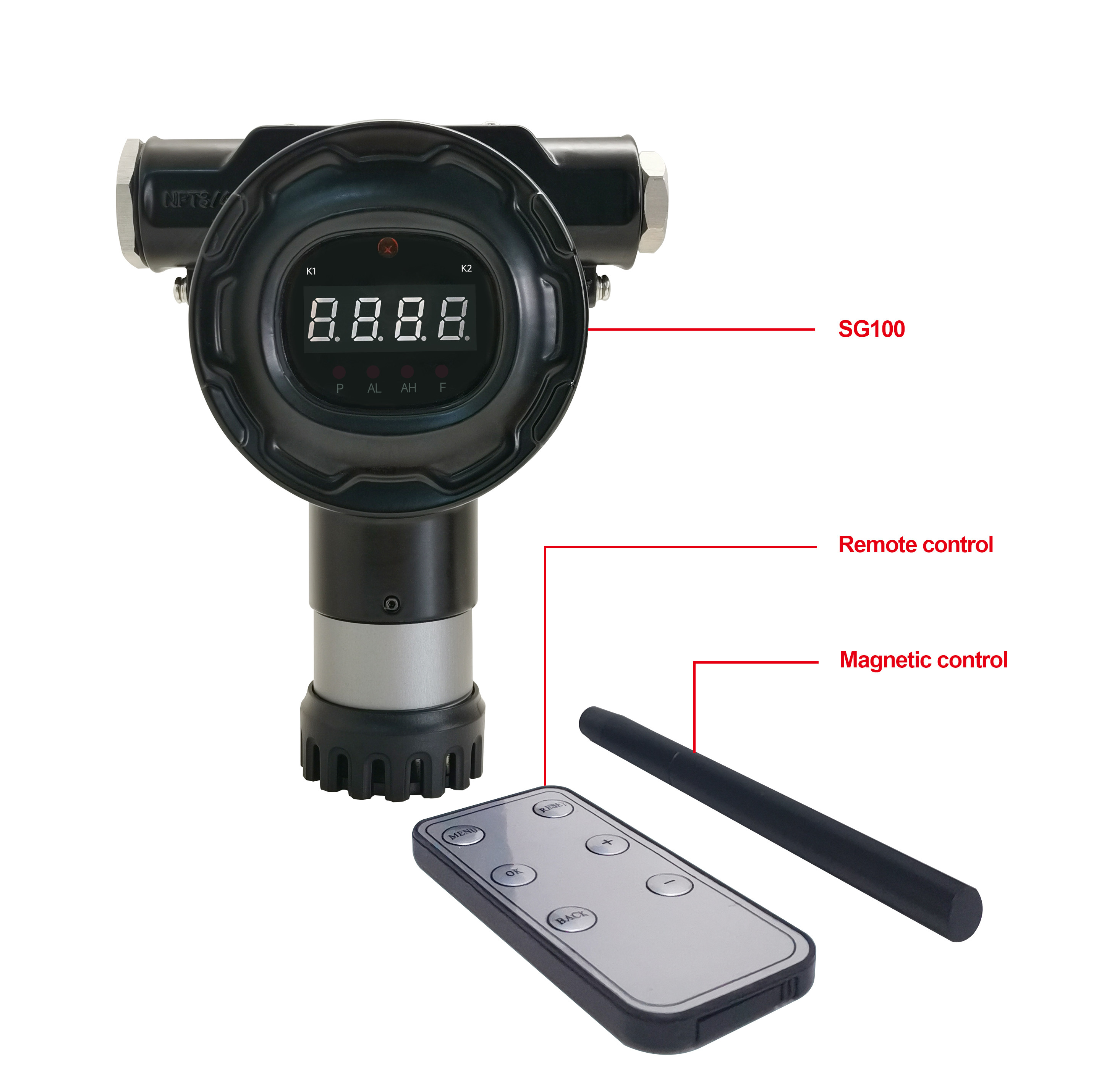

SG100 with Remote control and Magnetic control
Safegas- Company profile
Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 13 years. With gas detector as the core product, we have completed production line and solutions according to different industries.
We supply portable and fixed detectors for oxygen, toxic gas, explosive gas, and etc, mainly for industrial use. All sensor(main parts of detector) we use are imported from USA, Japan, Korea and Europe, there are brands like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available
Q3: Does your company accept customization?
A3: We do customizing service for customers.
Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.
Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for all kinds of products.
Q6: How about the Calibration?
A6: Before send out, we will calibrate each pieces well with standard gas.
Q7: What certifications do you have?
A7: ATEX CE ISO9001-2015.
