| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | ATEX, CNEX, ISO9001,CE |
| Model Number: | SKY8000-WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100 pieces/week |
| Detected Gas: | CO NO NO2 NOX H2S SO2 O3 CH2O VOC, Etc Different Gases | Poduct Name: | Professional Air Quality Analyzer |
|---|---|---|---|
| Sampling Method: | Built In Pump Type | Alarm Type: | Sound&Light&Vibration |
| Analyzer Size: | 260*230*120mm | Analyzer Weight: | 3700g |
| Charging Method: | Charger Or USB Cable | Package: | With Aluminum Suitcase |
| Highlight: | NOX H2S Multi Gas Detector,CH2O VOC Multi Gas Detector,NO NO2 Multi Gas Analyzer |
||

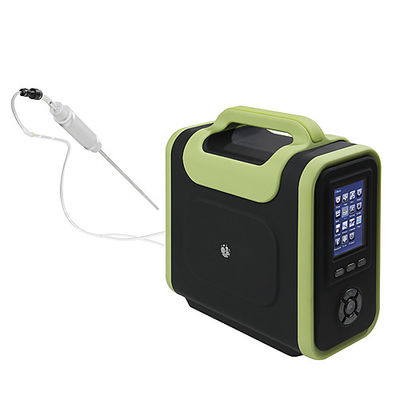

Professional Air Quality Measurements CO NO NO2 NOX H2S SO2 O3 CH2O VOC Gas Analyzer With Printer
Air Quality Analyzer Features
1. Using world top brand sensors, the test results are more reliable and can be certified by third party authorities
2. Multiple industrial pump gas sampling, ten grades of pumping flow rate for selection.
3. Gas detection flow can be customized according to different testing environments. Each module is equipped with multi-layer filtering device, which can filter oil, water, dust and other impurities efficiently.
4. Modular internal structure, supporting 1-18 gas detection requirements
5. Simple and quick screenshot settings
6. Monitor the temperature, humidity, pressure at the same time(Optional)
7. Bluetooth, ZIGBEE, WIFI, GPRS and other wireless communication modes are selectable(Optional)
8. Analyzer can be equipped with internal printer or external Bluetooth printer, to realize the mobile print function(Optional)
9. High temperature, high humidity environment measurement(Optional)
10. Large capacity quick storage function, storage space can be customized
11. An independent SD memory card, historical tested data can be viewed and deleted
12. Single curve, multi-curve, data and other gas concentration display mode are switchable
13. Various gas concentration units can be shifted freely
14. High capacity of lithium polymer rechargeable battery, super long service life and standby time
15. Mini-USB charging interface design with common data cable and mobile power can be charged anytime, anywhere
16. 3.5-inch hd LCD screen with resolution 320* 480, beautiful and useful menu interface
17. Selected aviation wear-resisting material, suitable for various kind of industry environment
Air Quality Analyzer Specification
| Sensors | Professional Atomosphere Sensors, Electrochemistry, PID, IR, Catalytic combustion, according to sensors. |
| Measure range | 0-1ppm, 0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm, 0-5000ppm, 0-10000ppm, 0-50%VOL, 0-100%VOL (Measure range is optional and customized) |
| Resolution | 0.001ppm, 0.01ppm, 0.1ppm, 1ppm, 0.01%VOL, according to measure ranges and sensors. |
Display |
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm | Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage | Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval. |
| Data transmission and download | RS232,RS485 signal output, USB interface data transmission, with the upper computer software, can download storage, analyze and print data |
| Print function(Optional) | Optional with internal portable printer or external Bluetooth printer |
| Print content(Optional) | Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
Charger |
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer ) |
| Language | Chinese/English |
| Wireless network (optional) | Bluetooth, Zigbee |
| Network frequency | 2.4G high frequency. |
| wireless transmission distance | Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m. |
Air Quality Analyzer Applications
Accessories & Configuration List
Standard Accessories
SKY8000 Air Quality Analyzer

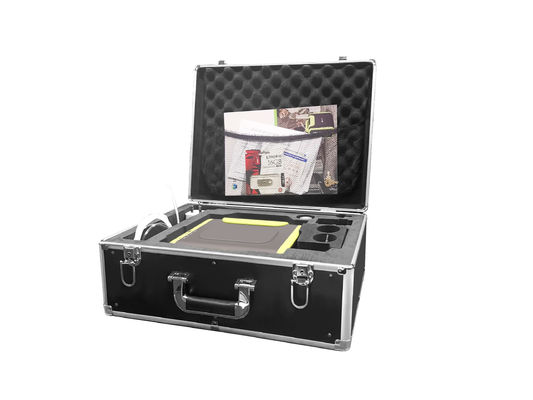

Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
100°C high temperature probe
Filter
USB cable
Optional Accessories
Probe: 600°C, 1200°C imported from Germany
Bluetooth printer
