|Place of Origin:||China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Aluminum Suitcase|
|Delivery Time:||3-5 working days|
|Payment Terms:||Western Union, T/T|
|Supply Ability:||1000 pieces/week|
|Detected Gas:||O2||Measure Range:||0-25%VOL|
|Sampling Method:||Pumping Suction||Alarm Type:||Sound, Light, Vibration|
|Charging Method:||Power Adapter, USB Cable||Packing:||Aluminum Suitcase|
industrial gas monitors,
gas leak detector

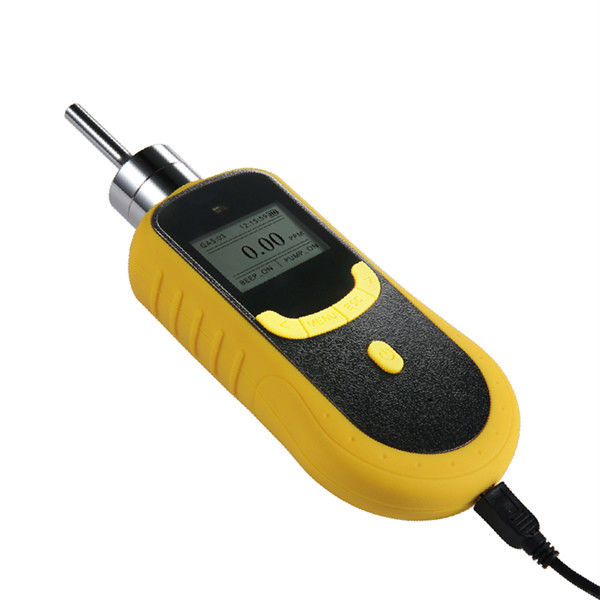

High-Quality Handheld 0-25%Vol O2 Single Gas Detector With Built-In Pump
To detect the oxygen O2 is also very important in mining environments. Breathing oxygen is absolutely necessary to human life. It’s very necessary to detect the oxygen level inside the coal mines, especially the confined spaces. YuanTe’s O2 gas detector is accurate and can be trusted for different applications.
|Sampling Method||Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.|
|Precision||≤± 2% F.S.|
High-speed data transmission by USB, available for data downloading and
|Response Time||≤10S||Recovery Time||≤10S|
|Zero shift||≤±1%(F.S/year)||Display||LCD dot matrix display|
|Operating language||Chinese/English||Gas unit||Units are switchable|
|Explosion-Proof||ExiaⅡCT4||Degree of protection||IP66|
|Alarm mode||Sound, light, vibration||Operating time||100h(pump off)|
1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the O2 Oxygen gas concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.
