Handheld CL2 Chlorine Toxic Gas Detector With Sampling Pump For Industrial Use

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX,ISO9001,CE
Model Number: SKY2000-CL2
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Detected Gas: CL2 Measure Range: 0-10ppm、0-20ppm、0-50ppm、0-100ppm,0-200ppm、0-250PPM
Sampling Method: Pumping Suction Alarm Type: Sound, Light, Vibration
Size: 205*75*32mm Weight: 300g
Charging Method: Power Adapter, USB Cable Packing: Aluminum Suitcase
High Light:

gas measuring device

,

gas leak detector


Product Description


Handheld CL2 Chlorine Single Gas Detector With Sampling Pump For Industrial Use

Chlorine gas is the primary disinfection method for more than 65% of all drinking water in the world. As a disinfectant, chlorine gas is very effective and economical, and is easy to use and maintain.
However, chlorine is a potent irritant to the eyes, upper respiratory tract, and lungs. Long-term exposure to chlorine gas in workers has resulted in respiratory effects – including eye and throat irritation and airflow obstruction. YuanTe’s CL2 gas equipment can check the leak of chlorine gas and provide different alarm settings.

Specifications


Gas Detected

CL2/Chlorine


Detection principleElectrochemistry
Sampling MethodPumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm,0-250PPM
Resolution0.01ppm,0.1ppm,1ppm
Precision≤± 2% F.S.
Signal Output

High-speed data transmission by USB, available for data downloading and
printing (optional function)

Response Time≤10SRecovery Time≤10S
Repeatability≤±1%Linearity error≤±1%
Zero shift≤±1%(F.S/year)DisplayLCD dot matrix display
Operating languageChinese/EnglishGas unitUnits are switchable
Temperature-20℃~50℃Humidity0-95%RH
Explosion-ProofExiaⅡCT4Degree of protectionIP66
Alarm modeSound, light, vibrationOperating time100h(pump off)
Dimensions205*75*32mmWeight300g


Functions:

1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the CL2 Chlorine gas concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.

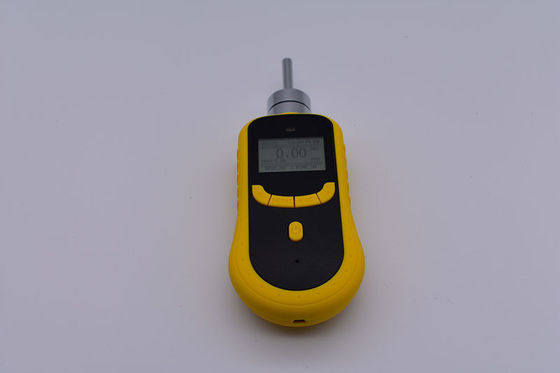

Handheld CL2 Chlorine Toxic Gas Detector With Sampling Pump For Industrial Use 0
