H2O2 Hydrogen Peroxide Gas Detector Single Gas Detector For Pharmaceutical

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX,ISO9001,CE
Model Number: SKY2000-H2O2
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Detected Gas: H2O2 Measure Range: 0-10ppm、0-20ppm、0-50ppm、0-100ppm,0-200ppm
Sampling Method: Pumping Suction Alarm Type: Sound, Light, Vibration
Size: 205*75*32mm Weight: 300g
Charging Method: Power Adapter, USB Cable Packing: Aluminum Suitcase
Highlight:

gas measuring device

,

gas leak detector


Product Description

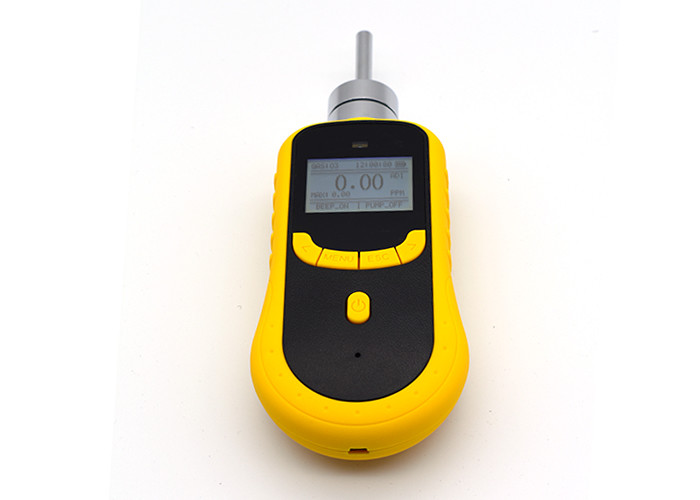

Portable Accurate H2O2 Hydrogen Peroxide Single Gas Detector For Pharmaceutical Industry



Pure hydrogen peroxide is a light blue viscous liquid that is miscible with water in any proportion. It is a strong oxidant. The aqueous solution is commonly called hydrogen peroxide and is a colorless transparent liquid. Its aqueous solution is suitable for medical wound disinfection and environmental disinfection and food disinfection.



Yuante's H2O2 gas detectors are widely used in the chemical industry, pharmaceutical industry, printing and dyeing industry.

Specifications

Gas Detected

H2O2/hydrogen peroxide

Detection principle

Electrochemistry
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm
Resolution 0.01ppm,0.1ppm,1ppm
Precision ≤± 2% F.S.
Signal Output

High-speed data transmission by USB, available for data downloading and
printing (optional function)

Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT4 Degree of protection IP66
Alarm mode Sound, light, vibration Operating time 100h(pump off)
Dimensions 205*75*32mm Weight 300g


Functions:

1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the hydrogen peroxide H2O2 gas concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.


H2O2 Hydrogen Peroxide Gas Detector Single Gas Detector For Pharmaceutical 0
