| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | CNEX, ISO9001, CE |
| Model Number: | YT-1200H-S-O3 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Color paper box |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 pieces/week |
| Detected Gas: | O3 | Measure Range: | 0-1ppm,0-5ppm、10ppm、20ppm、50ppm、100ppm, 0-200ppm、500ppm、1000ppm |
|---|---|---|---|
| Ampling Method: | Diffusion | Alarm Type: | Sound, Light, Vibration |
| Resolution: | 1ppm, 0.01pm, 0.001ppm | Packing: | Color Paper Box |
| High Light: | gas measuring device,gas leak detector |
||

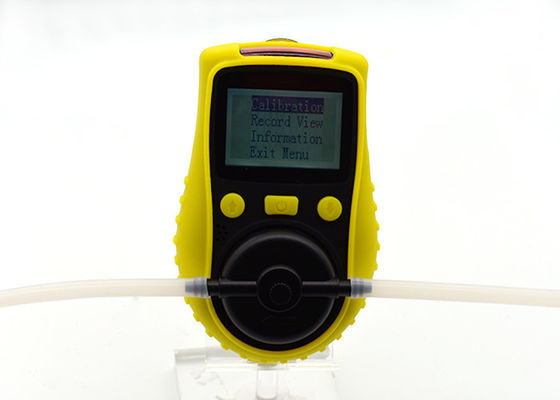

Portable Mini Single O3 Gas Detector ozone meter With UK Sensor
Ozone is kind of broad-spectrum fungicide, it can kill bacterial reproduction, germ, virus, fungus, and it can damage the botulinus toxin. Because ozone molecule is not stable, so it will not pollute the air and water after disinfection. So, most pharmaceutical factories,food factories,Ozone generate companyt use ozone for sterilization in recent years. YuanTe’s Ozone gas detector can help the customers to detect the leak and the sterilization process of ozone gas in their factories.
Specifications
| Gas Detected | O3 | ||
| Detection principle | Electrochemisty | ||
| Sampling Method | Diffusion | ||
| Measure Range | 0-1ppm,0-5ppm,10ppm,20ppm,50ppm,100ppm, 0-200ppm,500ppm,1000ppm | ||
| Resolution | 1ppm, 0.01pm, 0.001ppm | ||
| Precision | ≤± 3% F.S. | ||
| Signal Output | High-speed data transmission by USB, available for data downloading and printing (optional function) |
||
| Charging Time |
4~6h |
Working Time | 14h |
|
Battery |
3.7V |
Capacity |
2300mAh |
| Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃~50℃ | Humidity | 0-95%RH |
| Explosion-Proof | ExiaⅡCT3 | Degree of protection | IP65 |
| Alarm mode | Sound, light, vibration |
Housing Material |
ABS+ leather case |
| Dimensions | 131*83*35mm | Weight |
240g |
Characteristics
Employ original imported high-precision sensor.
Four random gas sensors can be combined freely.
LCD dot matrix display, support Chinese and English operation.
The gas concentration unit PPM and mg/m3 can be shifted quickly.
The battery and voltage can be checked by one press.
One press to restore factory settings.
Ultra-high buzzer alarm sound, alarm with sound, light and vibration at the same time.
Can record 100 sets alarm data, alarm record can be checked on the device.
Data storage function, can record 100 thousand set data, historical data can be viewed on the device (optional function).
Rechargeable lithium polymer battery of large capacity, which ensure the device to work
continuously for a long time.
Strong and upscale alligator clip, convenient to take along during operation.
Special engineering plastics housing of high intensity, strong and durable, exquisite and comfortable in touching.
