| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | CNEX, ISO9001, CE |
| Model Number: | YT-1200H-S-EX |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Color paper box |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 pieces/week |
| Detected Gas: | Flammable Gas | Measure Range: | 100%LEL |
|---|---|---|---|
| Ampling Method: | Diffusion | Alarm Type: | Sound, Light, Vibration |
| Resolution: | 1%LEL | Packing: | Color Paper Box |
| High Light: | industrial gas monitors,gas measuring device |
||

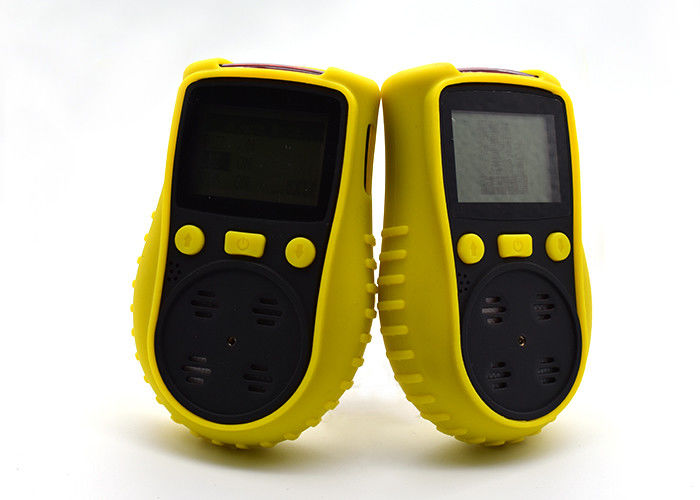

Handheld LPG Single Gas Detector To Measure Flammable Gas With 100% LEL
The flammable gas is the most common hazardous gas in mines – especially in coal mines, where large pockets may be present. Methane, one of the combustible gas which is lighter than air, tends to rise to the ceiling of a mine or tunnel leaving it virtually undetectable to the senses. Methane can cause injury or death by asphyxiation, when it is in high concentrations, or by exploding when ignited by a flame or spark. The sensors inside the YuanTe detectors can detect up various combustible gas, which can display accurate data.
Specifications
| Gas Detected | Flammable gas | ||
| Detection principle | Catalytic Combustion | ||
| Sampling Method | Diffusion | ||
| Measure Range | 100%LEL | ||
| Resolution | 1%LEL | ||
| Precision | ≤± 3% F.S. | ||
| Signal Output | High-speed data transmission by USB, available for data downloading and printing (optional function) |
||
| Charging Time |
4~6h |
Working Time | 14h |
|
Battery |
3.7V |
Capacity |
2300mAh |
| Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃~50℃ | Humidity | 0-95%RH |
| Explosion-Proof | ExiaⅡCT3 | Degree of protection | IP65 |
| Alarm mode | Sound, light, vibration |
Housing Material |
ABS+ leather case |
| Dimensions | 131*83*35mm | Weight |
240g |
Product overview
YT-1200H-S series gas detector is kind of mini size and high accuracy portable multi gas detector. Easy to operate, comprehensive functions, can measure 4 common gas hazards: carbon monoxide, hydrogen sulphide, flammable gases and oxygen depletion, other multi gases are available for customization. The detector is with back clip , protected by silicone case, suitable for different kinds of situations.
