Fixed Real Time Monitoring Single Gas Detector 4 - 20mA Output H2 Hydrogen Sensor

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CE CNEX ISO9001-2015
Model Number: YT-95H-H2
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 500PCS/DAY
Detail Information
Detected Gas: H2, Hydrogen Measure Range: 0-20ppm, 0-1000ppm,0-2000ppm, 0-5000ppm,0-1%VOL, 0-2%VOL, 0-4%VOL, 0-100%VOL, 0-100%LEL
Color: Blue Packing: Paper Box
Install Method: Wall-mounted, Piping-type, Flow-type Power: 12-36Vdc
High Light:

gas measuring device

,

gas leak detector


Product Description



Fixed Real Time Monitoring Single Gas Detector 4-20mA Output H2 Hydrogen Sensor



Hydrogen gas is lighter than air and is also a highly flammable gas. So customers usually need to detect its low explosion limit and detect the ppm or VOL concentration as well. They usually detect in battery warehouse,H2 gas cylinder houses or other experiments centers.



Funtions:

1. Monitor the H2 Hydrogen gas in environment or pipeline.

2. With self-calibration and zero calibration function, makes the detection more accurate and reliable.

3. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.

4. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification. (optional)

5. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices. (optional)

6. Working Voltage:24V DC

7. Case: die-cast aluminum



Specification

Gas detected

H2, Hydrogen

Detection principle

Electrochemistry, Catalytic combustion, Thermal Conductivity

Install method

Wall-mounted, piping type, flow-type (according to the detected environment)

Measure range

0-20ppm, 0-1000ppm,0-2000ppm, 0-5000ppm,0-1%VOL, 0-2%VOL, 0-4%VOL, 0-100%VOL, 0-100%LEL etc

Resolution

0.001ppm, 0.01ppm, 0.1ppm, 1ppm, 0.01%VOL, 1%LEL

Precision

≤± 1% FS or ± 2-3% FS

Signal output

4-20mA, 0-5V, RS485, relay(optional)

Response time

≤10S

Recovery time

≤10S

Repeatability

≤±1%

Linearity error

≤±1%

Zero shift

≤±1%(FS/year)

Display

High-light nixie tube display

Connection mode

G1/2 external thread explosion-proof flexible pipe

Unit

ppm

Temperature

-20 to 50°C

Humidity

0-95%RH

Explosion-proof

Ex dⅡCT6

Degree of protection

IP65

Alarm

Sound, light

Operating time

24H

Dimensions

180*150*90mm

Weight

≤2kg



Characteristics:
1. Standard equipped with three-wire system 4-20mA analog output; relay output; RS485 output.

2. Unique infrared ray control function, which can non-contacted control the device.

3. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.

4. Explosion-proof design, fast, reliable and stable.

5. Explosion-proof grade: Ex dⅡCT6

6. With self-calibration function, and three standard keys will be used to realize on-site maintenance.

7. Detachable probe/gas cell: It is very easy to calibrate and replace sensor





Application

  1. Petrochemical industry, industrial manufacture, smelting, electricity, coal mining, tunneling, environment monitoring, waste water treatment.
  2. Bio-pharmaceutical plant, green household, livestock breeding, green house cultivating, warehouse logistics, brewing and fermentation, agricultural production.
  3. Fire control, fuel gas, building, municipal enterprise, school lab, research centre.

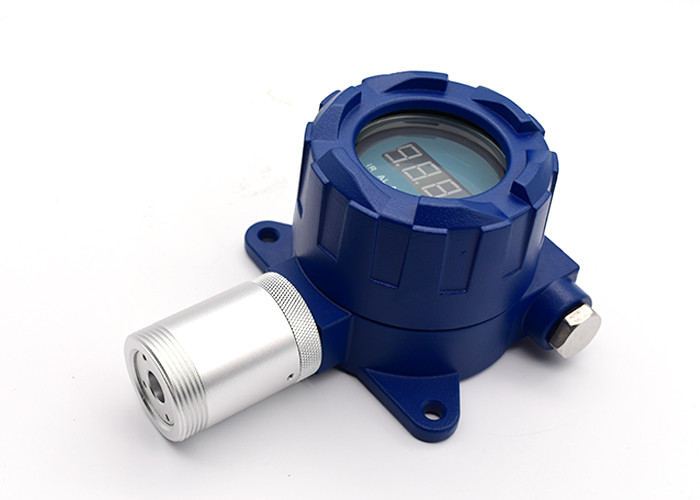

Fixed Real Time Monitoring Single Gas Detector 4 - 20mA Output H2 Hydrogen Sensor 0
