Fixed Helium He Gas Detector Single Gas Detector With 4 - 20ma And RS485 Signal Output

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CE CNEX ISO9001-2015
Model Number: YT-95H-He
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 500PCS/DAY
Detail Information
Detected Gas: Helium He Measure Range: 0-100%VOL
Color: Blue Packing: Paper Box
Install Method: Wall-mounted, Piping-type, Flow-type Power: 12-36Vdc
High Light:

industrial gas monitors

,

gas measuring device


Product Description

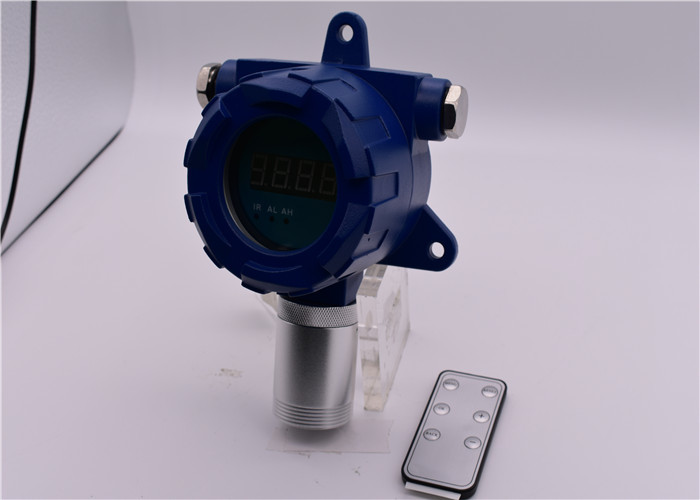

Fixed Helium He Gas Detector Single Gas Detector With 4~20ma And RS485 Signal Output

Application area are widely used in military, scientific research, petrochemical, refrigeration, medical, semiconductor, pipeline leak detection, superconducting experiments, metal manufacturing, deep sea diving, High-precision welding, production of optoelectronic products, etc. Our gas detector can used in different environment.

Specification

Gas detected

Helium He

Detection principle

Thermal Conductance

Install method

Wall-mounted, piping type, flow-type (according to the detected environment)

Measure range

0-100%VOL

Resolution

0.01%VOL

Precision

≤± 2% FS

Signal output

4-20mA, 0-5V, RS485, relay(optional)

Response time

≤10S

Recovery time

≤10S

Repeatability

≤±1%

Linearity error

≤±1%

Zero shift

≤±1%(FS/year)

Display

High-light nixie tube display

Connection mode

G1/2 external thread explosion-proof flexible pipe

Unit

ppm

Temperature

-20 to 50°C

Humidity

0-95%RH

Explosion-proof

Ex dⅡCT6

Degree of protection

IP65

Alarm

Sound, light

Operating time

24H

Dimensions

180*150*90mm

Weight

≤2kg


Characteristics:
1. Standard equipped with three-wire system 4-20mA analog output; relay output; RS485 output.

2. Unique infrared ray control function, which can non-contacted control the device.
3. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
4. Explosion-proof design, fast, reliable and stable.
5. Explosion-proof grade: Ex dⅡCT6
6. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
7. Detachable probe/gas cell: It is very easy to calibrate and replace sensor

Funtions:
1. Monitor the Helium He gas in environment or pipeline.
2. With self-calibration and zero calibration function, makes the detection more accurate and reliable.
3. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
4. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification. (optional)
5. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices. (optional)
6. Working Voltage:24V DC
7. Case: die-cast aluminum

Fixed Helium He Gas Detector Single Gas Detector With 4 - 20ma And RS485 Signal Output 0

FAQ

Q: Does your company accept customization?
A: We do customizing service for customers. OEM/ ODM is welcome.

Q: Are you trading company or manufacturer?
A: Yuante Instrument is an ISO9001-2015 approved manufacturer with around 10 years experiences.

Q: What’s the MOQ?
A: 1 pc is availble for customers to test our quality and services.

Q: How long is Yuante's lead time?
A: It depends on your purchasing quantity, it's 2~3 workdays after payment generally.

Q: What about the Shipment?
A: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.

Q: What about after-sale service?
A: 12 months warranty for all kinds of products;
