|Place of Origin:||China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Aluminum Suitcase|
|Delivery Time:||3-5 working days|
|Payment Terms:||Western Union, T/T|
|Supply Ability:||1000 pieces/week|
|Detected Gas:||H2||Measure Range:||0-500ppm、1000ppm、2000ppm, 30000ppm、40000ppm, 0-10%VOL、20%VOL、50%VOL、100%VOL、99.999%VOL|
|Sampling Method:||Pumping Suction||Alarm Type:||Sound, Light, Vibration|
|Charging Method:||Power Adapter, USB Cable||Packing:||Corrosion Resistant Suitcase|
|Resolution:||0.001ppm, 0.01ppm, 1ppm|
gas measuring device,
gas leak detector

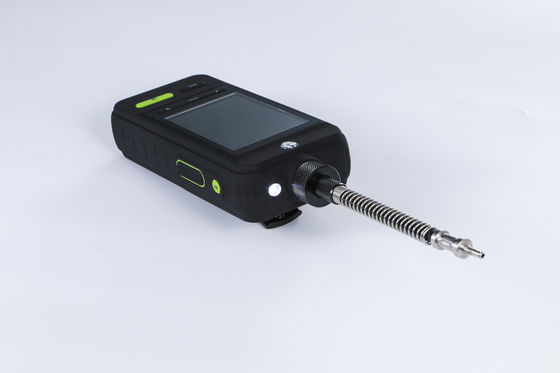

Flashlight Function Hydrogen Single Gas Detector H2 Gas Detector Smaller And Lighter For Easily Carry
Hydrogen gas is lighter than air and is also a highly flammable gas. So customers usually need to detect its low explosion limit and detect the ppm or VOL concentration as well. They usually detect in battery warehouse,H2 gas cylinder houses or other experiments centers.
|Sampling Method||Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.|
|Measure Range||0-500ppm,1000ppm,2000ppm, 30000ppm,40000ppm, 0-10%VOL,20%VOL,50%VOL,100%VOL,99.999%VOL|
|Resolution||0.001ppm, 0.01ppm, 1ppm|
|Precision||≤± 2% F.S.|
High-speed data transmission by USB, available for data downloading and
|Response Time||≤10S||Recovery Time||≤10S|
|Network frequency||2.4G high frequency||Pressure measurement||0.5-2.0 bar (optional)|
|Zero shift||≤±1%(F.S/year)||Display||LCD dot matrix display|
|Operating language||Chinese/English||Gas unit||Units are switchable|
|Explosion-Proof||Ex ic IIC T3 Gc||Degree of protection||IP65|
|Alarm mode||Sound, light, vibration||Operating time||100h(pump off)|
The Sky6000 Series Gas Detector is a Portable Equipment Which Can Be Used in Scientific Research, University, Complex Working Environment and so on. The Sky6000 Series Gas Detector Can Detect Up to Four Gases at The Same Time. It Can Fuse Electrochemistry, Catalysis, Thermal Conduction, Infrared, Photoion, Ultraviolet and Other Detection Principles. We are Committed to Providing Customers With The Most Reliable, Accurate and Safe Gas Detection Instrument.
Imported miniature vacuum suction pump from Germany: stable flow, long life, low noise, support remote sampling Equipped with three-layer filter to filter oil, water, dust and other impurities efficiently.
Gas concentration data display and gas concentration real-time curve display modes are switchable.
Pump flow rate can be adjusted with 10 grades, gas detection flow rate can be customized according to different testing environments.
Optional external Bluetooth printer, can realize mobile print(Optional function)
One-click screen capture function, save detection data, curve in image format
Bluetooth, ZIGBEE, WIFI, GPRS and other wireless communication modes are optional (Optional function)
