| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | CNEX,ISO9001,CE |
| Model Number: | SKY6000-Ar |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 pieces/week |
| Detected Gas: | Ar | Measure Range: | 0-100%VOL |
|---|---|---|---|
| Sampling Method: | Pumping Suction | Alarm Type: | Sound, Light, Vibration |
| Size: | 270*75*41mm | Weight: | 400g |
| Charging Method: | Power Adapter, USB Cable | Packing: | Corrosion Resistant Suitcase |
| Resolution: | 0.01%VOL | ||
| High Light: | industrial gas monitors,gas measuring device |
||

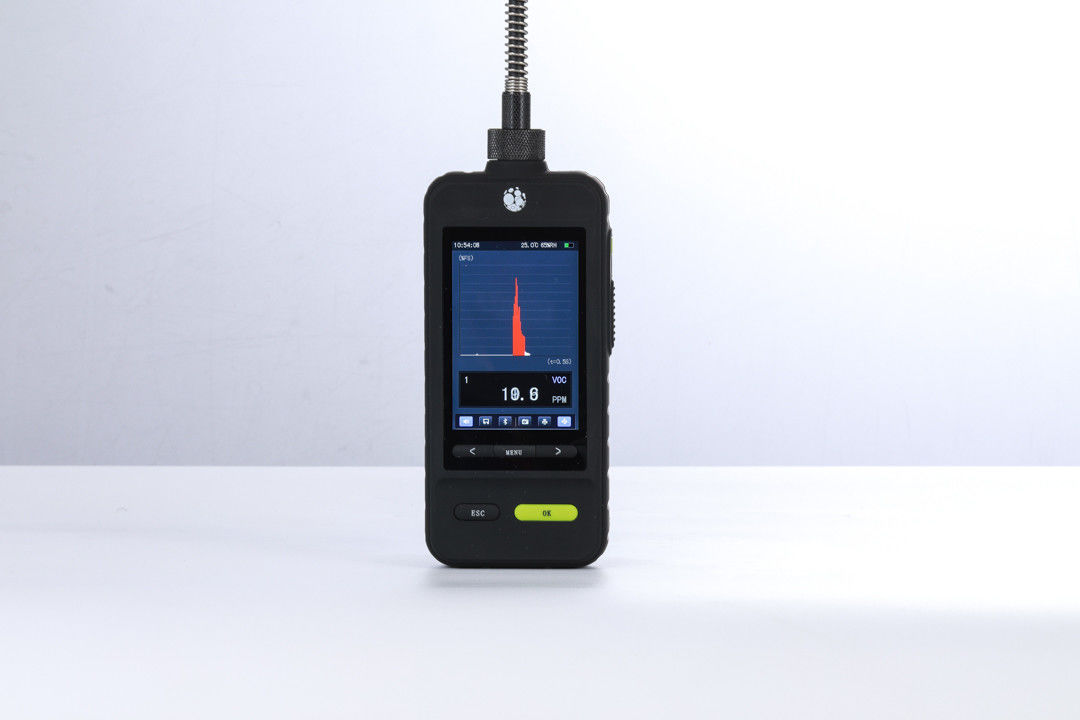

Flashlight Function Argon Single Gas Detector Ar Gas Detector Smaller And Lighter For Easily Carry
Argon is a colorless and odorless inert gas. It is slightly soluble in water. It is non-toxic under normal atmospheric pressure. When the concentration is high, the partial pressure of oxygen is lowered and suffocation occurs. It is a rare gas used as a shielding gas for arc welding (cutting) stainless steel, magnesium, aluminum, and other alloys.
The heat treatment process is also used to replace nitrogen and ammonia, and the effect is more than nitrogen and ammonia. When the stainless steel is heat treated, the argon gas is used to protect the bending effect better and not easy to break.
Widely used in petrochemical, industrial production, smelting and forging, electricity, coal, tunnel engineering, environmental monitoring, sewage treatment, bio-pharmaceutical, furniture environmental protection.
Pumping type ensures the stability of airflow and air pressure in the air chamber and improves the accuracy and stability of the product.
Our YuanTe focused on aggressively growing the company, superior quality and exceptional customer service.
Specifications
| Gas Detected | Ar | ||
| Detection principle | Electrochemistry | ||
| Sampling Method | Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. | ||
| Measure Range | 0-100%VOL | ||
| Resolution | 0.01%VOL | ||
| Precision | ≤± 2% F.S. | ||
| Signal Output |
High-speed data transmission by USB, available for data downloading and |
||
| Response Time | ≤10S | Recovery Time | ≤10S |
| Network frequency | 2.4G high frequency | Pressure measurement | 0.5-2.0 bar (optional) |
| Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃~50℃ | Humidity | 0-95%RH |
| Explosion-Proof | Ex ic IIC T3 Gc | Degree of protection | IP65 |
| Alarm mode | Sound, light, vibration | Operating time | 100h(pump off) |
| Dimensions | 270*75*41mm | Weight | 400g |
Product Overview
The Sky6000 Series Gas Detector is a Portable Equipment Which Can Be Used in Scientific Research, University, Complex Working Environment and so on. The Sky6000 Series Gas Detector Can Detect Up to Four Gases at The Same Time. It Can Fuse Electrochemistry, Catalysis, Thermal Conduction, Infrared, Photoion, Ultraviolet and Other Detection Principles. We are Committed to Providing Customers With The Most Reliable, Accurate and Safe Gas Detection Instrument.
Comprehensive Functions
Imported miniature vacuum suction pump from Germany: stable flow, long life, low noise, support remote sampling Equipped with three-layer filter to filter oil, water, dust and other impurities efficiently.
Gas concentration data display and gas concentration real-time curve display modes are switchable.
Pump flow rate can be adjusted with 10 grades, gas detection flow rate can be customized according to different testing environments.
Optional external Bluetooth printer, can realize mobile print(Optional function)
One-click screen capture function, save detection data, curve in image format
Bluetooth, ZIGBEE, WIFI, GPRS and other wireless communication modes are optional (Optional function)
