Sensor Type: | Electrochemistry | Model Number: | YT-1200HS-CO |
---|---|---|---|
Measure Range: | 0-100PPM, 0-500PPM, 0-1000PPM, 0-2000PPM, 0-5000PPM, 0-10000PPM | Resolution: | 0.1PPM, 1PPM |
Operating Language: | Chinese/English | Dimensions: | 131*83*35mm |
Weight: | 240g | Housing Material: | ABS+ Leather Case |
Highlight: | carbon monoxide sensor,handheld carbon monoxide detector |

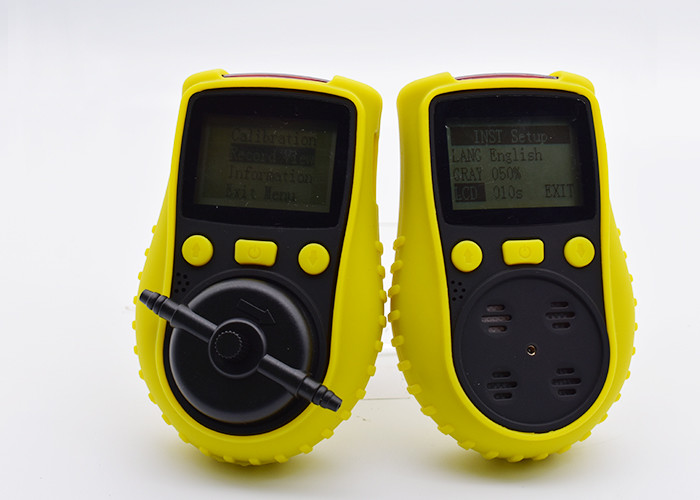

Anti Interference Portable CO Gas Detector With Back Clip And Leather Case
Carbon monoxide poisoning is the most common type of fatal air poisoning in many countries. Carbon monoxide is colorless, odorless, and tasteless, but highly toxic. It combines with hemoglobin to produce carboxyhemoglobin, which usurps the space in hemoglobin that normally carries oxygen, but is ineffective for delivering oxygen to bodily tissues. Concentrations as low as 667 ppm may cause up to 50% of the body's hemoglobin to convert to carboxyhemoglobin. A level of 50% carboxyhemoglobin may result in seizure, coma, and fatality. In the United States, the OSHA limits long-term workplace exposure levels above 50 ppm.
The most common symptoms of carbon monoxide poisoning may resemble other types of poisonings and infections, including symptoms such as headache, nausea, vomiting, dizziness, fatigue, and a feeling of weakness. Affected families often believe they are victims of food poisoning. Infants may be irritable and feed poorly. Neurological signs include confusion, disorientation, visual disturbance, syncope (fainting), and seizures
Product overview
Specification
Gas Detected | CO | ||
Detection principle | Electrochemistry | ||
Sampling Method | diffusion | ||
Measure Range | 0-100PPM, 0-500PPM, 0-1000PPM, 0-2000PPM, 0-5000PPM, 0-10000PPM | ||
Resolution | 0.1ppm, 1ppm | ||
Precision | ≤± 2% -5% F.S. | ||
Data recording |
Storage capacity of over one hundred thousand sets. Interval time ranges from 10-3600seconds are settable.(Optional function) |
||
Response Time | ≤10S | Recovery Time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%(F.S/year) | Display | Monochrome dot matrix display |
Operating language | Chinese/English | Gas unit | ppm, mg/m3,%VOL,%LEL |
Temperature | -20℃~50℃ | Humidity | 0-95%RH |
Explosion-Proof | ExiaⅡCT3 | Degree of protection | IP65 |
Alarm mode | Sound, light, vibration | Operating time | 14 hour continuously |
Dimensions | 131*83*35mm | Weight | 240g |
Charger | Travel charger with USB | Charging time | 4-6 hours |
Product Advantages
